The two base metals bring different chemistries and different thermal behavior to the joint. Get it wrong, and you're looking at cracking, corrosion, or a brittle weld that fails under load. Get it right, and the transition holds up for decades.
This guide answers the questions welders and engineers actually ask about filler metal, wire, gas, and process settings for stainless-to-carbon joints.
Key Takeaways
- 309L filler metal is the industry-standard choice for joining stainless to carbon steel
- Skip 7018 electrodes on this joint; use E309L stick instead
- Run TIG on DCEN with 100% argon shielding gas
- Preheat tracks carbon content, thickness, and joint restraint—not one fixed temperature
- Certified procedures matter most for pressure vessels, energy systems, and aerospace hardware
Can Stainless Steel and Carbon Steel Be Welded Together?
Yes. This is standard practice across construction, energy, and process industries. It just requires more deliberate technique than same-metal welding. The core issue is dilution. When you weld stainless to carbon steel, filler metal mixes with both base metals in the weld pool. The final weld chemistry has to be compatible with both sides, or you get problems. Specifically, carbon from the carbon-steel side can combine with chromium from the stainless side. This forms chromium carbides that reduce corrosion resistance right at the joint, exactly where durability matters most. There's a second complication: thermal mismatch. Stainless steel expands more and conducts heat less efficiently than carbon steel. During cooling, that mismatch creates internal stress, which raises the risk of distortion or cracking if the joint isn't designed with it in mind. None of this makes the joint impractical. ER309Si/309LSi is explicitly manufactured by Lincoln Electric as a solid rod for welding stainless steel to carbon steel, with listed applications in general fabrication, process industries, and chemical processing. This is routine, qualified work.
Choosing the Right Filler Metal and Wire

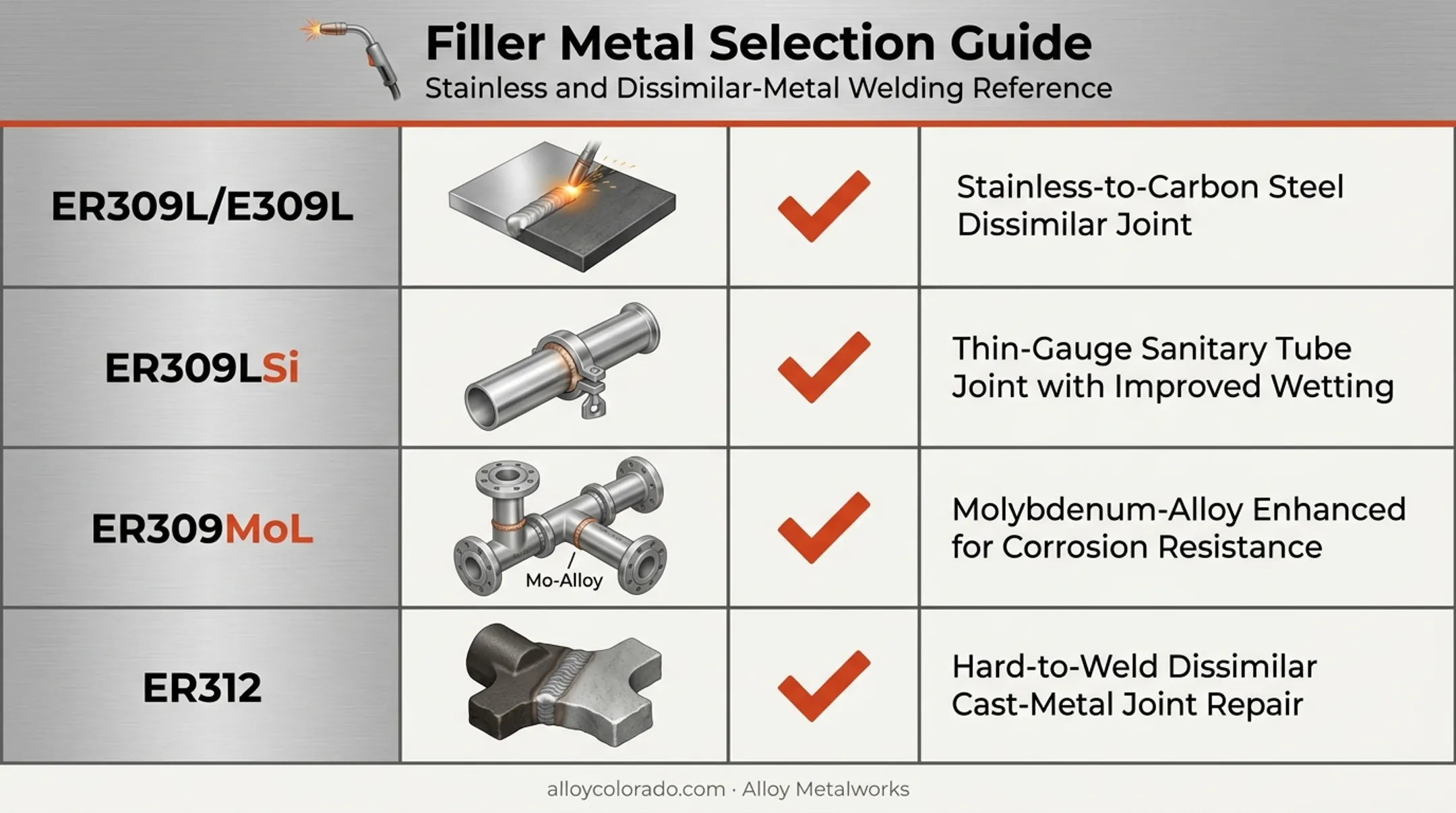

Filler selection drives most stainless-to-carbon weld outcomes. Use this comparison to match the joint:
| Filler | Best For | Notes |
|---|---|---|
| ER309L / E309L | Standard stainless-to-carbon joints | Higher alloy content tolerates dilution better than 308L |
| ER309LSi | MIG applications needing better wetting | Higher silicon improves bead flow |
| ER309MoL | Corrosive environments, molybdenum-bearing steel | Adds tensile strength and corrosion resistance |
| ER312 | High-dilution or hardenable steel joints | Maximum crack resistance; avoid above 800°F service |
Why Not 308L?
Standard 308L filler is a common mistake. Because of dilution from the carbon-steel side, the resulting weld chemistry can drop below roughly 17% chromium and 7% nickel. That composition range is prone to cracking. Manufacturer guidance is consistent on this point: do not use 308 to join austenitic stainless to plain carbon or low-alloy steel.
Can You Weld Carbon to Stainless With 7018?
Short answer: not ideally. 7018 is a low-hydrogen mild steel stick electrode. It's not designed for this dissimilar chemistry.
For stick welding (SMAW) on this joint, switch to a stainless electrode such as E309L. The higher-alloy deposit handles dilution from both base metals the same way 309-family MIG/TIG wire does.
What Wire Do You Use to Weld Stainless to Carbon Steel?
For MIG applications, ER309L or ER309LSi is the standard answer. Use the same 309 family recommended for TIG, supplied as solid wire for GMAW.
Practical defaults:
- Match or slightly exceed the mechanical properties of the weaker base metal
- Choose ER309L or ER309LSi when the joint type is unclear
- Reserve ER309MoL for corrosive or Mo-bearing service, and ER312 for high-dilution or hardenable steels
TIG Welding Stainless to Carbon Steel: Process Settings
TIG (GTAW) settings for stainless-to-carbon joints differ from aluminum work—and from what many welders first assume.
Do You TIG Weld Stainless on AC or DC?
DC Electrode Negative (DCEN), also called straight polarity. This applies to stainless steel generally, including this dissimilar combination. Aluminum needs AC because of its oxide layer; stainless does not, so DCEN is the standard starting point. Always confirm against your qualified WPS.
Can You TIG Weld With 75% Argon and 25% CO2?

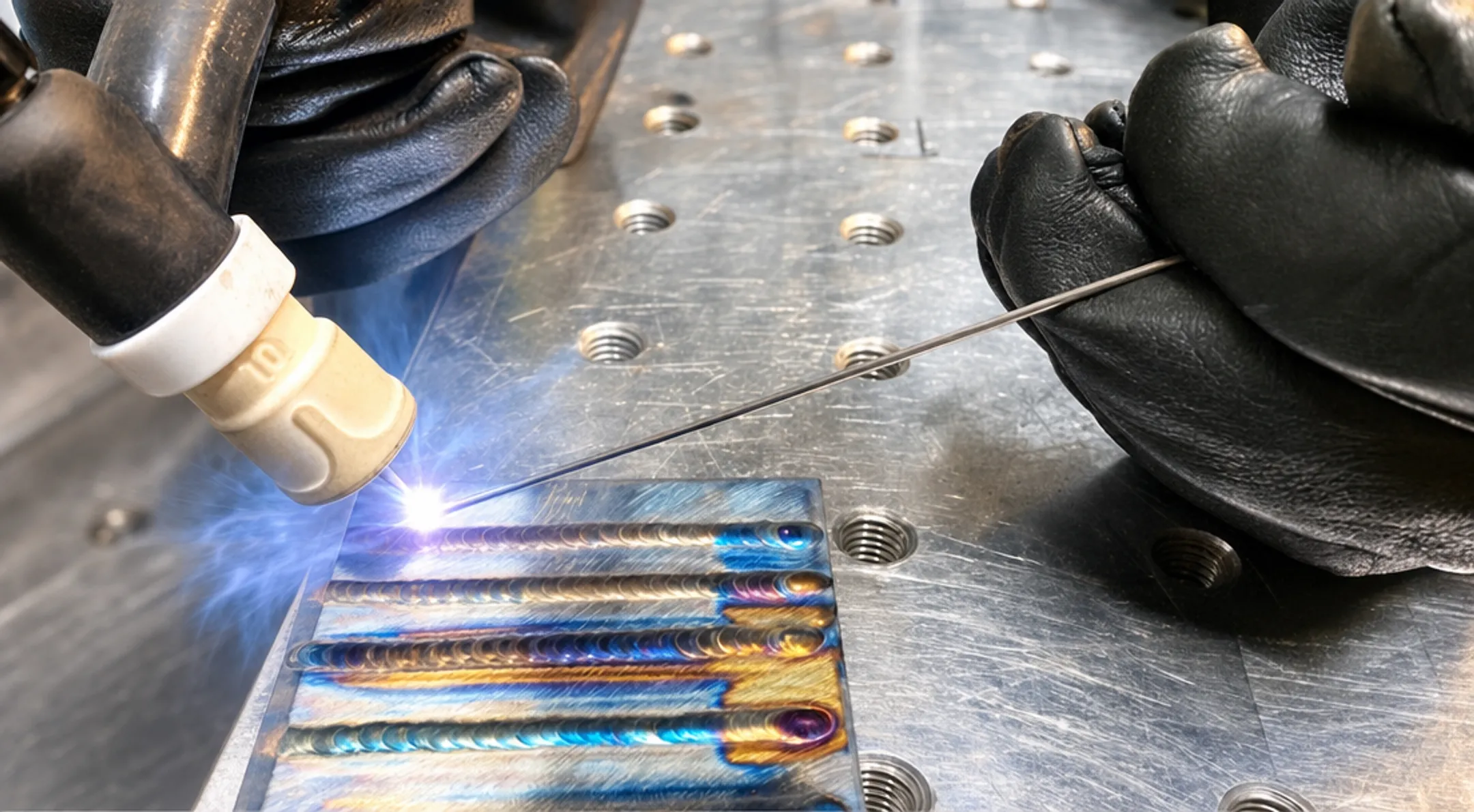

No. That gas mix belongs to MIG welding, not TIG. For TIG welding stainless-to-carbon joints, 100% argon is the standard shielding gas. It gives a cleaner, more controlled arc than any CO2 blend.
Other settings that protect the joint:
- Back purge open roots with inert gas to prevent oxidation on the stainless side and protect corrosion resistance at the root
- Match tungsten and amperage to the thinner side of the joint — usually the stainless — to avoid overheating it
- Keep travel speed consistent to control heat buildup in the heat-affected zone (HAZ)
Alloy Metalworks' shop practice backs the same point. Excess heat or weak shielding depletes alloys and oxidizes the stainless passive layer.
Once that layer is compromised, corrosion resistance fails right where the joint needs it most.
Preventing Cracking, Distortion, and Corrosion Issues
Three risks dominate this joint: cracking, distortion, and corrosion. All three trace back to heat control and cleanliness.
Heat Input and Dilution
Controlled heat input limits dilution and reduces the risk of carbide precipitation or sigma-phase formation in the stainless. Keep interpass temperatures within your qualified range, and don't overwork the weld pool with excessive passes.
Joint Prep Matters More Than You'd Think
- Grind back mill scale and coatings at least ½ inch on each side of the joint
- Clean with solvent to remove oils, coatings, and contaminants that cause hot cracking
- Never share abrasives between carbon steel and stainless; particles from carbon steel discs embed in stainless and trigger corrosion later
- Dedicate and label grinding discs and Scotch-Brite pads separately
When Does Preheat Matter?
Preheat isn't automatic. It becomes necessary with:
- Carbon steel above roughly 0.20% carbon content
- Thick sections or high-restraint joints
- Prior cracking history in similar joints There's no single universal number. The applicable code and actual joint chemistry drive the calculation. Benchmarks around 300°F (150°C) are common for thicker or higher-carbon dissimilar joints. On the stainless side, keep interpass under about 350°F (175°C) to avoid sensitization.
When Precision Matters: Bringing in a Certified Welding Partner
General shop welding can handle low-stakes dissimilar joints just fine. A handrail bracket or a non-pressurized transition piece doesn't need the same rigor as flight hardware.
But applications in aerospace, energy infrastructure, and pressure vessel systems are a different story. These need documented, code-compliant procedures, not just a welder who's done it before.

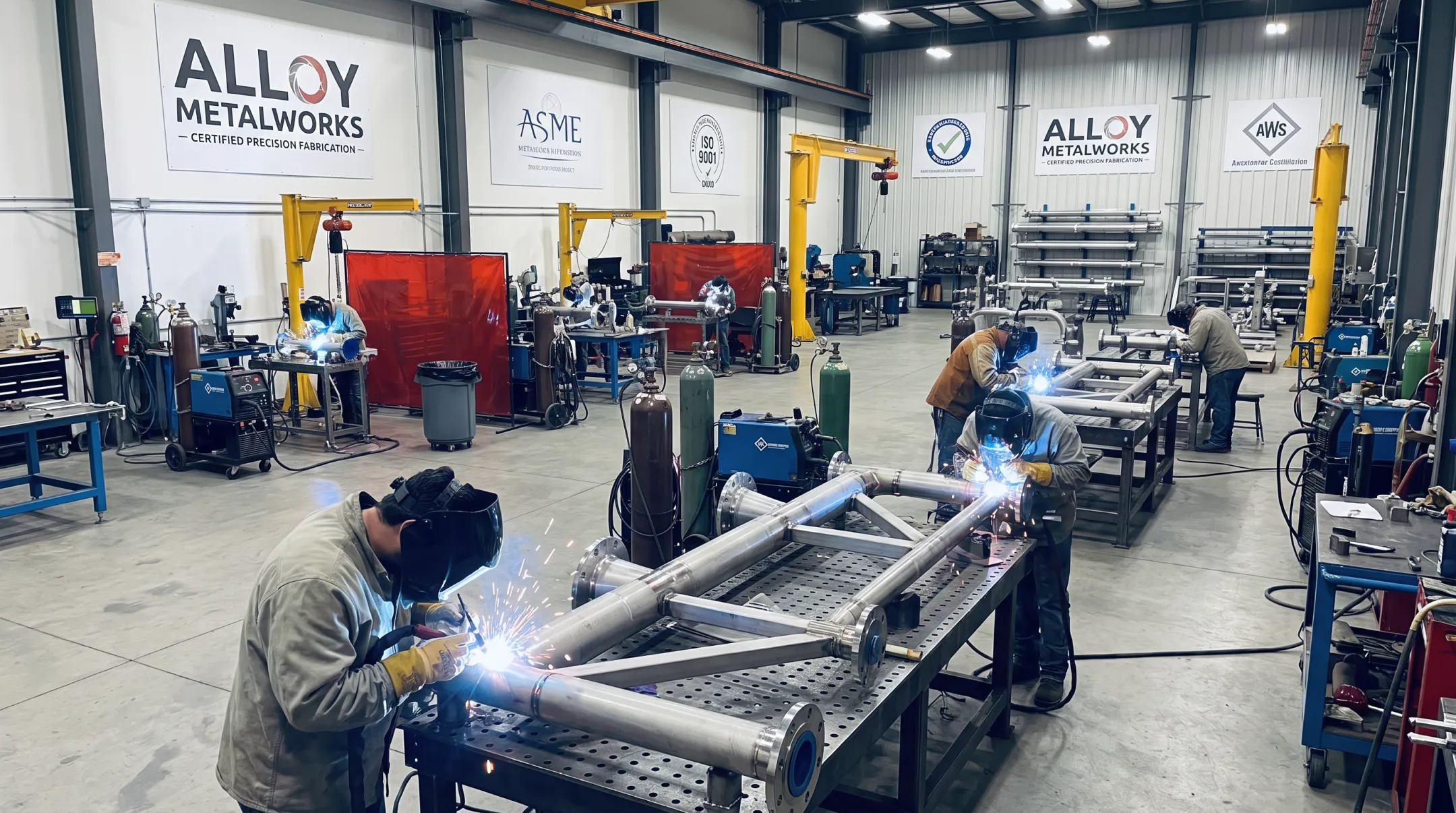

That's where a certified partner earns its keep. Alloy Metalworks develops and qualifies welding procedures under ASME Section IX and works within AWS structural welding codes, covering exotic and dissimilar metal combinations including stainless-to-carbon transitions.
Material capabilities include:
- 304, 316, 347, 17-4, and 15-5 stainless
- Duplex and super duplex stainless
- Nickel alloys such as Inconel and Hastelloy
- Combinations of these alloys with carbon steel in the same assembly
For regulated projects, inspection-ready documentation and traceability aren't paperwork for its own sake. They reduce downstream rework risk, which matters far more once a part is installed in a pressure system or flight assembly than it does on a shop floor.
If your project touches aerospace, energy infrastructure, or any pressure-rated system, reach out to Alloy Metalworks to talk through weld procedure development for your dissimilar-metal joint.
Frequently Asked Questions
Can stainless steel and carbon steel be welded together?
Yes, this is established industrial practice. It requires proper filler metal selection, typically ER309L or E309L, along with controlled heat input and joint prep to manage dilution.
Can you weld carbon to stainless with 7018?
Not ideally. 7018 is designed for mild steel, not this dissimilar joint. For stick welding, use E309L stainless electrode instead.
What wire do you use to weld stainless to carbon steel?
ER309L or ER309LSi is the standard choice for both MIG and TIG applications. It tolerates dilution from both base metals better than standard 308L.
Do you TIG weld stainless on AC or DC?
DC Electrode Negative (DCEN). This differs from aluminum, which requires AC to break up its oxide layer.
Can you TIG weld with 75% argon and 25% CO2?
No. That mix is for MIG welding. TIG welding stainless-to-carbon joints should use 100% argon shielding gas for a cleaner, more stable arc.
What preheat temperature is needed for welding stainless to carbon steel?
Preheat is generally unnecessary below about 0.20% carbon content. For thicker or high-carbon joints, temperatures around 300°F are common, based on the governing code and joint restraint.
