For metal-intensive industries like aerospace, energy, and research equipment, this moment carries extra weight. NASA's Systems Engineering Handbook notes that roughly 15% of program costs get spent during design, but design decisions commit 75% of life-cycle costs — and postponing testing until later stages creates significant redesign expense. Prototypes are how you catch problems while they're still cheap to fix.
Generic 3D printing or plastic prototyping can validate shape and rough fit. But when your prototype needs to hold pressure, survive 700°C, or fly, you need precision welding and specialty alloy expertise that plastic and standard additive processes simply can't deliver.
This guide covers prototype manufacturing basics, how to pick a process, how to choose a fabrication partner, and what happens after your prototype works.
Key Takeaways
- Validate design, material choice, and manufacturability in prototype before you scale to production
- Match the process—CNC, 3D printing, sheet metal, casting, or precision welding—to geometry, material, and volume
- An engineering-aware, certified fabricator cuts rework risk and keeps regulated builds inspection-ready
- Flight-critical, sanitary, or high-pressure metal prototypes require code-compliant welding and full traceability
What Is a Manufacturing Prototype?
A manufacturing prototype is a pre-production build used to test a design before committing to volume production. It answers three questions: Does it work? Can we build it? Does it hold up?
Prototypes exist on a spectrum:
- Proof-of-concept builds — rough, fast, meant to test one idea
- Functional prototypes — built to test performance under real conditions
- Pre-production units — matching final materials, tolerances, and processes
NASA's Systems Engineering Handbook describes similar tiers through its "product form" framework, ranging from mock-ups to engineering units that mature alongside the design.
The National Academies' Technology Readiness Level definitions go further: high-fidelity prototypes address critical scaling issues in a relevant operating environment, not just a bench test.
A concrete example is a welded chemical reactor test vessel built to validate flow, seal integrity, and thermal performance before a batch run.
Alloy Metalworks built a component from Alloy 800HT for NREL, designed to operate above 700°C and mix three separate process streams at the front end of a thermochemical reactor. That's the kind of prototype where "close enough" doesn't cut it. The metallurgy and the weld quality are the whole point.
Types of Prototype Manufacturing Processes
Choosing a process starts with understanding what each one is actually good at.
CNC Machining
CNC machining cuts a prototype from a solid block of metal or plastic using programmed tool paths. Protolabs describes this as true subtractive manufacturing, ideal when your prototype needs tight tolerances and must represent final machined geometry. It suits precision metal components that don't require welded joints.
Additive Manufacturing (3D Printing)
Additive covers several distinct technologies:
- FDM: extruded thermoplastic filament, good for cheap form-check parts
- SLA: resin-based, high detail, still plastic
- SLS: thermoplastic parts strong enough for some functional testing
- Metal AM: layer-by-layer builds from metal powder melted by a laser (per NIST); strong for complex geometries that are hard to machine or weld Metal AM has real aerospace credibility: NASA printed a rocket igniter joining copper alloy and Inconel using a hybrid AM process. But it's not a universal replacement for welding, especially where weld-procedure qualification and long-term material behavior matter more than geometric complexity.
Sheet Metal Fabrication & Precision Welding

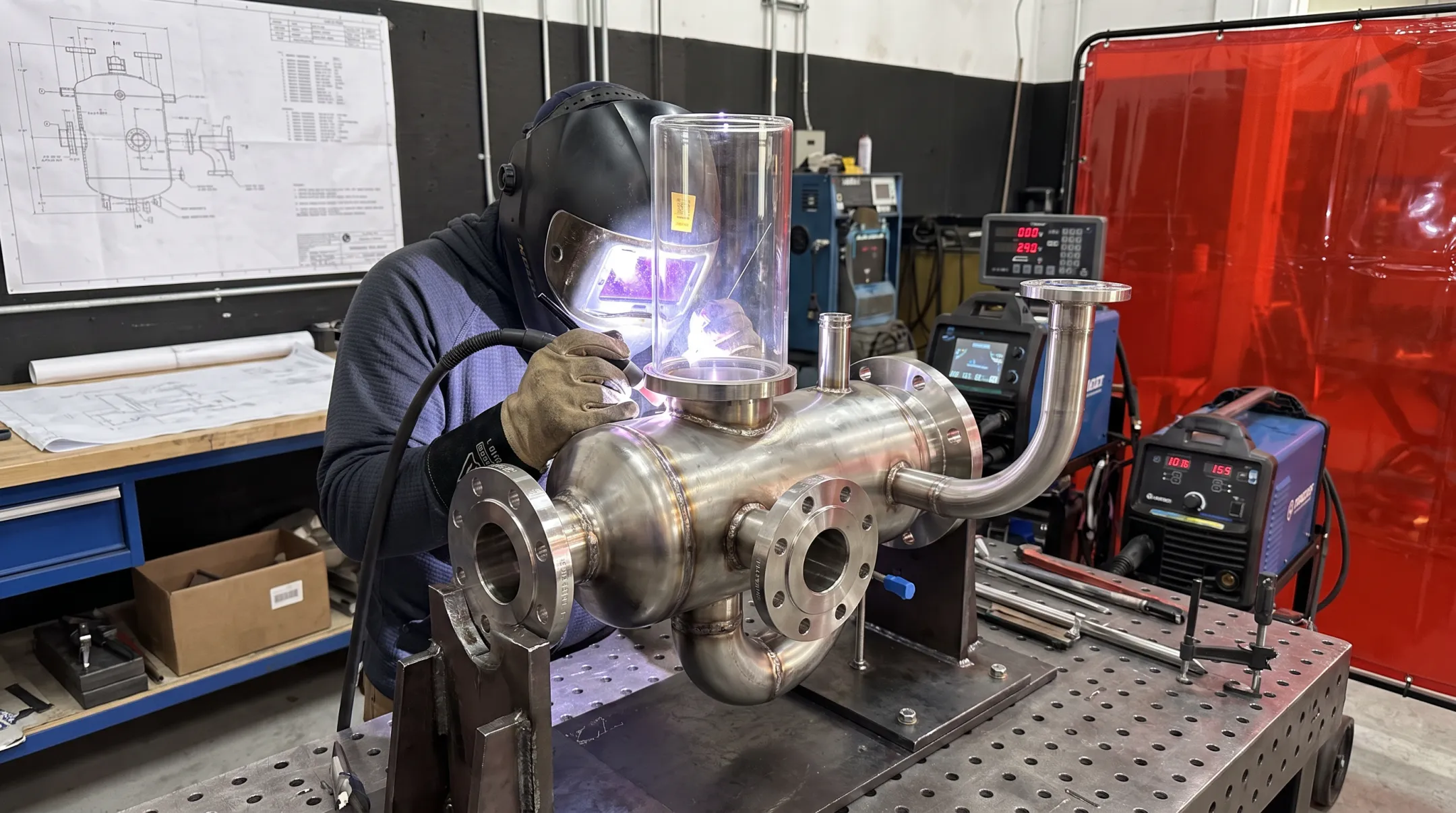

This is where structural, pressure-bearing, and flight-critical prototypes live. Sheet metal fabrication forms and joins metal into functional assemblies; precision welding adds the joint integrity needed for pressure vessels, piping, and load-bearing structures. This is Alloy Metalworks' core territory. The team welds Inconel 600, 601, 617, 625, and 718, Hastelloy, Incoloy 800HT, and titanium Grades 2 and 7. These are alloys where additive and plastic methods fall short, because the application demands proven weld metallurgy, not just geometric accuracy. Titanium prototypes, for instance, need custom inert gas chambers and purge setups to prevent oxidation during welding. That control lives on the shop floor, not in printer settings.
Casting & Injection Molding

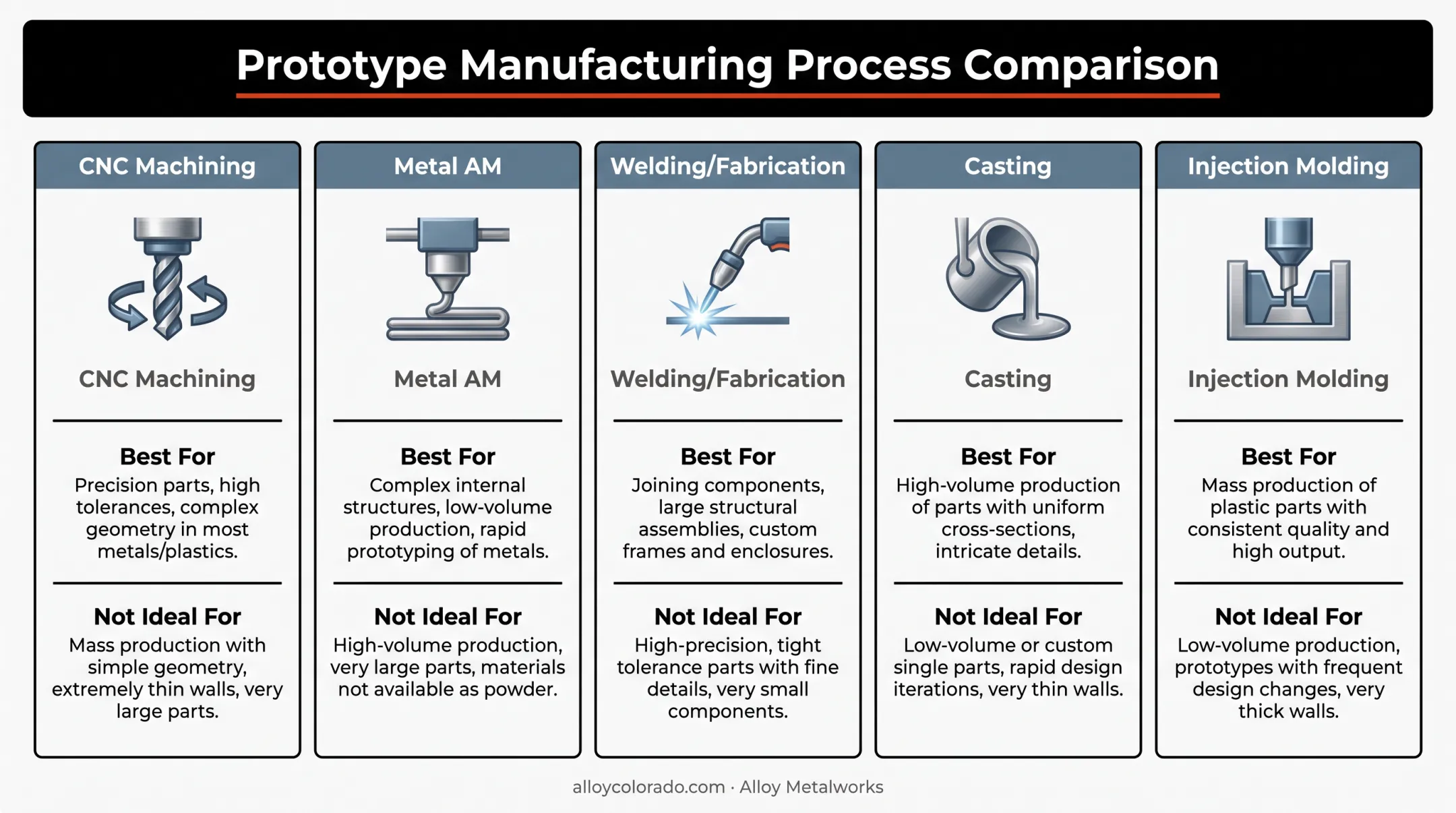

Casting and injection molding suit higher-volume runs better than one-off builds. Investment casting handles complex metal geometries with fine detail; injection molding is strictly a plastic-part process, regardless of the metal mold used to make it. Quick comparison:
| Process | Best for | Not ideal for |
|---|---|---|
| CNC machining | Tight-tolerance metal/plastic parts | Complex internal geometries |
| Metal AM | Complex shapes, rapid iteration | Long-term material qualification |
| Welding/fabrication | Structural, pressure, flight-critical builds | Small delicate geometries |
| Casting | Complex cast-metal shapes, mid-volume | One-off low-volume prototypes |
| Injection molding | High-volume plastic parts | Any metal-material validation |
How to Choose the Right Prototype Manufacturing Process
Match the Process to What You're Actually Testing
Ask what the prototype needs to prove:
- Cosmetic — looks and fit only? 3D printing usually wins.
- Functional — needs to perform under load, heat, or pressure? You need process and material fidelity.
- Regulatory — heading toward certification? You need documented welding procedures and traceable materials from day one.
Balance Cost, Lead Time, and Material Availability
There's no universal price chart here, and be suspicious of anyone who hands you one. A few patterns hold up:
- CNC cost climbs with tighter tolerances, since that demands more machining time and manual inspection (Hubs).
- 3D printing cost depends on design complexity, material, and post-processing, not just print time.
- Welded fabrication cost tracks labor, equipment time, and quality-control requirements — complex joints eat more of all three (TQ Fab).
Get a project-specific quote. Generic price ranges rarely survive contact with a real drawing.
Material Selection Is Process Selection
If your prototype needs Inconel or titanium, you've already narrowed your process options. High-performance alloys often rule out plastic-based methods entirely and push you toward CNC or welded fabrication. Material choice sets the process.
Finding the Right Prototype Manufacturing Partner
Quality System Alignment
A partner working to the same standards you need reduces miscommunication before it starts. Look for:
- ISO 9001 — documented, repeatable quality processes (ISO)
- ASME Section IX — qualified welding procedures for pressure systems (ASME)
- AWS D17.1 — aerospace welding code covering fabrication and inspection
- FAA Part 145 — relevant specifically for certificated repair-station work
Engineering-Aware Collaboration
A good fabricator doesn't just build to a drawing. Alloy Metalworks' approach starts by reviewing the design concept with a client's engineers before fabrication begins — flagging weld-joint issues, heat-distortion risk, and contamination concerns early, rather than discovering them mid-build.
Alloy Metalworks holds ISO 9001, ASME Section IX, AWS D17.1 Class A, and FAA Part 145 QMS, supporting prototype-to-small-batch fabrication for aerospace, energy, and research clients across Colorado. That combination matters because:
- Documentation and material traceability carry through from prototype to certification
- Welder qualification and procedure records are already in place, not created after the fact
- Inspection methods (visual, magnetic-particle, dye-penetrant, borescope) are built into the process, not bolted on
For regulated industries, audit-ready documentation is what lets your prototype's results mean something to an inspector or certifying body later.

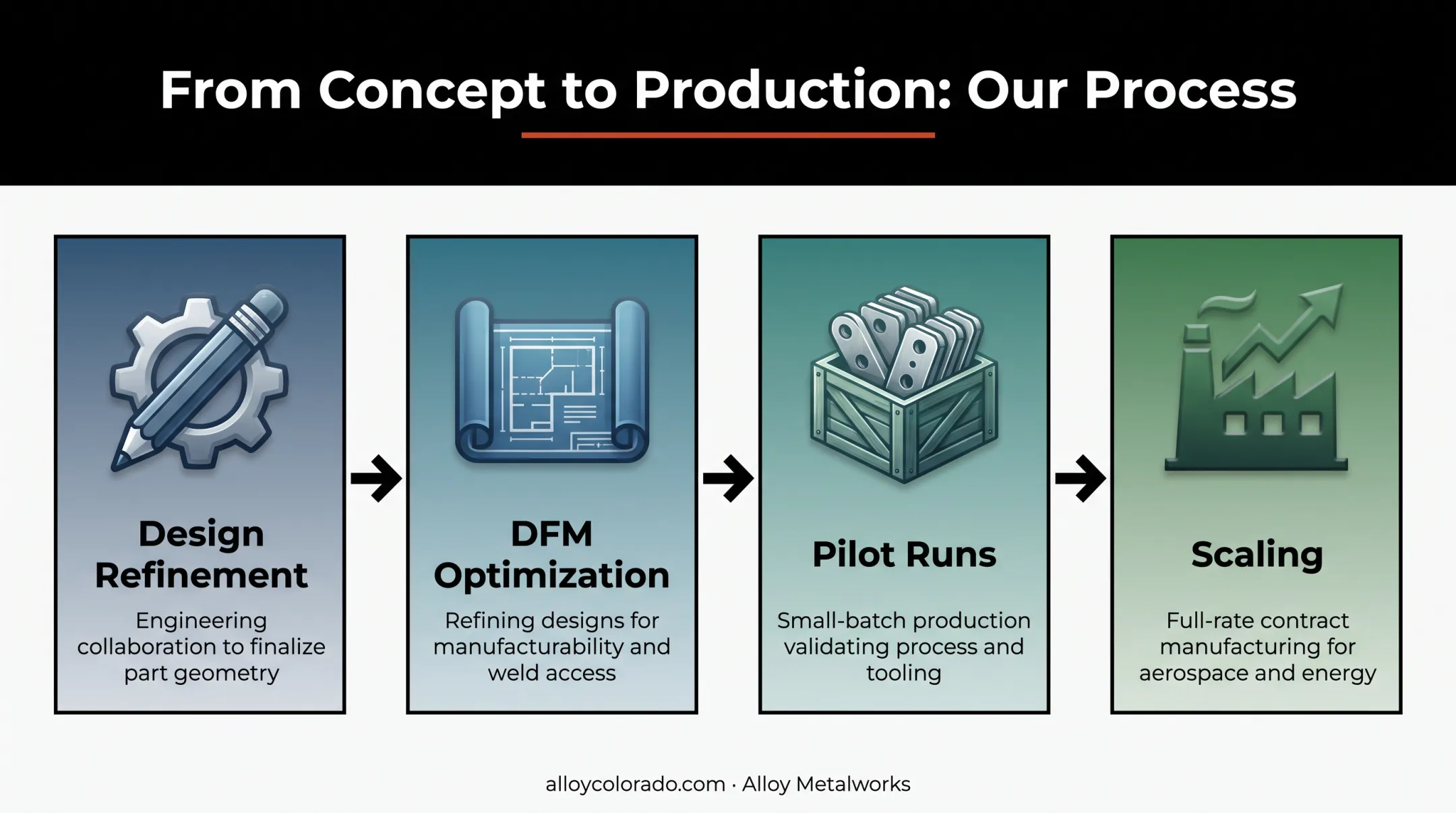

From Prototype to Production
A successful prototype triggers a predictable sequence:
- Design refinement — closing gaps the prototype exposed
- DFM optimization — adjusting the design for manufacturability at volume, not just function (Aerospace Manufacturing and Design)
- Pilot runs — small controlled batches to prove repeatability
- Scaling — locking in processes, materials, and quality controls for volume
Scaling introduces its own risks. NIST warns that consistent additive-manufactured part properties require input materials with known, repeatable characteristics, and that qualifying AM parts can require thousands of individual tests. Welded fabrication faces a parallel challenge: a process proven manually on a bench doesn't automatically transfer to volume.
Alloy Metalworks encountered exactly this while developing a shop-made orbital welding system for Inconel 617. The team manually optimized welding parameters first, then transferred those settings into automated equipment to improve repeatability at scale. That turned prototype-stage welding knowledge into production-ready automation.
A partner capable of both prototyping and small-batch or production work smooths this transition. You're not re-explaining your material requirements or re-qualifying weld procedures with a brand-new vendor halfway through the program.
Frequently Asked Questions
How much does it cost to manufacture a prototype?
Costs vary widely based on material, process, complexity, and quantity; there's no reliable universal price range. Request a project-specific quote once your design and material are settled.
How do I get my prototype manufactured?
Finalize your design file, select a process and material suited to what you're testing, then bring the design to a qualified fabricator for review before the build starts.
What are the main types of manufacturing prototypes?
Prototypes generally fall into proof-of-concept builds, functional prototypes, and pre-production units matching final materials and tolerances. Each serves a different validation goal.
What comes after a prototype?
Successful prototypes move into design refinement, DFM optimization, and pilot runs before scaling into full production, ideally with the same fabrication partner.
Which manufacturing processes are used for prototypes?
CNC machining, additive manufacturing (3D printing), sheet metal fabrication and welding, casting, and injection molding cover most prototype needs.
What is an example of a manufacturing prototype?
A welded reactor test vessel built to validate flow and thermal performance before batch production is one real example. Alloy Metalworks built an Alloy 800HT component for NREL rated above 700°C.
