Demand for this process keeps climbing as component miniaturization accelerates across sectors. Micro TIG welders, sometimes called pulse arc welders, use dramatically lower amperage and finer control than conventional TIG equipment. The result: welds precise enough for a sensor lead or a titanium implant, without warping the surrounding material.
This article breaks down how micro TIG works, which metals and industries benefit most, and what separates a hobbyist setup from code-compliant, inspection-ready welding.
Key Takeaways
- Uses low amperage and fine filler wire for precise, low-heat welds on small or delicate parts
- Shrinks heat-affected zones, distortion, and thermal damage versus conventional welding
- Fits aerospace, medical device, electronics, jewelry, and mold/die repair work
- Relies on operator skill and documented procedures, not equipment alone, for compliance
What Is a Micro TIG Welder and How Does It Work?
A micro TIG welder generates a controlled plasma discharge between a tungsten electrode and the workpiece. Energy stored in a capacitor bank releases in milliseconds, creating enough heat to melt a tiny, precise spot without an extended arc dwell time. According to Sunstone Welders, the tungsten is withdrawn from the surface immediately after discharge to form the weld spot. Some units, called linear systems, go further. They shape the voltage and current into defined segments using high-frequency switching, rather than simply releasing stored capacitor energy in one burst. This lets an operator dial in a low peak current sustained slightly longer, which reduces plasma-blow pressure while still achieving good penetration.
Amperage Range and Equipment Scale
Amperage ranges vary by manufacturer and application, but micro TIG units generally operate well below standard TIG welders' 100-250 amp range. AMADA WELD TECH's MAWA-300A datasheet shows how granular this class of equipment gets compared with a shop TIG rig:
- Output window: 30–300A
- Pulsation frequency: 1–5,000 Hz
- Weld time control: 0.1–4,000 ms
Optics, Lighting, and Waveform Control

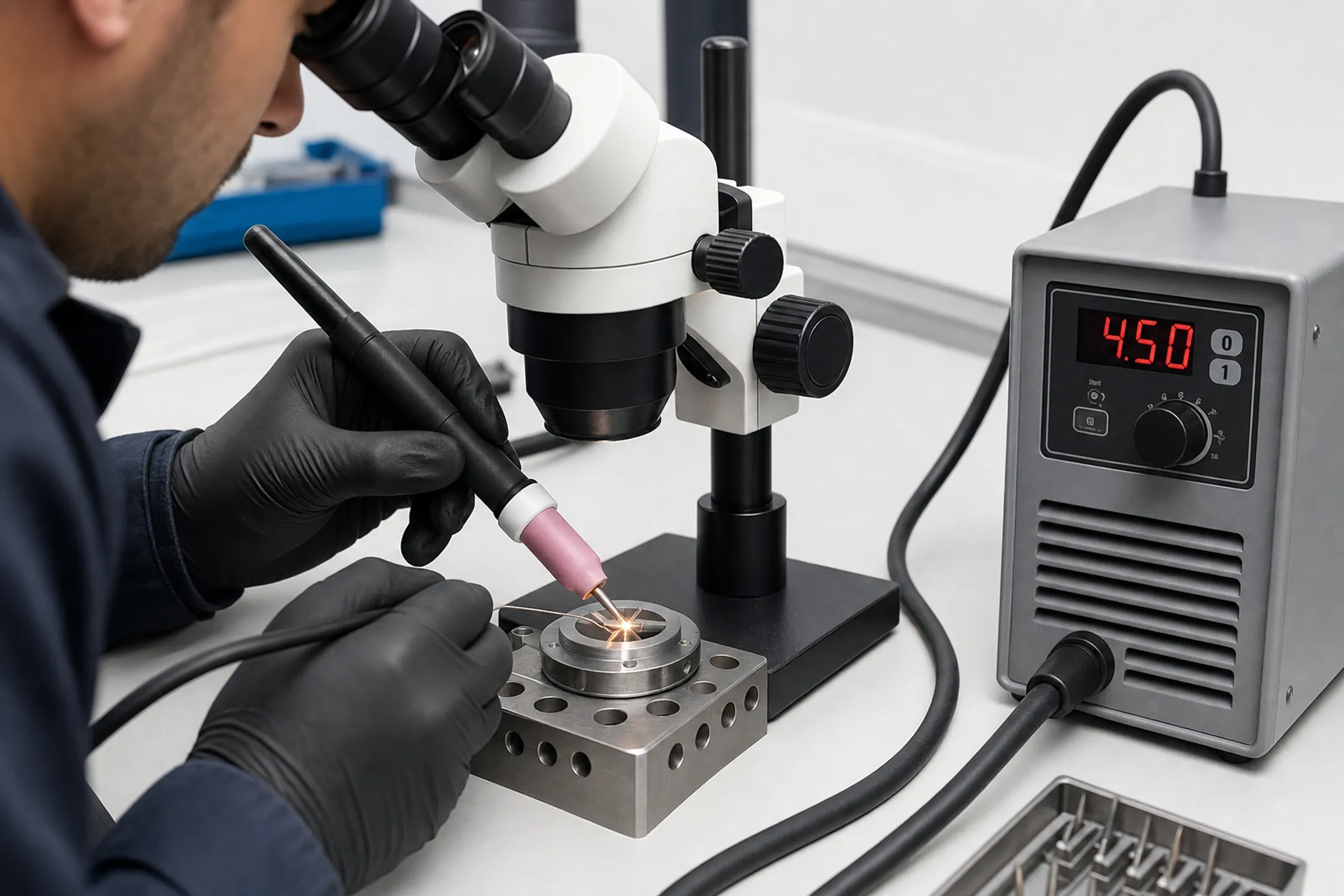

Because the weld zone is so small, high-magnification optics and dedicated lighting are essential for holding a precise arc gap. Paired with pulse waveform control, the process adapts to different metals by shaping how current builds and decays during the weld.
Micro TIG Pulse Welders Explained
A micro TIG pulse welder turns current on and off at a set frequency to shape penetration and reduce distortion. AMADA states this pulsation approach can reduce internal porosity and produce a more uniform weld shape across a production run. Pulse-specific units refine the same capacitive-discharge or linear principle with tighter control over heat-input timing.
Which Metals and Applications Benefit Most?
Micro TIG handles a wide range of materials, including some combinations that give other processes trouble.
Compatible metals include:
- Stainless steel and titanium
- Nickel-based alloys such as Inconel, Incoloy, and Hastelloy
- Gold, platinum, and silver
- Copper and phosphor bronze
- Dissimilar-metal joints, including stainless-to-titanium
Reflective metals like silver and gold are actually easier to weld with micro TIG than with many other processes. The concentrated, millisecond-scale discharge overcomes the reflectivity issue that can make laser welding inconsistent on shiny surfaces.
Real-World Exotic Alloy Work
Alloy Metalworks, a Colorado-based precision welding shop, fabricated an Alloy 800HT component for the National Renewable Energy Laboratory (NREL). The part was designed to operate above 700°C at the front end of a thermochemical reactor, mixing three separate process streams.
NREL added Alloy Metalworks to its approved vendor list afterward. Utility Global has also praised the shop's welding and machining of Inconel and stainless steel piping systems.

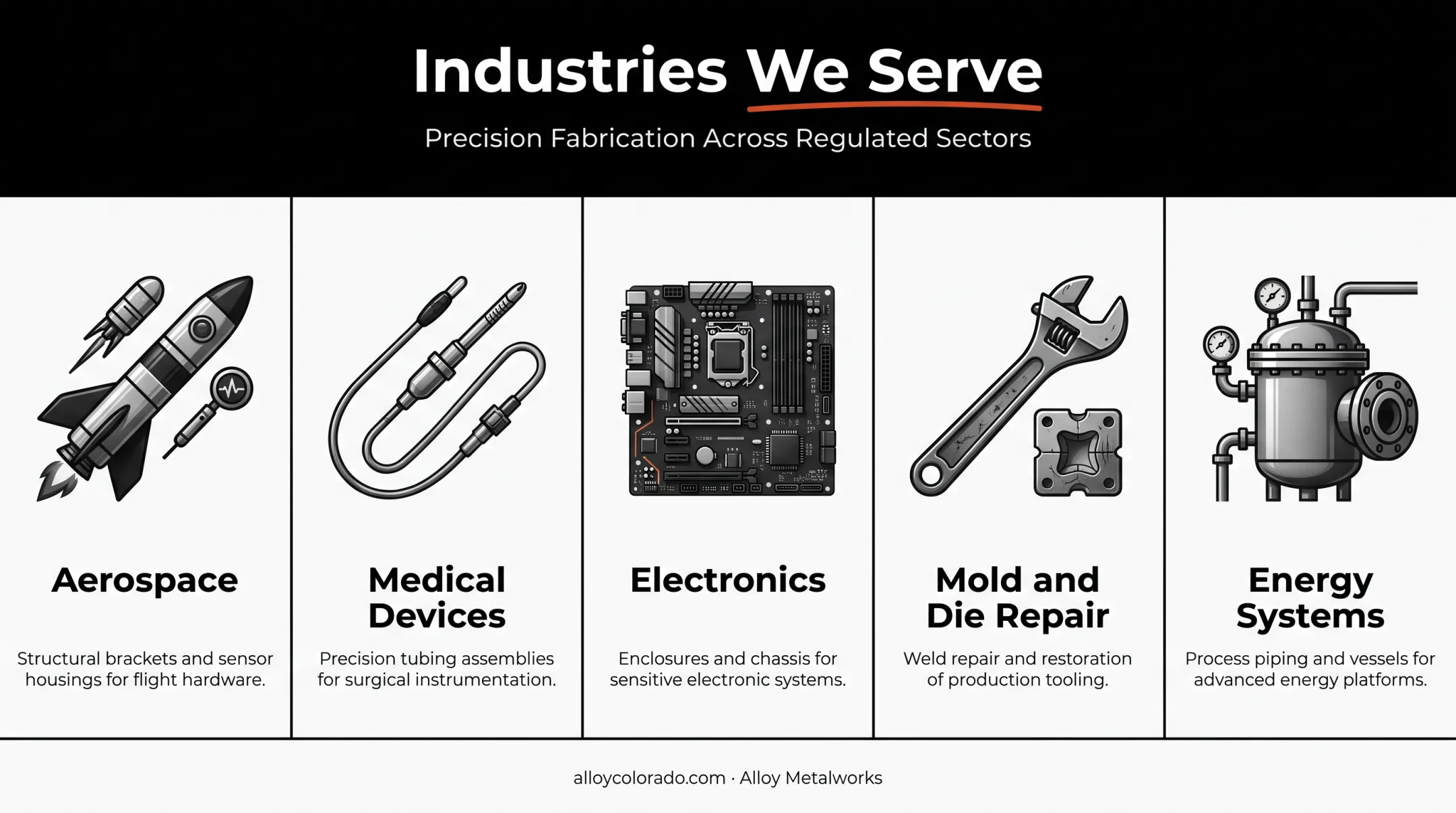

Industries That Rely on This Process
- Aerospace and space hardware — sensors, thermocouples, avionics components
- Medical devices — catheters, guide wires, endoscope tips
- Electronics — battery tabs, relays, thin magnet wire connections
- Mold and die repair — precision surface restoration
- Energy systems — reactor components, fuel cell interconnects
Is Micro TIG the Right Choice for Your Project?
Micro TIG shines when parts are small, heat-sensitive, or flight-critical. It's the right call for:
- Sanitary components requiring documented weld integrity
- Flight-critical hardware with tight dimensional tolerances
- Thin-gauge materials that would burn through under standard TIG amperage
- Research and prototype builds where a single bad weld ruins an expensive part
Where it falls short: large-volume weld fill. TIG in general is slower and less suited to high-volume production than MIG, and micro TIG's tiny weld pool makes that gap even wider. If you're filling a long structural seam, this isn't your process.
Compliance-driven industries add another wrinkle. Owning precise equipment doesn't automatically satisfy aerospace, energy, or pharmaceutical documentation requirements. Those sectors typically demand code-certified welding records, not just a good-looking weld. Those sectors typically demand code-certified welding records, not just a good-looking weld. Alloy Metalworks builds that into the job through ASME Section IX and AWS D17.1 qualified procedures, with ISO 9001-controlled traceability so sanitary and flight-critical joints leave the shop inspection-ready.
Best Practices for Micro TIG Welding Success
Getting consistent results at this scale comes down to a handful of controllable variables.
Amperage and heat control:
- Fine-tune amperage in small increments to avoid burn-through on thin materials
- Start conservative and increase gradually rather than overshooting
Shielding gas management:
- AMADA recommends a laminar gas flow around 20 cfh for micro TIG setups, while Miller's broader TIG guidance puts the range at 10-35 cfh
- Too much flow causes turbulence; too little causes porosity and oxidation
- Maintain at least 8 seconds of post-flow to protect the cooling tungsten
Workpiece cleanliness:
- At micro scale, microscopic contamination affects weld quality more than it would on a larger structural weld
- Clean joints thoroughly before every weld cycle, not just at setup
Those same controls matter even more on reactive metals. For titanium, oxidation at welding temperature is a real risk—custom inert gas chambers and purge setups keep the weld zone oxygen-free so corrosion resistance and mechanical properties hold up.
Common Micro TIG Welding Rules and Standards
The “Rule of 33” is a popular informal starting point for pulse settings: 33 pulses per second, 33% background current, and 33% pulse width. It's not an AWS or ASME standard—just a practical baseline that Welding Tips and Tricks recommends adjusting through experimentation for your specific application.
Professional shops working on flight-critical or pressure-rated hardware follow formal codes instead, including AWS D17.1 for aerospace fusion welding and ASME Section IX for procedure and personnel qualification. Owning a micro TIG welder does not satisfy those requirements by itself.
Alloy Metalworks holds both ASME Section IX and AWS D17.1 Class A certifications and applies documented procedures to produce repeatable, inspection-ready results on titanium and specialty-alloy components:
- Controlled shielding gas purity
- Consistent torch angle and tungsten stick-out
- Qualified travel speed and heat input
When to Partner with a Certified Precision Welding Provider
Buying the equipment is the easy part. Regulated industries need engineering collaboration, documentation, and traceability that a standalone machine can't provide.
Alloy Metalworks operates under ISO 9001-controlled processes covering material traceability, weld-procedure development, and audit-ready documentation. That framework supports:
- Exotic alloy fabrication — Inconel, Incoloy, Hastelloy, titanium, and dissimilar-metal joints
- Sanitary systems — built to AWS D18.1 and USDA 3-A standards for food, beverage, and pharmaceutical clients
- Flight-critical hardware — welded to AWS D17.1 Class A, where even minor visual contamination can reject a weld despite passing radiographic testing
For teams that need audit-ready results rather than in-house trial and error, that combination of certified welding and controlled documentation is often the deciding factor.
Frequently Asked Questions
What does a micro welder do?
A micro welder delivers a tightly controlled electric arc that melts metal in a tiny, precise spot. It is built for delicate joints on small components, thin sections, and fine assemblies.
Is TIG the hardest form of welding?
TIG usually takes more skill and coordination than MIG because you feed filler by hand and control the arc with high precision. It is less automated, so it takes longer to master.
What is a micro TIG pulse welder?
A micro TIG pulse welder shapes welding current into controlled on/off pulses at set frequencies. That helps you fine-tune penetration, limit heat input, reduce distortion, and match different metals and thicknesses.
What is the rule of 33 in TIG welding?
An informal pulse-setting guideline: 33 pulses per second, 33% background current, and 33% pulse width. It's a starting point for experimentation, not a fixed standard.
What metals can be welded with micro TIG welding?
Common compatible metals include stainless steel, titanium, nickel-based alloys like Inconel and Hastelloy, gold, platinum, and copper, including many dissimilar-metal combinations.
How is micro TIG welding different from standard TIG welding?
Micro TIG uses significantly lower amperage and finer filler wire than standard TIG, targeting small, delicate components rather than large-scale structural or production welds.
