Choosing the wrong welding process doesn't just slow you down. It can compromise weld strength, blow your budget, or fail an inspection on a code-governed job. This guide breaks down what SMAW is, how it works, where it excels, and how it stacks up against other arc welding processes.
Key Takeaways
- SMAW uses a flux-coated electrode that self-shields the weld pool — no external gas needed
- Portable and cost-effective, but deposition rates lag MIG or FCAW
- One of four major arc welding processes, alongside GMAW, GTAW, and FCAW
- Code-compliant welding of exotic alloys requires certified procedures, not just technique
What Is Shielded Metal Arc Welding (SMAW)?
SMAW, or shielded metal arc welding, is a manual arc welding process that uses a consumable, flux-coated electrode to lay filler metal into a joint. It's also called manual metal arc welding (MMAW), the same process under a different name.
Here's what makes it distinct: as the electrode's flux coating burns, it releases a shielding gas around the arc and forms a slag layer over the cooling weld. Both protect the molten metal from atmospheric contamination, without a gas cylinder in sight.
History: SMAW traces back to late-19th-century metal-electrode arc welding, with covered electrodes developed in Britain around 1900 and refined through the 1910s by Oscar Kjellberg. Covered electrodes were in wide use by 1930 (Miller Electric's welding history).
Is SMAW the same as stick welding? Yes. The nickname comes from the electrode's rigid, stick-like shape: SMAW, MMAW, and "stick welding" all refer to the same process.

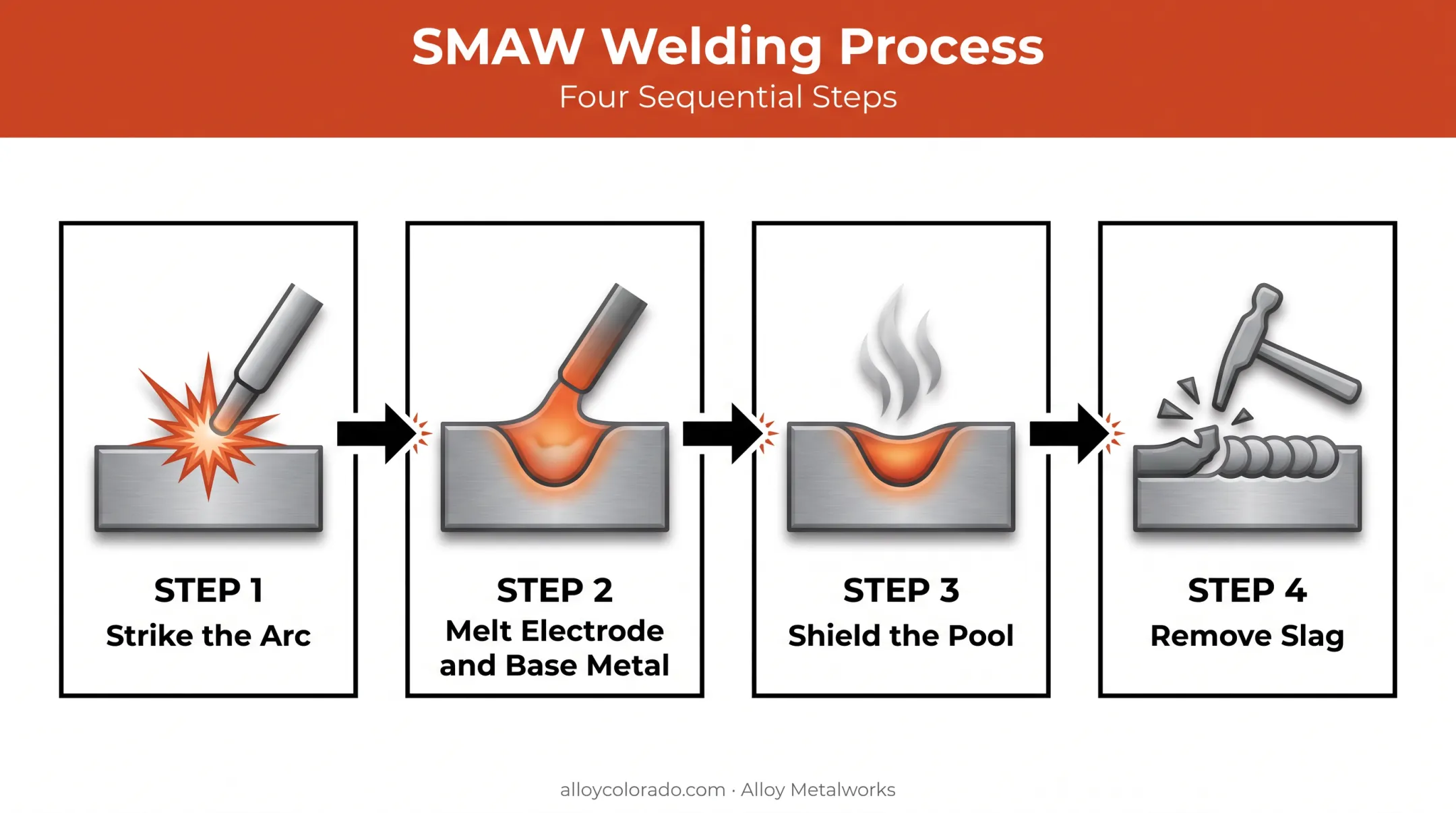

How Does SMAW Welding Work?
The process is mechanically simple, even if it takes real skill to execute well.
- Strike the arc: Scratch or tap the electrode against the base metal to establish current flow.
- Melt the electrode and base metal: The arc heat liquefies both, forming a shared weld pool.
- Shield the pool: The flux coating burns off, generating shielding gas while slag floats to the surface.
- Remove the slag: Once the weld cools, chip away the slag layer with a chipping hammer to reveal the bead.
Equipment You'll Need
- Constant-current (CC) power source, AC or DC
- Electrode holder
- Ground clamp
- Welding cables
- Chipping hammer and wire brush for slag removal
Polarity and Current
SMAW relies on constant-current power sources because they keep electrode melt-off stable even as arc length varies. Depending on the electrode type, you'll run:
- DCEP (electrode positive): deeper penetration, common default for many rods
- DCEN (electrode negative): less penetration, faster melt-off
- AC: helps counter arc blow in certain setups
Follow the manufacturer's data sheet for the correct polarity; guessing here leads to poor fusion.

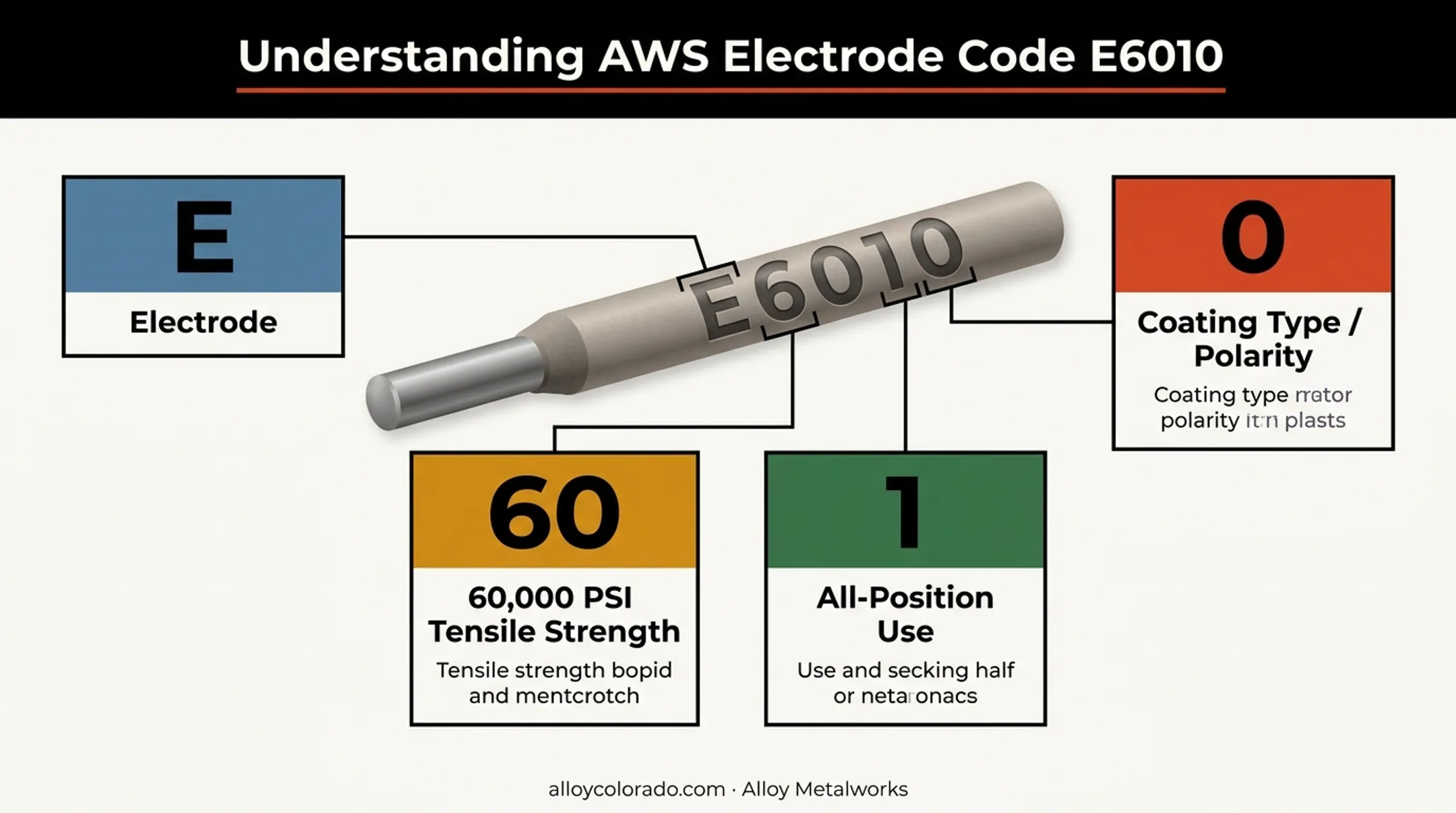

Electrode Classification: What E6010 and E7018 Mean
AWS A5.1 governs carbon steel electrodes for SMAW. Take E6010:
- E = electrode
- 60 = 60,000 psi minimum tensile strength
- 1 = usable in all positions
- 0 = high-cellulose-sodium coating, run on DC+
E6010 is known for a deep-penetrating arc, often used for pipe root beads. E7018, by contrast, is a low-hydrogen electrode (70,000 psi, all-position) favored for quality-sensitive welds and harder-to-weld metals. See Lincoln Electric's AWS classification guide for the full breakdown.
Example in action: A crew repairing a cracked steel beam on a construction site fires up a stick welder off a generator, runs an E7018 rod, and lays a structural weld with no gas bottle in tow. That portability is the whole point of SMAW.
The 5 Essentials of SMAW
Weld quality comes down to five variables:
- Electrode selection: matched to base metal and joint requirements
- Current and polarity: set per electrode specification
- Arc length: too long causes spatter; too short causes sticking
- Travel speed: controls bead width and penetration
- Electrode angle: affects fusion and bead shape

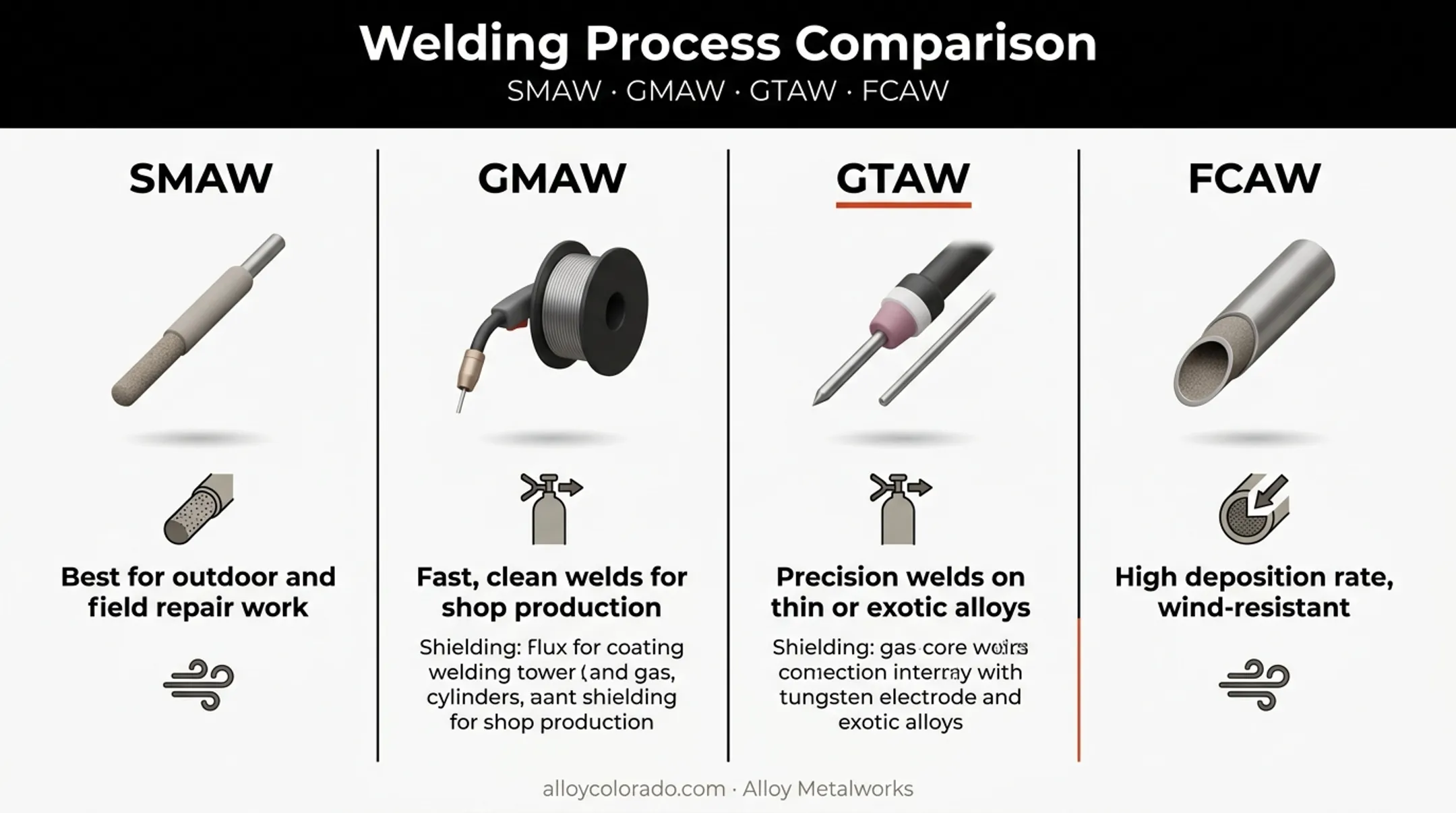

Types of Arc Welding: Where SMAW Fits
Choosing an arc process starts with how the weld is shielded and how the filler metal is delivered. SMAW is one of four commonly referenced arc welding processes:
| Process | Key Trait |
|---|---|
| SMAW | Manual, flux-coated electrode, self-shielding |
| GMAW (MIG) | Continuous wire feed, external gas shielding |
| GTAW (TIG) | Manual, non-consumable tungsten electrode |
| FCAW | Wire-fed, flux-cored, sometimes gas-shielded |
Submerged arc welding (SAW) is sometimes added as a fifth process for heavy industrial fabrication. It feeds a wire electrode under a blanket of granular flux.
SMAW and FCAW create their own shielding from flux. GMAW and GTAW rely on an external gas supply, so SMAW holds up better outdoors or in wind where shielding gas would blow away.
Advantages and Disadvantages of SMAW
SMAW Advantages
- Low equipment cost: no gas cylinders, flowmeters, or wire feeders required
- Portable: a generator and a stick welder can run in remote locations
- Versatile: works on ferrous and some nonferrous metals
- Weather-tolerant: performs outdoors and in windy conditions where gas-shielded processes struggle
SMAW Limitations
- Lower deposition rate: Lincoln Electric notes SMAW may deliver only 2-3 minutes of actual arc time per 10-minute interval due to electrode changes and slag removal (Lincoln Electric's power source guide)
- More cleanup: every pass requires slag chipping before the next
- Steeper learning curve: manual electrode feeding demands tighter coordination than semi-automatic wire processes
Is SMAW Harder Than MIG?
Yes. SMAW requires the welder to maintain arc length, angle, and travel speed by hand while managing slag and electrode changes. MIG’s automated wire feed removes several of those variables, so it is more forgiving for beginners. Early stick-welding mistakes often include porosity and poor fusion until coordination improves.
Common Applications and Industries Using SMAW
SMAW still shows up across a wide range of industries:
- Construction and structural steel
- Pipeline welding
- Shipbuilding and repair
- Mining equipment
- Agricultural equipment repair
- Site and field maintenance work
Even as automated wire-fed processes grow, SMAW holds its ground for field repair, thick material welds, and situations where hauling gas cylinders isn't practical.
That said, not every job stops at "the weld looks good." For aerospace, energy, and research-grade fabrication, code compliance under ASME Section IX or AWS D1.1 is non-negotiable. This is where certified process control matters as much as technique.

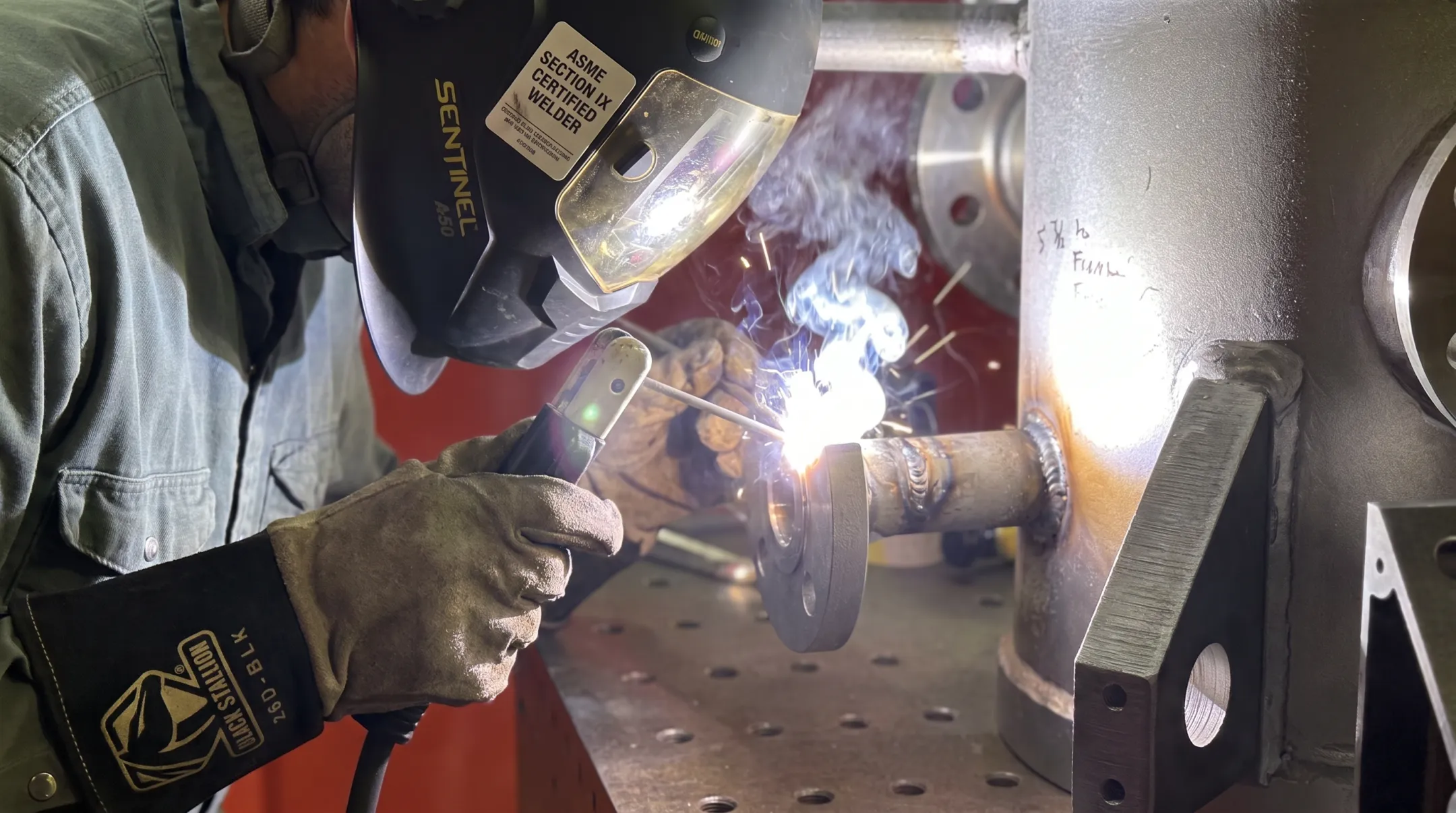

At Alloy Metalworks, welding procedures for pressure systems and critical hardware are qualified to ASME Section IX, with ISO 9001-controlled processes ensuring traceability from procedure to finished part. Fabrication Lead Randy Zavala holds AWS D1.1, D1.2, D18.1, and ASME Section IX certifications. That mix supports documented, code-compliant welding on structural, pressure, and other demanding industrial work.
Choosing the Right SMAW Equipment and Electrodes
A working SMAW setup comes down to four pieces:
- Constant-current power source — AC or DC stick welder sized to your electrode range
- Electrode holder — insulated stinger rated for your amperage
- Ground clamp — solid work connection placed close to the weld
- Welding leads — cable sized for amperage and length to limit voltage drop
DC is the usual pick for a smoother arc and easier out-of-position beads. AC still matters for certain electrodes and for reducing arc blow on magnetized steel.
Matching Electrodes to the Job
Electrode selection depends on base metal, welding position, and required penetration:
- E6010 — deep penetration, all-position, DC+; common for pipe root beads
- E6011 — same dig and all-position capability, with AC compatibility
- E7018 — low-hydrogen, all-position; structural and code work where crack resistance matters
Match electrode diameter to metal thickness and stay inside the manufacturer’s amperage range. Store E7018 in a rod oven so the low-hydrogen coating stays dry.
Safety Essentials
SMAW produces UV radiation, spatter, and welding fumes, so proper PPE isn't optional:
- Welding helmet with appropriate filter shade
- Insulated gloves and flame-resistant clothing
- Adequate ventilation, especially in confined spaces
OSHA requires ventilation controls where fumes and gases may be hazardous, along with fire prevention measures before striking an arc (OSHA 1910.252 general welding requirements).
Frequently Asked Questions
What is shielded metal arc welding?
SMAW is a manual arc welding process that uses a flux-coated consumable electrode. The flux coating burns during welding to shield the weld pool from atmospheric contamination.
Is SMAW the same as stick welding?
Yes. "Stick welding" is the common nickname for the rigid, stick-shaped electrode. SMAW is also called MMAW (manual metal arc welding)—all three names describe the same process.
Is SMAW harder than MIG?
Yes, for most beginners. SMAW requires manual electrode feeding, arc length control, and slag management, while MIG's continuous wire feed removes several of those variables.
What are the four types of arc welding?
The four main types are SMAW (flux-coated electrode), GMAW (continuous wire, gas-shielded), GTAW (tungsten electrode with manual filler), and FCAW (flux-cored wire, sometimes gas-shielded).
What is a shielded metal arc welding machine?
It's a constant-current power source paired with an electrode holder, ground clamp, and cables, used to generate and sustain the welding arc.
What are the 5 essentials of shielded metal arc welding?
The five essentials are electrode selection, current and polarity, arc length, travel speed, and electrode angle. Getting all five right consistently is what separates a clean weld from a defective one.
