That's where build to spec manufacturing comes in. Instead of handing over a complete print, you give the manufacturer performance requirements, material constraints, and environmental conditions. The manufacturer takes it from there, determining the detailed design, fabrication method, and finish.
This article breaks down what build to spec actually means, how it compares to build to print, and what to look for in a partner when compliance and traceability matter.
Key Takeaways
- Build to spec: you set performance requirements; the manufacturer owns design, materials, and process
- Build to print: you supply complete drawings; the manufacturer executes them exactly as specified
- Limited engineering bandwidth or evolving designs favor build-to-spec
- Aerospace and energy still need documentation and traceability under either model
What Does "Build to Spec" Mean?
In a build-to-spec arrangement, you supply the functional and performance specifications: size parameters, material class, pressure or thermal thresholds, and regulatory requirements. The manufacturer determines the detailed design, fabrication method, and finish that meets those parameters.
This model shifts a portion of design responsibility from the OEM to the manufacturer. The manufacturer defines how the part will actually meet the stated requirements (Primus Aerospace).
This isn't the same as an open-ended custom design service. You still define:
- General requirements and end-use function
- Tolerances and dimensional boundaries
- Material class or performance thresholds
- Regulatory or compliance standards that apply
A practical example: A research lab needs a custom bracket that must survive specific thermal cycling and pressure conditions. There's no finished drawing, just a performance target. The manufacturer works out the geometry, joint design, and material selection to hit that target.
You avoid staffing an in-house design engineering team while gaining a supplier's fabrication expertise and accountability for the outcome.

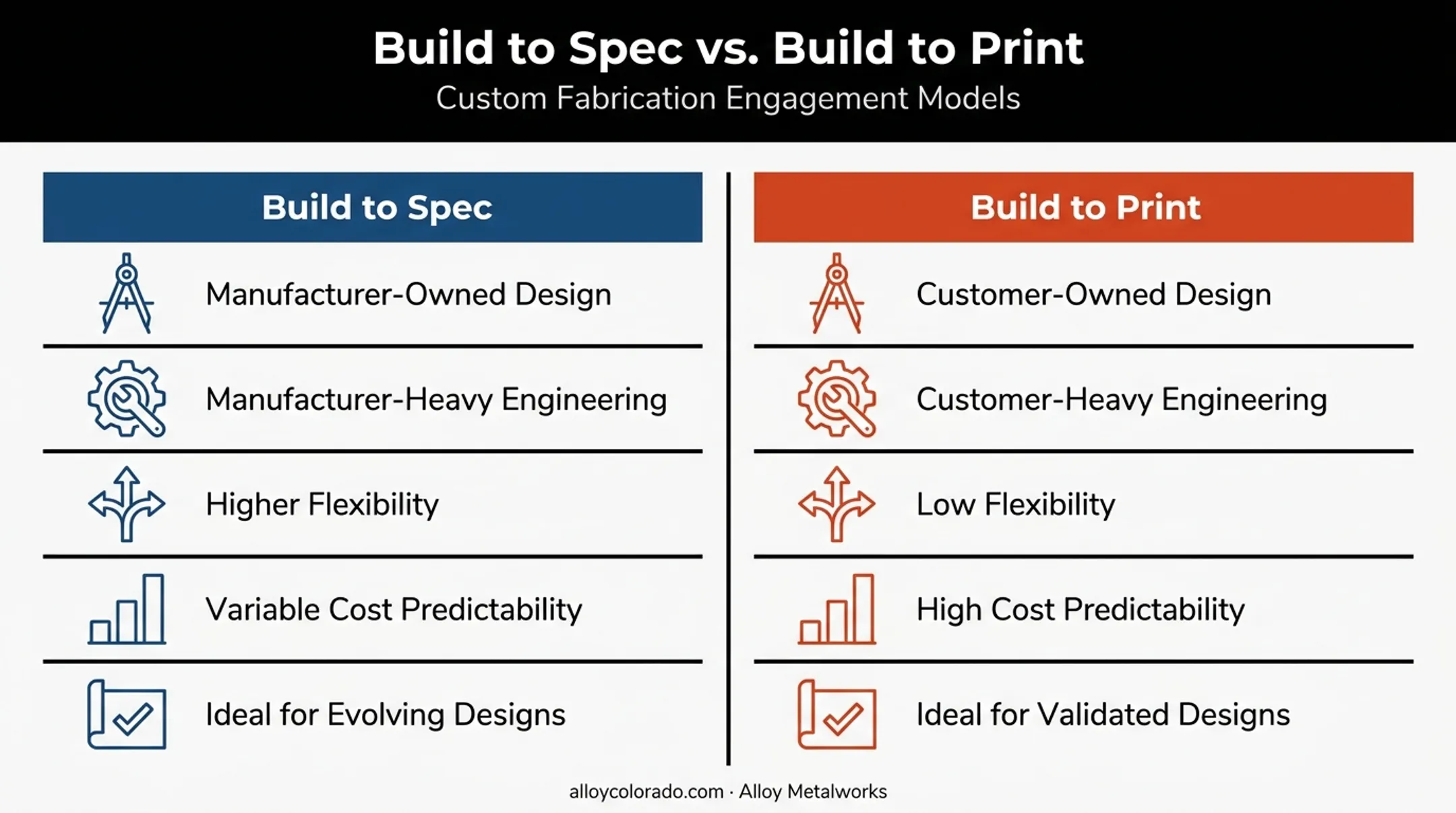

Build to Spec vs. Build to Print: Key Differences
Build to spec gives the manufacturer design latitude within your performance requirements. Build to print flips that model. You supply complete, finalized drawings, tolerances, and material callouts. The manufacturer executes with little design discretion—geometry and materials can't shift without your approval.
Here's how the two compare:
| Factor | Build to Spec | Build to Print |
|---|---|---|
| Design ownership | Manufacturer determines detailed design | Customer owns complete design |
| Engineering involvement | Manufacturer-heavy | Customer-heavy |
| Flexibility | Higher, contract-dependent | Low; changes require approval |
| Cost predictability | Variable until design settles | High, defined upfront |
| Ideal use case | Evolving designs, limited internal engineering | Validated, production-ready designs |
Where the Risk Sits
Design authority, IP ownership, and liability allocation aren't automatic under either model. They depend on what your contract says. NASA's own research on build-to-print missions found that reusing "flight-proven" designs can create a false sense of low risk, even when requirements creep in unnoticed (NASA, 2017).
Neither model eliminates risk by default. Put design authority, approval rights, and engineering-change responsibility in writing regardless of which path you choose.
The Hybrid Reality
Most active programs use both. Build to print handles validated, locked-down designs. Build to spec covers the parts still evolving, where a fabricator's manufacturability input can improve the outcome. The right choice comes down to your priorities:
- Build to print when you need cost certainty and full design control
- Build to spec when you want manufacturability input and less internal engineering load
When Build to Spec Manufacturing Makes Sense
Watch for these signals:
- The design isn't fully developed yet
- Internal engineering resources are stretched thin
- Manufacturability improvements could meaningfully reduce cost or lead time
- Speed matters more than a finalized print
Build to spec shows up regularly in aerospace ground support equipment, energy systems, sanitary process equipment, and research/prototyping environments.
National labs like Los Alamos and Fermilab run internal fabrication programs that blend engineering support with precision welding for the same reason: high-tolerance, evolving parts that need expert judgment applied fast (LANL, Fermilab).
There's a trade-off, though. When you provide only specs, you're trusting the manufacturer's engineering judgment on the details. That makes certifications and a documented quality management system non-negotiable.
Alloy Metalworks operates this way for aerospace, energy, and advanced manufacturing clients. Engineering-aware collaboration bridges design concepts to inspection-ready parts, backed by ISO 9001 QMS, ASME Section IX, and AWS certifications.

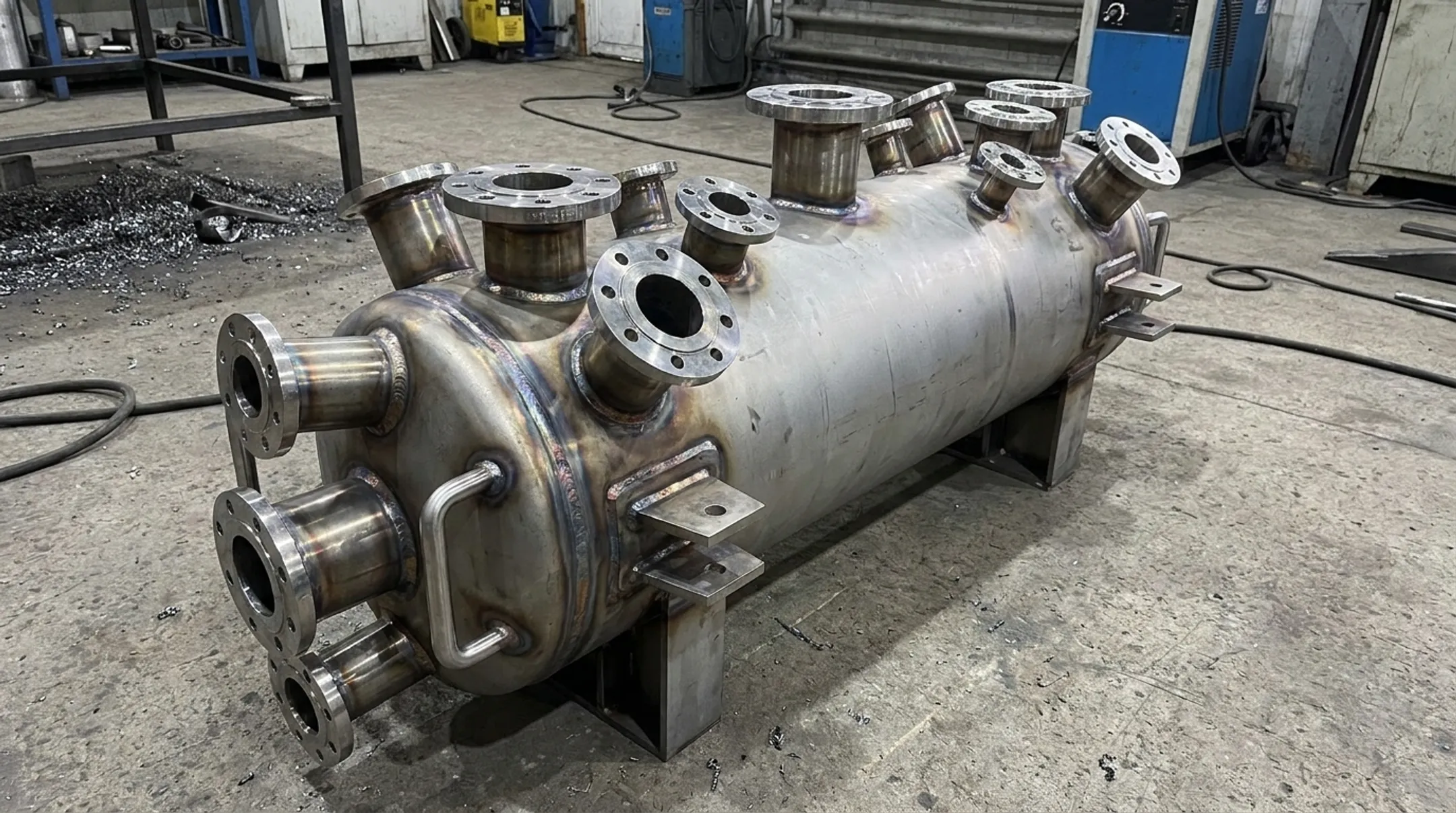

When National Renewable Energy Laboratory needed an Alloy 800HT thermochemical reactor component built to operate above 700°C while mixing three streams, they didn't hand over a finished print — they worked from performance requirements. NREL later added Alloy Metalworks to its approved pressure program vendor list.

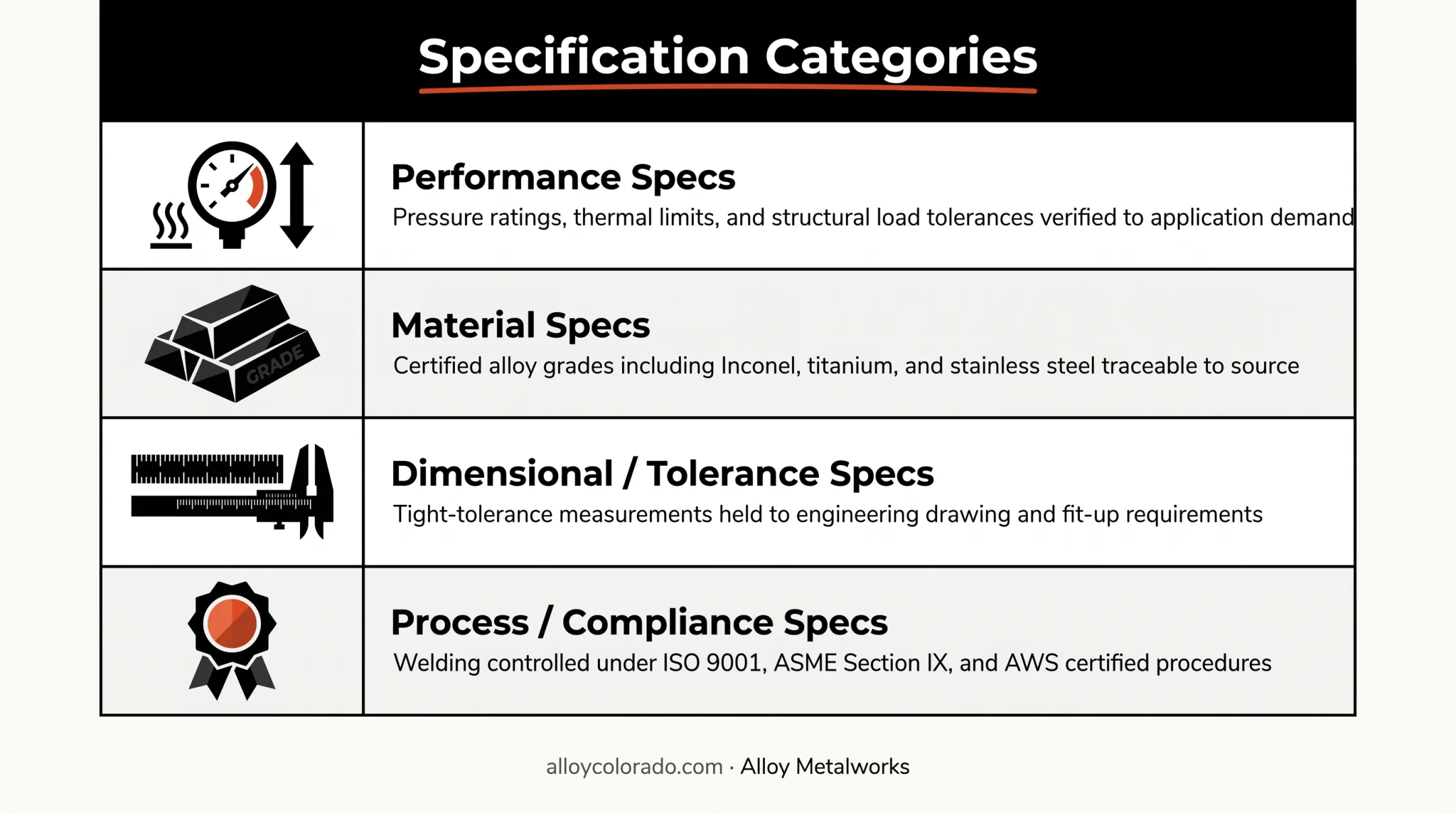

Types and Examples of Manufacturing Specifications
Common Categories of Specifications
Specifications generally fall into four buckets:
- Performance specs — what the part must do (pressure rating, thermal tolerance, load capacity)
- Material specs — grade, alloy class, or material family required
- Dimensional/tolerance specs — size limits, fit, and finish requirements
- Process/compliance specs — required welding codes or industry standards, such as AWS D1.1 or ASME Section IX
Real-World Specification Examples
- Valve assembly (performance): minimum pressure rating, without dictating exact wall thickness
- Structural steel (process/compliance): AWS D1.1 structural welding code compliance
- Sanitary process equipment (process/compliance): AWS D18.1 sanitary welding and USDA 3-A standards for food and pharma service
Alloy Metalworks works across these categories every week. The shop welds Inconel, Hastelloy, Incoloy, titanium, and stainless under ASME Section IX and AWS D17.1 for flight-critical hardware.
DFM and Its Role in Build to Spec Projects
Design for Manufacturability (DFM) matters more in build-to-spec work because the manufacturer carries more of the design decisions. NIST's early research on DFM framed it as part of concurrent engineering: manufacturability is considered during design, not after.
In practice, a manufacturer applies DFM by:
- Selecting materials that balance performance against cost and lead time
- Designing weld joints for access, strength, and inspectability
- Managing tolerance stack-up before it becomes a downstream problem
The real payoff is the feedback loop. When a manufacturer flags a spec conflict early (for example, a tolerance the specified material cannot hold), you avoid failed inspections and rework later.
Alloy Metalworks builds that loop in through weld procedure development, heat-input and distortion control, and material-specific contamination controls before welding starts.
Choosing a Build to Spec Manufacturing Partner
Since you're trusting the manufacturer with real design authority, vet them the way you'd vet an engineering partner, not just a vendor.
Look for:
- Relevant welding and material certifications (ASME Section IX, AWS codes specific to your material and application)
- A documented, audited quality management system, not just a certificate on the wall
- Traceability practices: material certs, heat/lot traceability, inspection and NDE records, calibration logs
AWS's Certified Welding Fabricator program is one useful benchmark. It audits document control, purchasing, material traceability, and welder qualification records—not just whether the shop can lay a good bead (AWS).
Certification only confirms baseline facility requirements. It doesn't guarantee fit for every application, so ask specifically about experience with your material and use case.
Engineering collaboration matters most. A partner who just executes instructions isn't build-to-spec ready. You want someone who can translate a performance requirement into a working design and flag problems before they become expensive.
That combination—qualified welding, controlled quality systems, and real design input—is what separates a build-to-spec partner from a job shop.
Alloy Metalworks works in that model: ASME Section IX and AWS-certified welding (including D17.1 Class A) of nickel alloys, titanium, aluminum, and stainless, plus ISO 9001-controlled processes for aerospace, hydrogen energy, and research work. Fabrication Lead Randy Zavala brings over 20 years in complex geometric builds and precision welding, including Incoloy chemical reactor systems and aerospace ground support structures.
Frequently Asked Questions
What does "build to spec" mean?
Build to spec is a manufacturing model where the customer supplies performance requirements, such as material class, size parameters, or environmental conditions. The manufacturer then determines the detailed design and fabrication approach to meet them.
What is the difference between build to spec and build to print?
Build to print requires the customer to supply complete, finalized drawings and tolerances, leaving little design discretion to the manufacturer. Build to spec starts with performance requirements, giving the manufacturer design authority within defined boundaries.
What are examples of specifications?
Common examples include dimensional tolerances, material grades, pressure or thermal performance thresholds, and weld code compliance like AWS D1.1 or ASME Section IX. Sanitary equipment often adds hygienic finish requirements too.
What are the four types of specifications?
The four main categories are performance specs, material specs, dimensional/tolerance specs, and process/compliance specs, such as required welding codes or industry standards.
What is DFM in manufacturing?
Design for Manufacturability (DFM) means designing parts around fabrication constraints such as material behavior, weld access, and tolerance stack-up. In build-to-spec work, DFM helps control cost, lead time, and quality because the manufacturer shapes much of the design.
