That same toughness creates a paradox at the weld joint. The properties that make nickel alloys valuable also make them notoriously difficult to weld. Porosity, hot cracking, and contamination can turn a high-performance component into scrap metal in seconds.
This guide breaks down the real challenges of welding nickel alloys, why cleanliness isn't optional, how to match filler metal to base alloy, and when code compliance stops being a checkbox and starts being the thing standing between a working part and a failed one.
Key Takeaways
- Nickel alloys resist heat and corrosion, but contamination during welding quickly causes porosity and cracking
- Cleanliness before and during welding is the single biggest factor in preventing porosity and cracking
- Use TIG or MIG for nickel alloys, and match filler metal to the specific base alloy
- ASME Section IX and AWS D17.1 Class A certifications are non-negotiable for flight-critical components
Understanding Nickel Alloys and Why They're Different
Not all nickel alloys behave the same way under a torch. The distinction between solid-solution alloys and precipitation-hardened alloys determines almost everything about how you approach the weld.
- Solid-solution alloys (Nickel 200, Monel 400) weld more predictably and show better inherent crack resistance
- Precipitation-hardened alloys (Inconel 718, X-750) gain strength from heat treatment and risk strain-age cracking if the post-weld sequence is wrong
Inconel 718, for example, is precipitation hardened in the 1,100–1,500°F range. Welded correctly with matching Filler Metal 718, it offers strong resistance to post-weld cracking.
X-750 needs to be annealed or solution-treated before you strike an arc. Weldments then typically need solution treatment before precipitation treatment.
Common Trade Names You'll Encounter
Welders working across industries run into a handful of recurring names:
- Inconel — gas turbines, aerospace exhaust systems, petrochemical equipment
- Hastelloy — chemical processing where corrosion resistance is critical
- Monel — nickel-copper alloys used in demanding process environments
- Incoloy — high-temperature service, including thermochemical reactors
At Alloy Metalworks, we've seen this firsthand. The National Renewable Energy Laboratory (NREL) brought us an Alloy 800HT component for a thermochemical reactor running above 1,300°F, a range where ordinary steel would fail outright.
Puddle behavior is another reason these alloys feel different from steel. Nickel's weld puddle is sluggish, less fluid, and slower to wet out. Lower thermal conductivity keeps heat concentrated at the arc instead of spreading into the base metal, so travel speed, heat input, and bead placement matter more than they do on carbon steel.

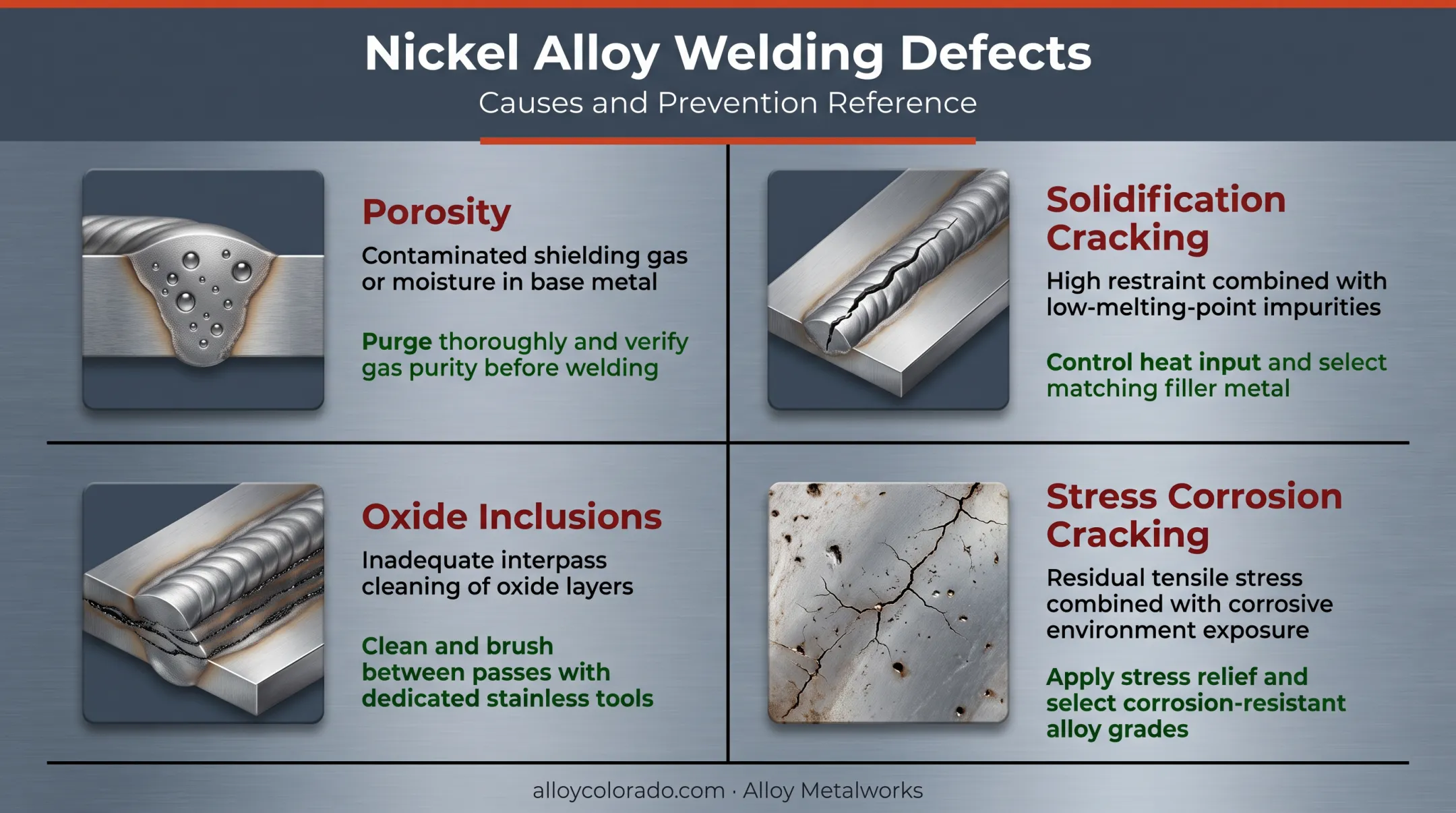

Common Welding Challenges and How to Prevent Them
Nickel alloy welds fail in a handful of predictable ways. Knowing the mechanism behind each one is the first step to preventing it.
Porosity
Trapped gas (oxygen, nitrogen, or hydrogen) creates porosity as the weld solidifies. Hydrogen often sneaks in through moisture, oil, or grease left on the surface. Chromium-bearing alloys pick up these gases readily during welding, so shielding gas coverage and filler metal choice are non-negotiable.
Prevention:
- Maintain full, uninterrupted shielding gas coverage throughout the weld
- Use deoxidizing filler metals where appropriate
- Eliminate any moisture, oil, or grease before striking an arc
Solidification (Hot) Cracking
Hot cracking happens as the weld pool solidifies and is almost always tied to contamination on or near the joint. Sulfur, phosphorus, and other low-melting residues open cracks at the solidification front. Rigorous pre-weld cleaning is the difference between a sound weld and a rejected one.
Prevention:
- Clean to bright metal immediately before welding; re-clean if the joint sits
- Keep fixtures, brushes, and filler stock free of shop dirt and residual oils
- Control heat input and interpass temperature per the qualified WPS
Oxide Inclusions
Nickel's surface oxide layer has a much higher melting point than the base metal itself. Wire brushing alone does not remove it; it polishes over contamination that is still sitting there. Mechanical removal, ground to bright metal, is the only reliable method.
Prevention:
- Grind or machine oxides to bright metal before fit-up
- Use dedicated stainless or nickel-safe abrasives (no carbon-steel contamination)
- Re-clean after any delay, handling, or thermal cycle that reforms scale
Stress Corrosion Cracking in Service
Some nickel alloys need post-weld stress relief before they ever see service, especially in caustic environments. Alloy 600, for example, is susceptible to stress-corrosion cracking in high-temperature, high-strength caustic alkalies.
Typical relief schedules before caustic service:
- 1,650°F for one hour, or
- 1,450°F for four hours
This is alloy- and service-specific, not a blanket rule. The welding procedure specification (WPS) must spell out when stress relief is required and which schedule applies.

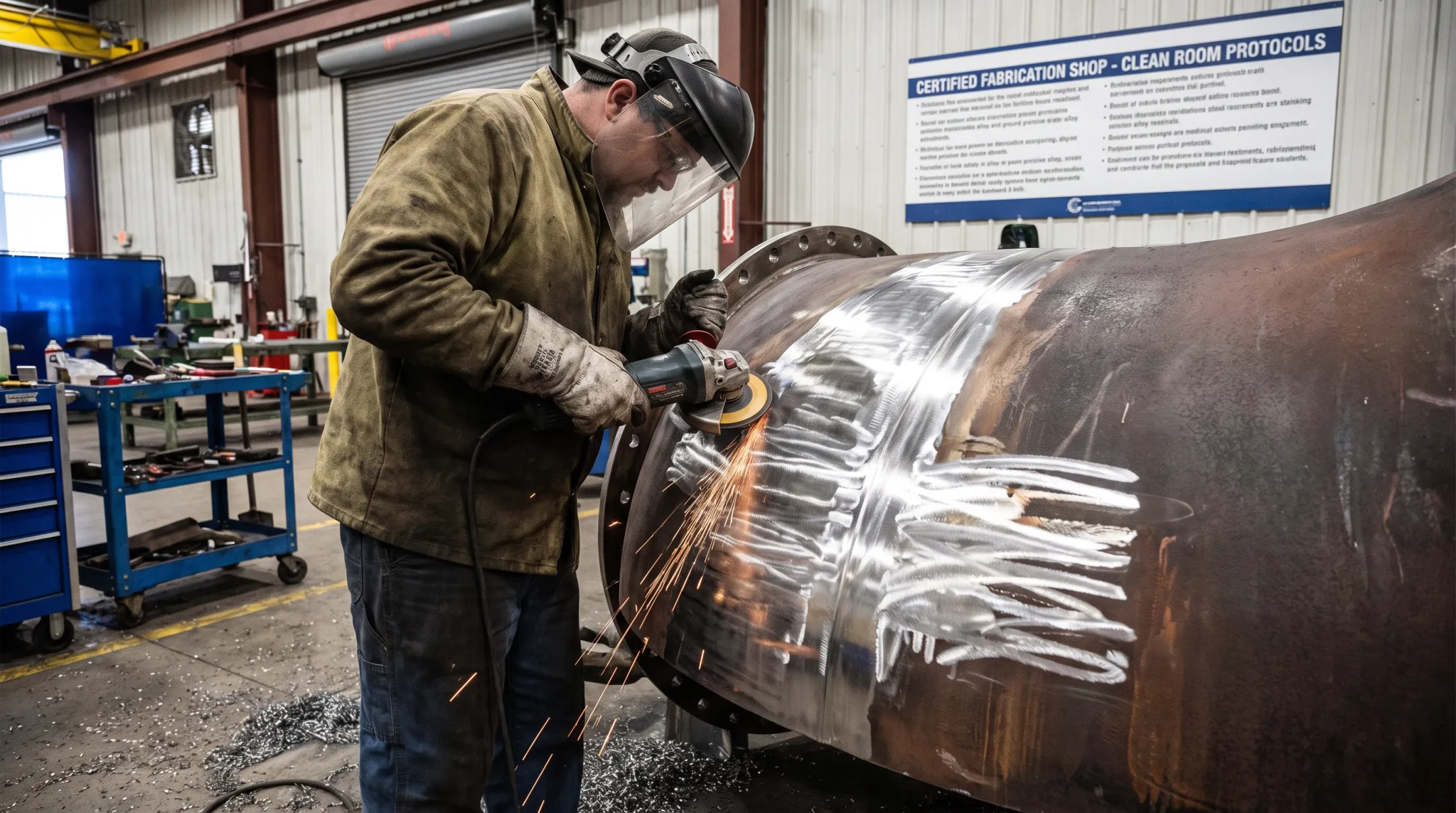

Cleanliness and Preparation: The Non-Negotiable Step
If there's one lesson every experienced nickel alloy welder learns the hard way, it's this: cleanliness isn't a suggestion.
Shop dirt, oil, and grease need to come off first. Then the oxide layer has to go. Organic cleaning alone won't touch it:
- Vapor degrease or solvent-wipe the surface (acetone is a common choice)
- Mechanically remove the oxide layer from the weld area
We rejected an 800HT component outright after finding surface rust and contamination before it ever reached service. That's how unforgiving these alloys are: contamination doesn't always show up as a defect until it's already too late.
Avoiding Cross-Contamination
Tools matter more than people expect. Grinding discs, Scotch-Brite pads, and files previously used on carbon steel or aluminum can transfer embedded particles onto nickel alloy surfaces. The fix is straightforward:
- Keep dedicated abrasives and tools exclusively for nickel alloy work
- Store them separately and label them clearly
- Never assume a "clean-looking" tool is contamination-free
For alloys like 800HT, that also means using approved cutting fluids, deionized or low-chloride water, and marking tools that won't introduce sulfur or chlorides into the surface.
Don't clean a joint hours before you plan to weld it. Recontamination happens fast from ambient moisture, handling, or airborne particulates. Weld within a limited window after cleaning, not "sometime today."
Choosing the Right Filler Metal and Welding Process
Filler metal selection isn't a place for approximation. It has to match the base alloy's composition, and the wrong choice can undo every bit of careful prep work you've done.
Matched filler metals for common nickel alloys include:
- Alloy 600: SMAW uses Inconel Electrode 182; GTAW/GMAW uses Filler Metal 82
- Inconel 718 and X-750: Filler Metal 718 (classified as ERNiFeCr-2)
- Alloy 625: ERNiCrMo-3 filler wire, designed to match Alloy 625's composition directly
The takeaway: don't assume one filler metal covers a family of alloys. Verify against the specific base metal and the qualified WPS.

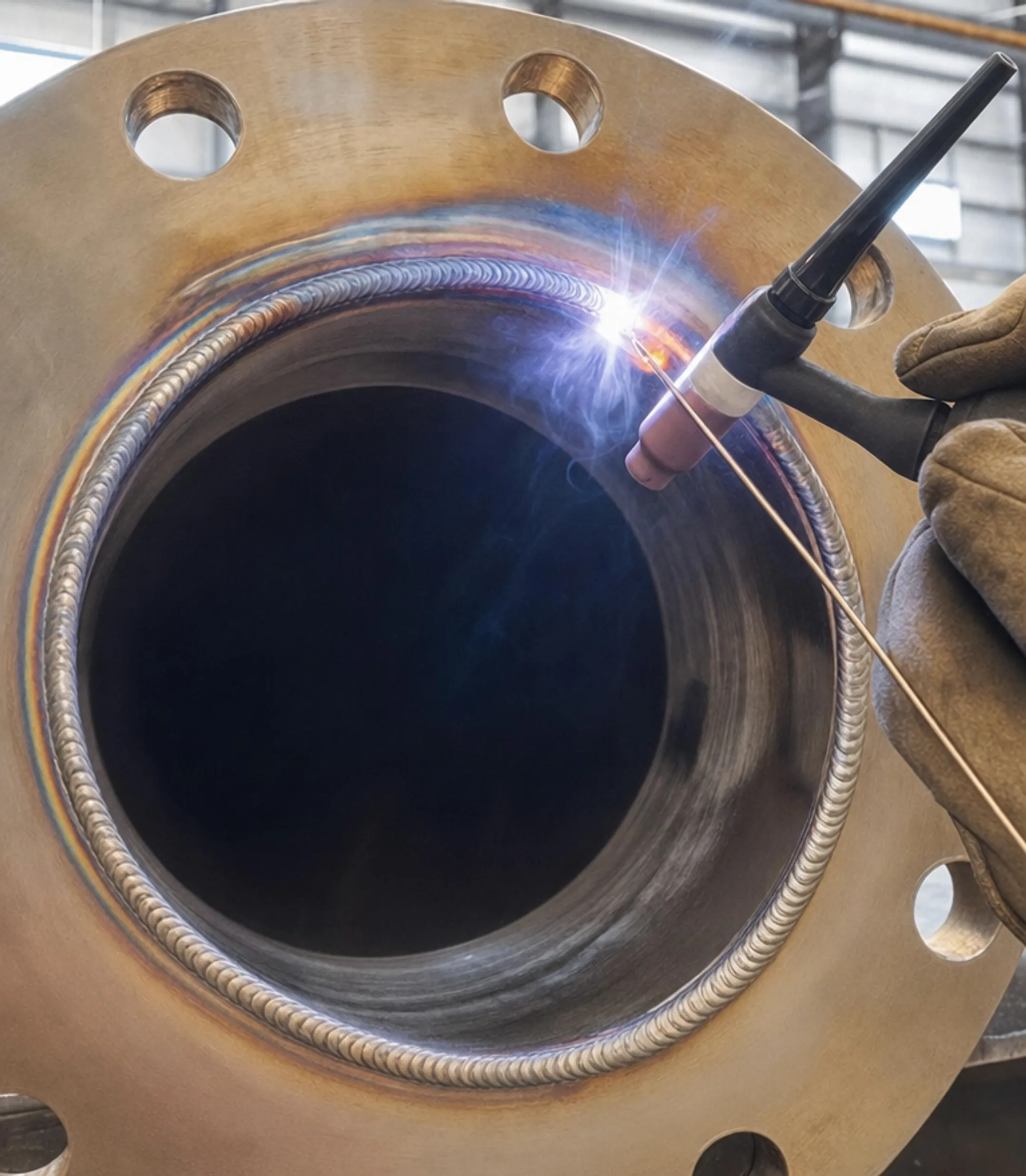

TIG vs. MIG
| Factor | TIG (GTAW) | MIG (GMAW) |
|---|---|---|
| Precision | High: ideal for thin sections and critical joints | Moderate |
| Speed | Slower | Faster, better for production runs |
| Weld cleanliness | Cleaner, tighter control | Good, but less precise |
| Best use case | Aerospace-critical, flight hardware | Higher-volume industrial fabrication |
For shielding gas, pure argon is the standard baseline for GTAW nickel welding. Some applications call for hydrogen additions, but the exact percentage should come straight from the qualified WPS. Do not guess from a rule of thumb borrowed from a different alloy family.
Filler, process, and gas choices still leave one alloy-dependent step: post-weld heat treatment.
- Precipitation-hardened alloys (for example Inconel 718): use a defined heat-treatment sequence to restore strength and reduce cracking risk.
- Solid-solution alloys: often skip PWHT, though caustic-service components may still need stress relief regardless of alloy type.
Why Certified, Code-Compliant Welding Matters for Nickel Alloys
Nickel alloy welds frequently end up in flight-critical, high-pressure, or corrosive service—environments where a failed weld doesn't just cost money. It costs safety margin.
That's why ASME Section IX and AWS D17.1 exist. ASME Section IX establishes the rules for qualifying welding procedures required under other ASME code sections. AWS D17.1 sets general welding requirements specifically for aircraft and space hardware, with three classification tiers:
- Class A — failure would compromise or destroy a critical system
- Class B — failure reduces system strength or effectiveness
- Class C — nonstructural or cosmetic welds
Under Class A, the standard is unforgiving: visual contamination alone can disqualify a weld even if it passes destructive or radiographic testing. There's no partial credit.

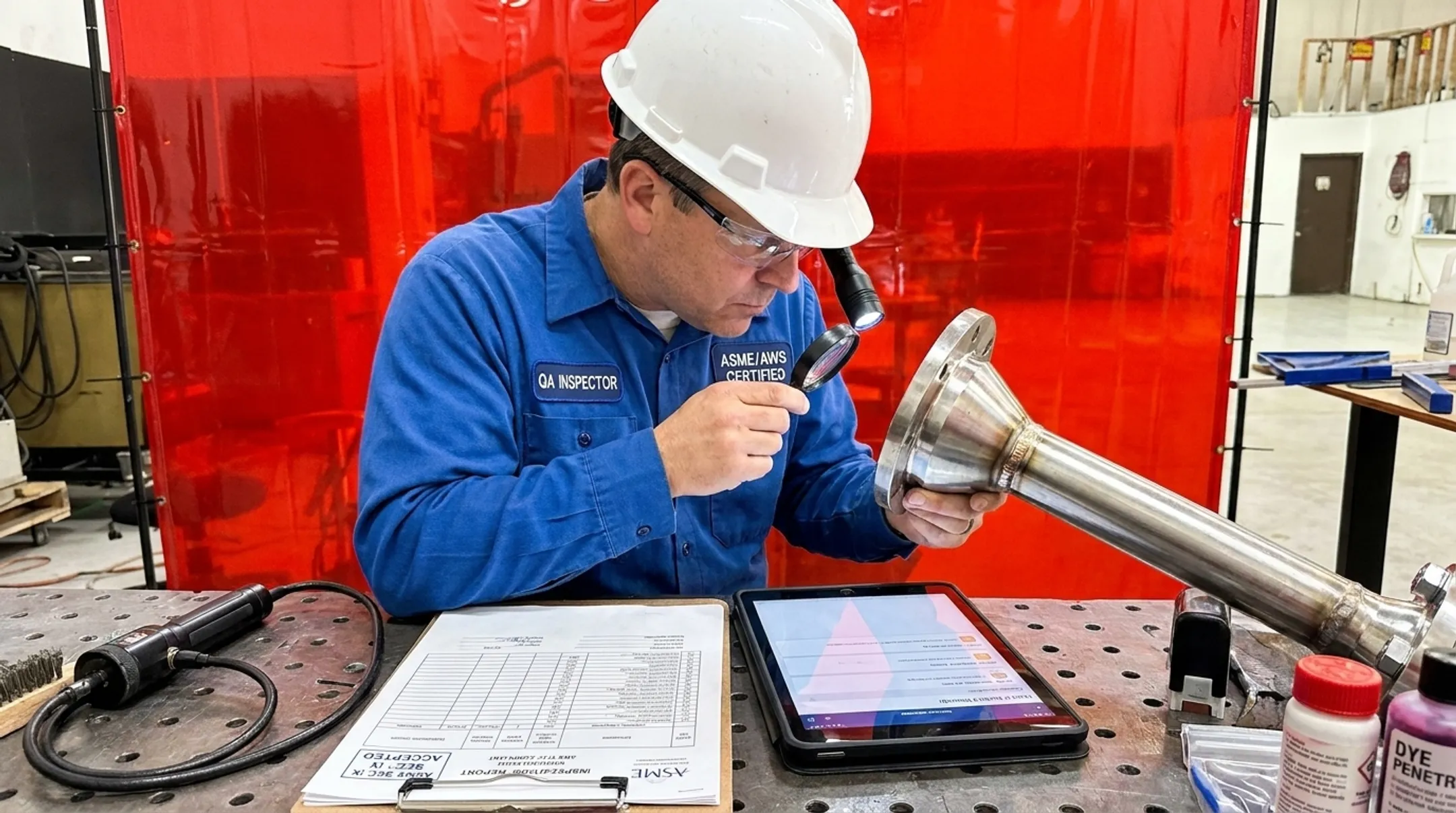

Alloy Metalworks is a Colorado-based fabricator holding both ASME Section IX and AWS D17.1 Class A certification. Led by Technical Director Chris Gavitt, the team welds Inconel 600, 601, 617, 625, and 718, plus Hastelloy and Incoloy 800HT, for aerospace, energy, and research clients including NREL and Utility Global.
Every weld runs through ISO 9001-controlled processes with full traceability. In this work, documentation is what proves a weld meets the standard it claims.
Frequently Asked Questions
Can nickel be welded?
Yes. Nickel and most nickel alloys are weldable using TIG, MIG, and stick welding. Success depends on proper surface cleaning, correct shielding gas, and a qualified procedure matched to the specific alloy.
What is nickel brazing?
Brazing joins metal parts without melting the base metal, using a filler with a liquidus above 840°F. Nickel-based brazing alloys are common in high-temperature service where a fusion weld isn't practical.
Is nickel alloy the same as Inconel?
No. Inconel is a trademarked family of nickel-chromium superalloys owned by Special Metals Corporation. It's one type of nickel alloy alongside others like Hastelloy and Monel, not a generic term for the category.
What is the effect of adding nickel to stainless steel?
Nickel stabilizes the austenitic structure in stainless steel, improving ductility, toughness, and formability. It also enhances corrosion resistance and weldability compared to non-nickel-bearing grades.
How much nickel is in 316 stainless steel?
316 stainless steel typically contains 10–14% nickel. That range stabilizes the austenitic structure and supports corrosion resistance; confirm exact limits in the current ASTM A240 specification for your grade.
Is pure nickel magnetic?
Yes. Bulk nickel is ferromagnetic, making it one of only a handful of elements that's easily magnetized at room temperature.
