Stainless steel, specifically 304L and 316L, is the industry's default answer for cryogenic service. Its austenitic structure keeps it ductile when other metals turn brittle. But getting that performance out of a weld joint requires procedures most general fabrication shops never touch.
This guide breaks down why stainless steel behaves differently at extreme cold, which welding processes and fillers actually hold up, what codes govern acceptance, and where cryogenic welds most often go wrong.
Key Takeaways
- 304L and 316L stainless steels retain ductility at cryogenic temperatures where carbon steel becomes dangerously brittle
- TIG welding is the standard choice for root passes due to clean fusion and minimal contamination
- Filler metal must be selected for validated low-temperature toughness, not just composition matching
- Charpy V-notch impact testing at service temperature qualifies welds for cold service, not room-temperature checks
- Working with a code-compliant welding provider cuts the risk of failure, rework, and compliance delays
What Are Cryogenic Steels and Why Does Stainless Steel Perform Best?
Cryogenic steels are alloys engineered to hold onto strength and toughness at extremely low service temperatures, generally below -50°C. They're what stands between a stable system and a catastrophic failure in LNG storage, hydrogen transport, and industrial gas handling for oxygen, nitrogen, and helium.
Ordinary carbon steel can't do this job. As temperatures drop, carbon steel undergoes a ductile-to-brittle transition — it stops bending and starts shattering, often without warning. That's a fracture risk no engineer wants near a pressurized cryogenic vessel.
Why Austenitic Stainless Resists the Cold
Austenitic stainless steels like 304L and 316L don't share that weakness. Their face-centered-cubic crystal structure, stabilized by chromium and nickel, keeps the material ductile down toward absolute zero.
According to NIST's cryogenic materials data, 304L property data extends down to 4 Kelvin. NIST's more recent review notes that 304 can still undergo strain-induced martensitic transformation under certain loading conditions, so testing the actual weldment still matters.

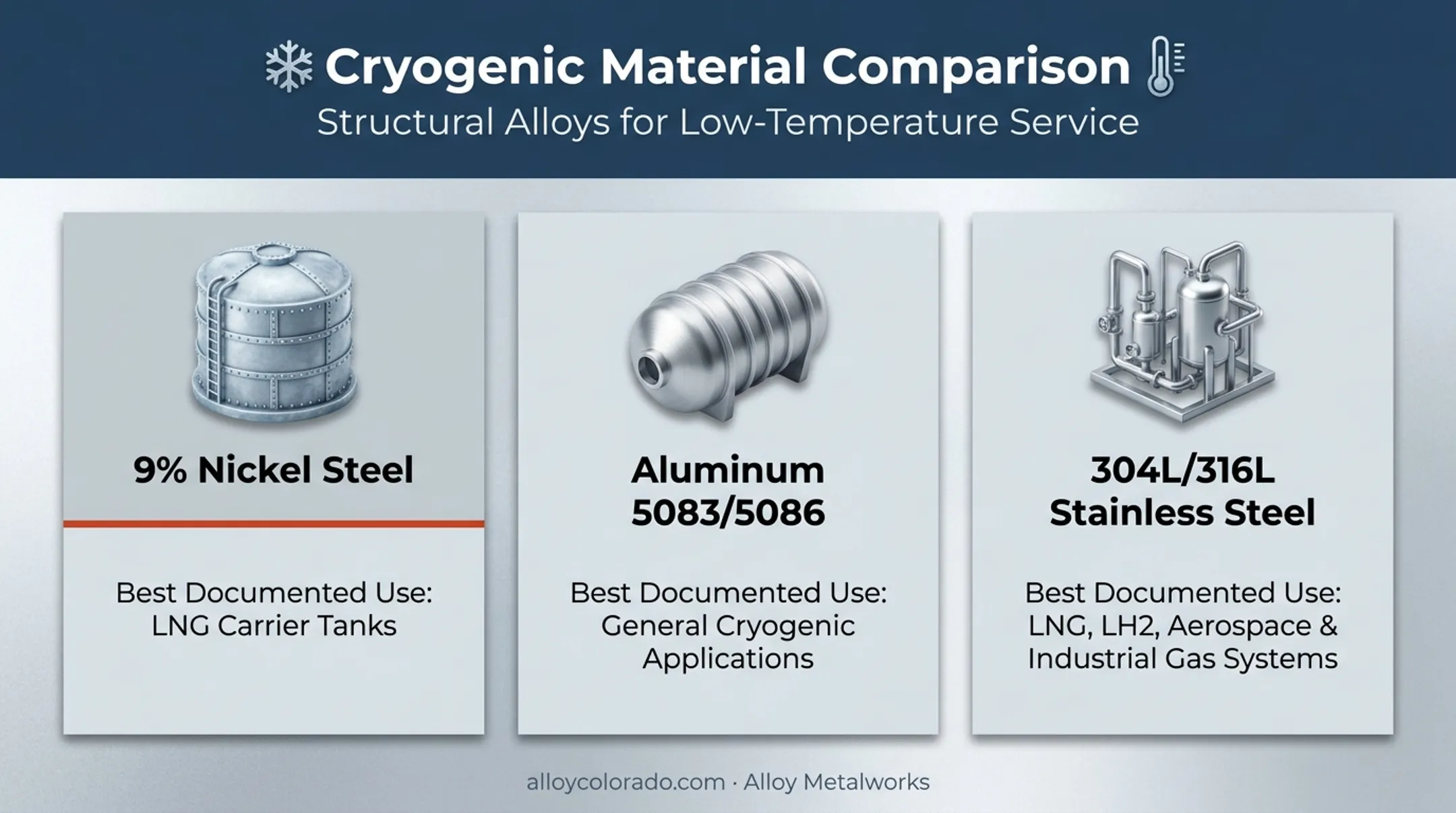

Alternative cryogenic materials worth knowing:
| Material | Best-documented use case |
|---|---|
| 9% nickel steel | LNG carrier containment tanks |
| Aluminum 5083/5086 | Cryogenic applications requiring specific qualification data |
| 304L/316L stainless | LNG, LH2, aerospace, industrial gas systems |
There's no single "best" cryogenic metal. The right choice depends on the fluid, the design temperature, and the qualification data behind the specific weld, not the alloy name alone.
That same dependence on qualified weld performance is why shops supporting hydrogen energy, cryogenic systems, and advanced energy infrastructure treat base-metal selection and weld procedure development as one decision, not two. It is the material context Alloy Metalworks works in when fabricating stainless assemblies for those systems.
Which Applications Rely on Cryogenic-Grade Stainless Steel?
- LNG storage tanks and cryogenic piping networks
- Hydrogen fuel storage and transport systems
- Laboratory cryostats and research cooling equipment
- Aerospace propellant lines and fuel systems
- Industrial gas processing (oxygen, nitrogen, helium)
Welding Processes and Filler Metal Selection for Cryogenic Stainless Steel

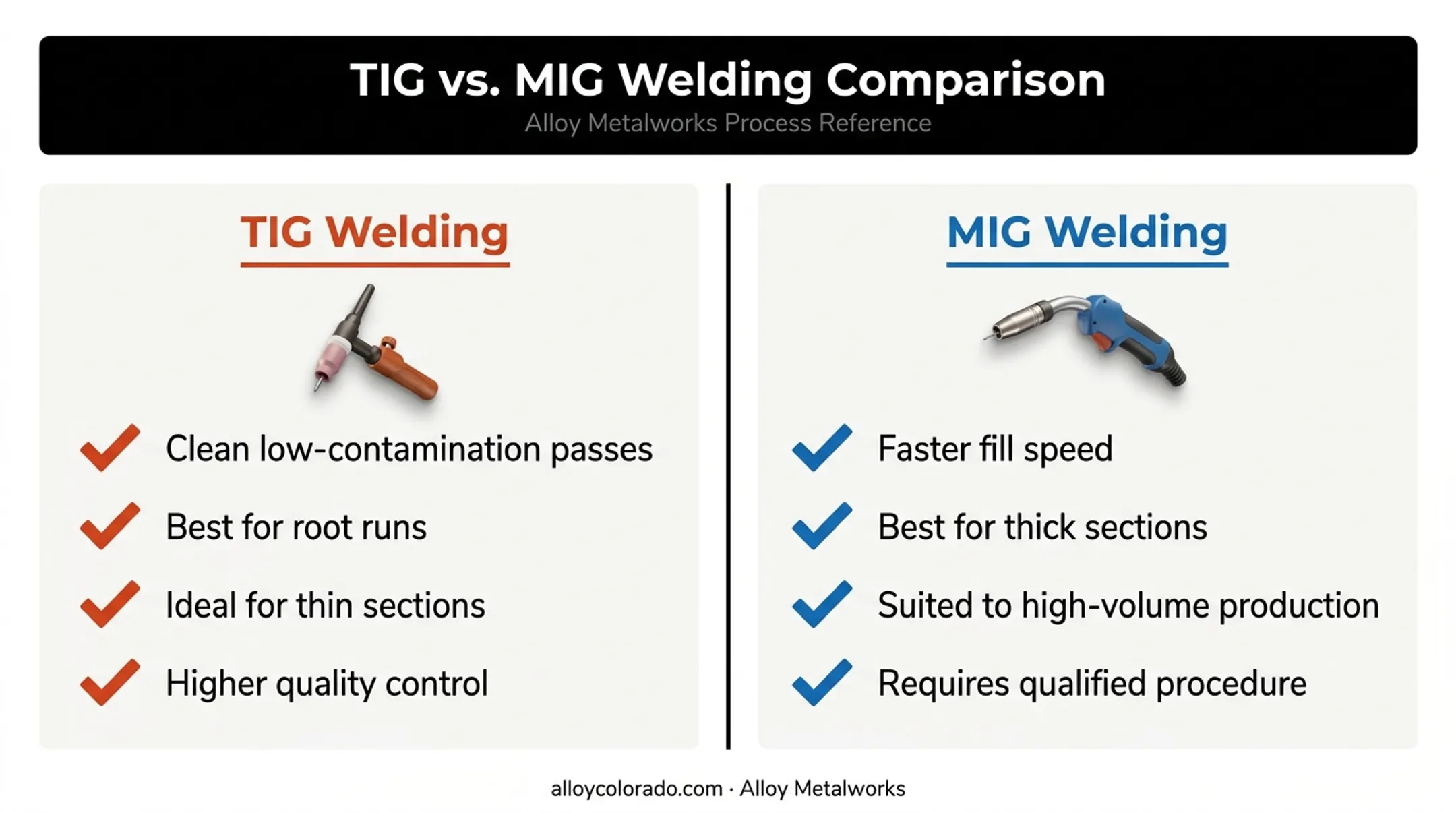

TIG vs. MIG: When Each Makes Sense
TIG (GTAW) welding is the default choice for cryogenic stainless joints. It produces clean, low-contamination root passes that are critical to weld integrity in cold service. ESAB's welding handbook recommends TIG for root runs on material over 5-6mm, followed by MIG or covered-electrode fill for the remainder.
MIG becomes viable for:
- Thicker wall sections where fill speed matters
- Higher-volume production runs
- Procedures that have been properly qualified for the application
The tradeoff is simple: TIG gives you quality control, MIG gives you speed. Neither is universally better. Choice depends on section thickness and production volume.
Filler Metal: Toughness Over Convenience
Filler metal should match or exceed base metal toughness at the lowest expected service temperature—not just match composition on paper. Shops that select only by chemistry often miss this.

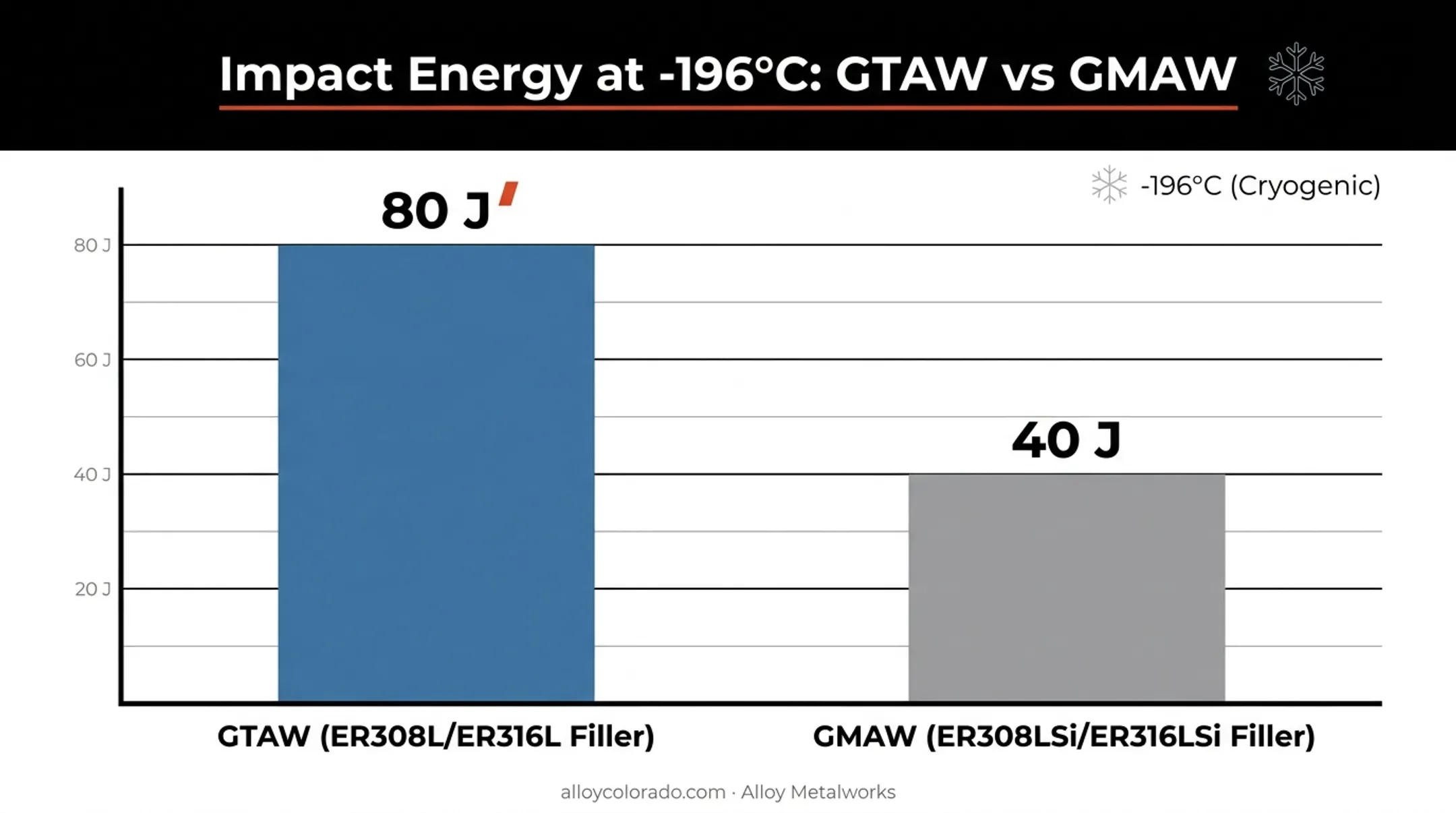

A widely cited comparison found that GTAW with ER308L or ER316L filler produced roughly 80 joules of impact energy at -196°C. GMAW with ER308LSi/ER316LSi filler produced roughly 40 joules under the same test conditions. That gap matters when a system depends on the toughness margin.
Ferrite content matters too. Industry LNG welding research points to a minimum of about 3 FN (ferrite number) to prevent hot cracking, while lower ferrite tends to improve low-temperature toughness. It's a balancing act, not a fixed number.
Nickel-based fillers aren't automatically tougher or safer. Research on liquid hydrogen tank welds found that nickel-based filler metals can introduce localized hydrogen embrittlement risk. Justify filler selection for the actual service environment—don't assume chemistry alone is enough.
Heat Input and Cleanliness Controls
Excessive heat input or poorly controlled interpass temperatures degrade toughness in the heat-affected zone, even when the weld looks fine visually. On complex builds, Alloy Metalworks develops weld procedures with controlled heat input and distortion limits so HAZ toughness holds up in service.
Cleanliness is the other half of process control:
- Remove all oil, grease, and moisture before striking an arc
- Maintain full shielding gas coverage throughout the weld
- Keep tools and gloves dedicated to stainless work only
Impurities directly reduce impact toughness in cryogenic welds. There's no cosmetic fix for a contaminated joint.
Quality Control: Testing, Codes, and Standards That Govern Cryogenic Welds
Room-temperature strength tells you almost nothing about how a weld will behave at -196°C (-321°F). That's why Charpy V-notch impact testing at the actual service temperature is the standard method for validating cryogenic weld toughness. A weld can pass every room-temperature check and still fracture in cold service.
WPS and PQR: The Paper Trail That Matters
A Welding Procedure Specification (WPS) and its supporting Procedure Qualification Record (PQR) document that a specific process-and-filler combination actually meets code requirements. Without this paperwork, there's no proof the weld was ever qualified for cryogenic conditions in the first place.
Codes worth knowing:
- ASME Section IX governs welding, brazing, and fusing qualifications, but it doesn't set one universal Charpy threshold for every job. The actual acceptance criteria come from the governing construction code and design conditions.
- AWS D1.6 covers structural stainless steel welding, but it specifically excludes pressure vessels and pressure piping. Know which code actually governs your application before assuming coverage.
- ASME Section VIII and B31.3 often set the impact-test temperatures and minimum toughness values for cryogenic vessels and process piping once the WPS is qualified.
Post-Weld Non-Destructive Testing
Post-weld NDE, including radiography and dye penetrant testing, catches porosity, inclusions, and micro-cracks before a system ever sees cryogenic service. No single method finds every defect type, which is why governing codes typically specify a combination.

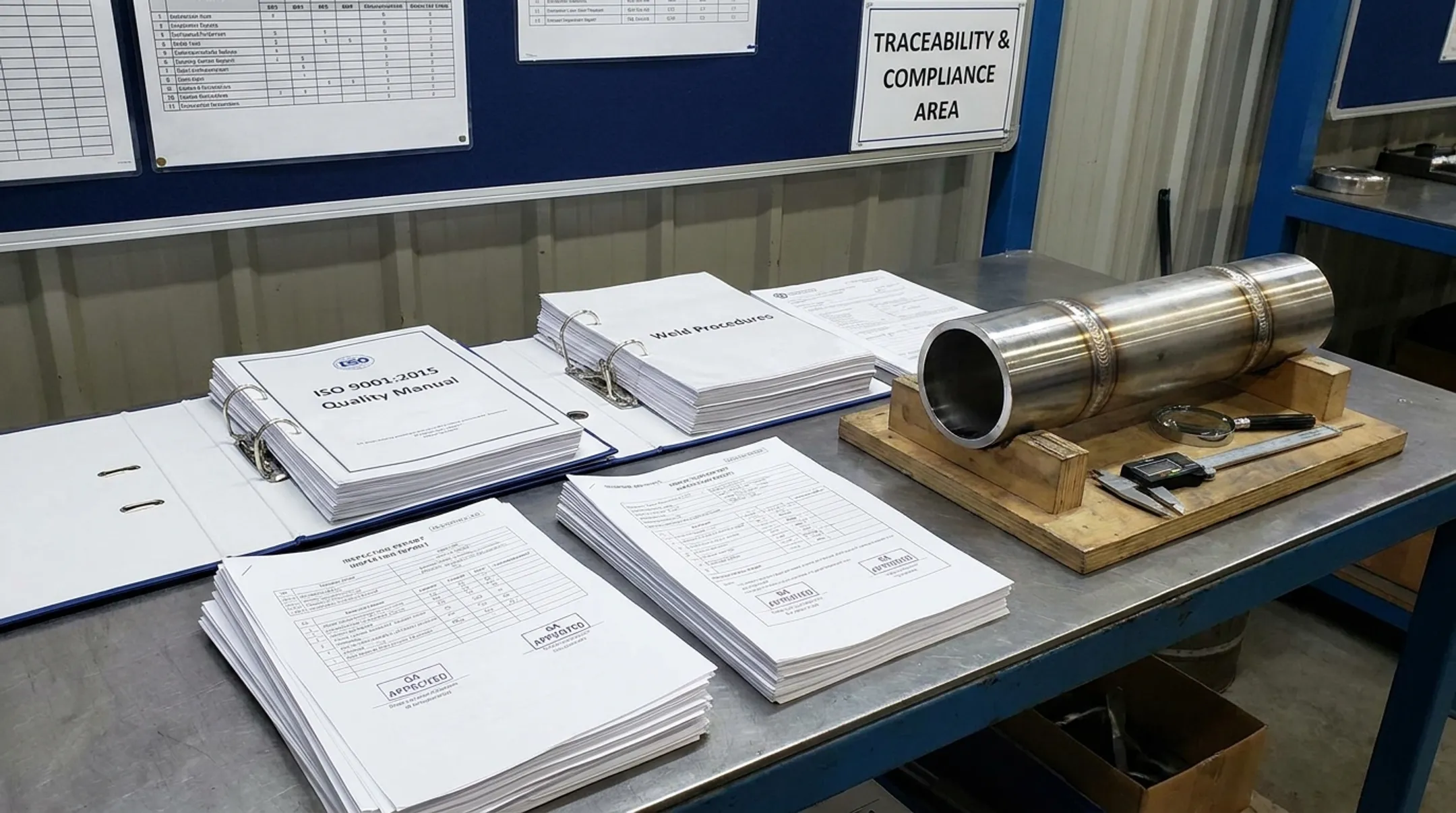

Alloy Metalworks operates under ISO 9001-controlled processes with ASME Section IX certification, along with documentation and traceability practices built for aerospace, energy, and research clients who face this compliance burden. That paper trail (WPS, PQR, inspection records) is often what separates an audit-ready weld from a costly rework cycle.
Common Mistakes That Compromise Cryogenic Stainless Steel Welds
Three shop-floor habits show up again and again in failed cryogenic stainless welds:
- Wrong filler by habit: Defaulting to ER308L because "that's what we always use" skips confirming toughness at your actual service temperature.
- Heat input drift: A weld can look fine at room temperature while the HAZ has already lost toughness from high interpass temperatures.
- Contamination: Residue from tools, gloves, or poor gas coverage leaves porosity and inclusions that act as stress concentrators under load.
None of these mistakes look dramatic during fabrication. They stay quiet until cold service, which is why qualified procedures and documented low-temperature testing are non-negotiable.
Frequently Asked Questions
What are cryogenic steels?
Cryogenic steels are alloys engineered to maintain toughness and ductility at extremely low temperatures. This category commonly includes austenitic stainless steels, 9% nickel steel, and select aluminum alloys.
Why is stainless steel preferred for cryogenic applications over carbon steel?
Carbon steel undergoes a ductile-to-brittle transition at low temperatures, making it prone to sudden fracture. Austenitic stainless steel retains its ductility across the same temperature range.
Is TIG or MIG welding better for cryogenic stainless steel?
TIG offers greater precision and is standard for root passes and thinner sections. MIG can be a viable, more productive option for thicker sections once the procedure is properly qualified.
What certifications should a welding provider have for cryogenic and aerospace work?
Look for ASME Section IX, AWS D17.1 for aerospace work, and an ISO 9001 quality management system. These show documented, qualified welding processes with traceability.
Does cryogenic welding require impact testing?
Yes, typically. Charpy V-notch impact testing at the actual service temperature is how welds get validated for toughness, since room-temperature results don't reliably predict cold-service behavior.
What happens if the wrong filler metal is used in a cryogenic weld?
A mismatched filler can produce a weld with insufficient low-temperature toughness, making it prone to cracking or sudden brittle failure under cold, high-stress service conditions.
