Introduction
6061-T6 aluminum shows up everywhere: aircraft brackets, structural framing, energy equipment, marine components. It's strong, lightweight, and corrosion-resistant. It's also deceptively hard to weld well.
The T6 temper gives this alloy its peak strength through heat treatment. Welding disrupts that treatment.
A tenacious oxide layer melts at roughly 3,700°F while the aluminum underneath melts at just 1,200°F. Miss that gap, and welds crack, go porous, or lose structural integrity.
This article covers what makes 6061-T6 tricky, how to choose the right filler and process, technique that prevents common defects, and when the job calls for certified expertise instead of a DIY approach.
Key Takeaways
- 6061-T6 requires 4043 or 5356 filler — never 6061 filler wire, which cracks badly
- Welding always softens the heat-affected zone (HAZ), with strength losses that can exceed 50%
- TIG suits thin, cosmetic, or critical joints; MIG works better for thick sections and volume production
- Rigorous cleaning and heat control prevent the most common defects: porosity and hot cracking
- Flight-critical or code-compliant parts need documented, certified welding procedures
What Is 6061-T6 Aluminum and Why Is It Hard to Weld?
6061 is an aluminum alloy strengthened with magnesium and silicon, plus small amounts of copper and chromium. The "T6" designation means it's been solution heat-treated, quenched, and artificially aged, a process that builds precipitates in the metal's structure to maximize strength. That structure is exactly what welding heat disturbs.

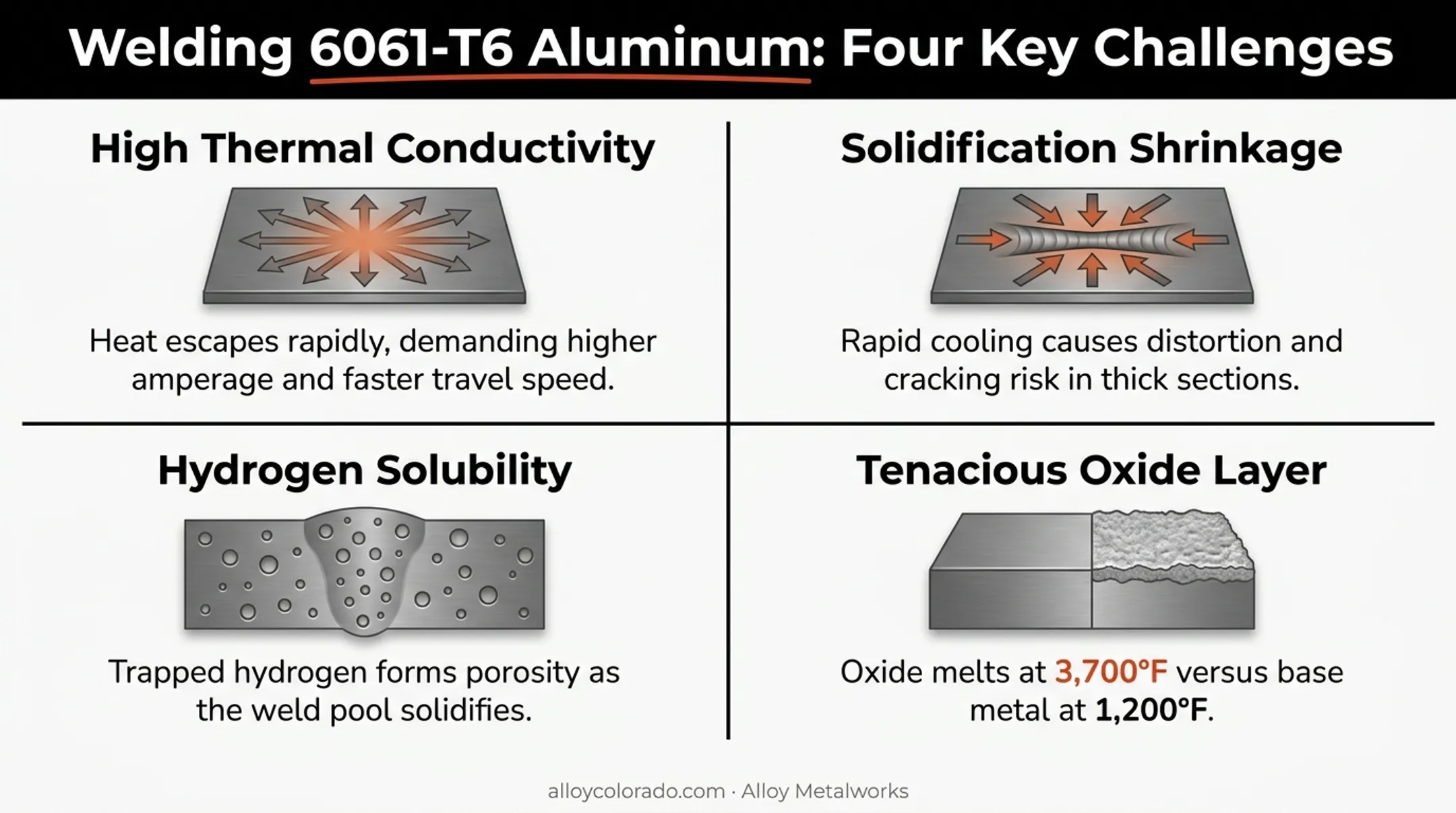

Four Reasons This Alloy Fights Back
- High thermal conductivity — heat dissipates fast into surrounding metal, so you need significant heat input just to establish a weld pool
- High solidification shrinkage — aluminum contracts substantially as it cools, driving cracking risk
- Hydrogen solubility — molten aluminum absorbs hydrogen readily, then rejects it during solidification, causing porosity
- Tenacious oxide layer — oxide melts far hotter than the base metal, so the skin can hide unmelted aluminum underneath
Aluminum oxide melts at roughly 3,700°F, while the base metal underneath melts around 1,200°F, per Lincoln Electric's welding guide. That gap lets the oxide skin trap unmelted metal beneath a clean-looking surface.
NASA's materials handbook on 6061 notes that fillerless fusion welding carries a high cracking tendency and isn't recommended. Filler metal is required here as structural insurance.
Common Applications Requiring Reliable Welds
6061-T6's strength-to-weight ratio makes it a go-to choice for:
- Aircraft fairings and landing mats
- Marine structures and fittings
- Electrical couplings and valves
- Liquid-rocket motor components
- Architectural and structural framing
In every one of these, a bad weld isn't cosmetic. It's a failure point.

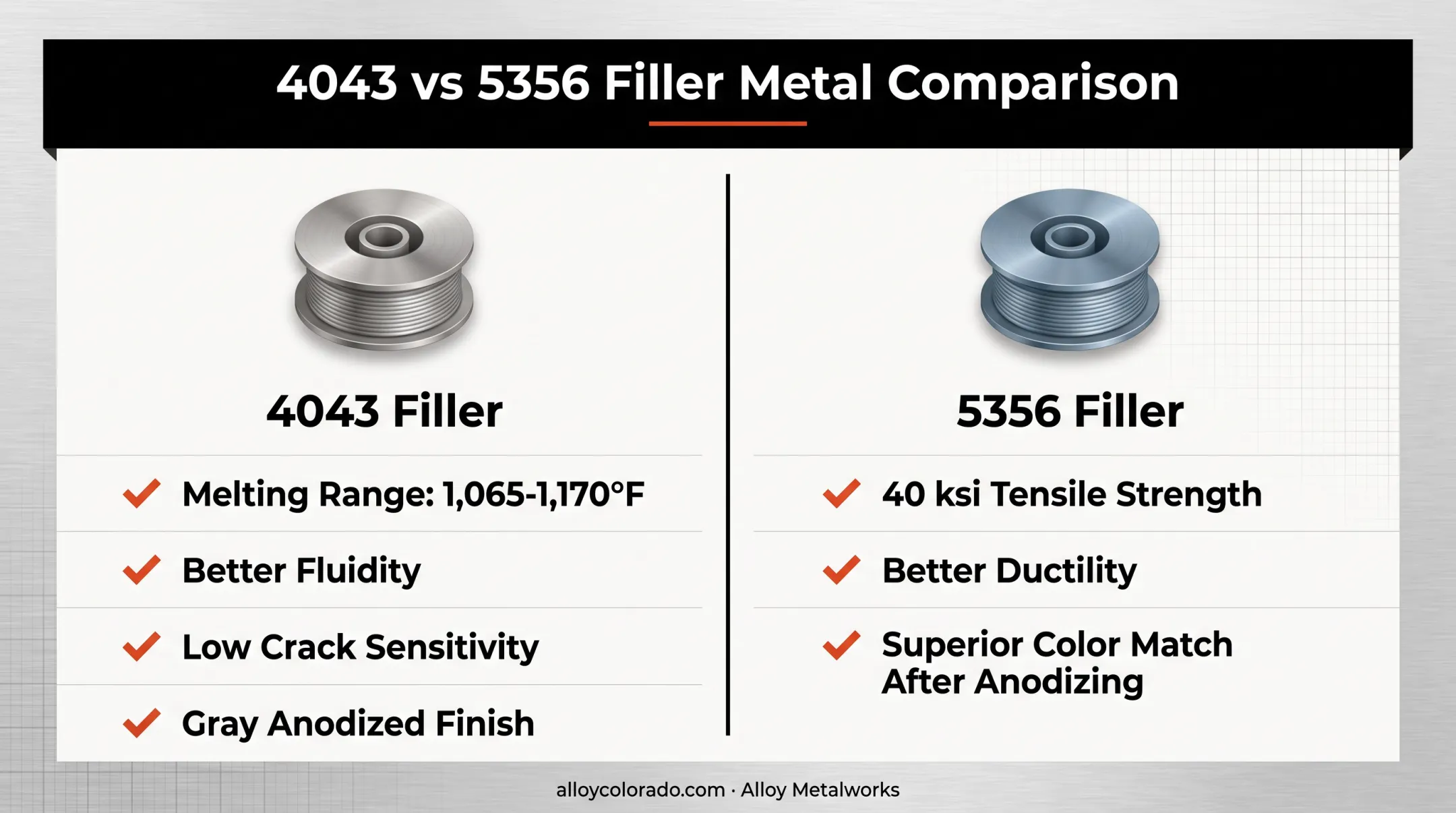

Choosing the Right Filler Metal
Never weld 6061-T6 with 6061 filler wire. The chemistry is too similar to the base metal, and that similarity produces hot cracking during solidification. Instead, fabricators rely on two workhorse fillers.
4043: The General-Purpose Choice
Aluminum-silicon filler chosen when crack resistance and weldability come first.
- Lower melting range (roughly 1,065–1,170°F solidus to liquidus)
- Better fluidity, less crack sensitivity on 6000-series base metal
- Turns gray after anodizing — noticeable on cosmetic parts
5356: The Strength Play
Aluminum-magnesium filler chosen when strength and finish matter more.
- Higher tensile strength (around 40 ksi typical)
- Better ductility and toughness
- Better color match after anodizing against 6061 base metal
Lincoln Electric's guidance puts it simply: if maximum electrical conductivity matters, use 4043. If you need both strength and conductivity, use 5356 and increase weld reinforcement to offset its lower conductivity.
Filler selection isn't about which spool is on the shelf. Drive the choice from the part's job:
- Structural load-bearing requirements
- Anodized finish and color-match needs
- Electrical conductivity targets
- Elevated-temperature service conditions

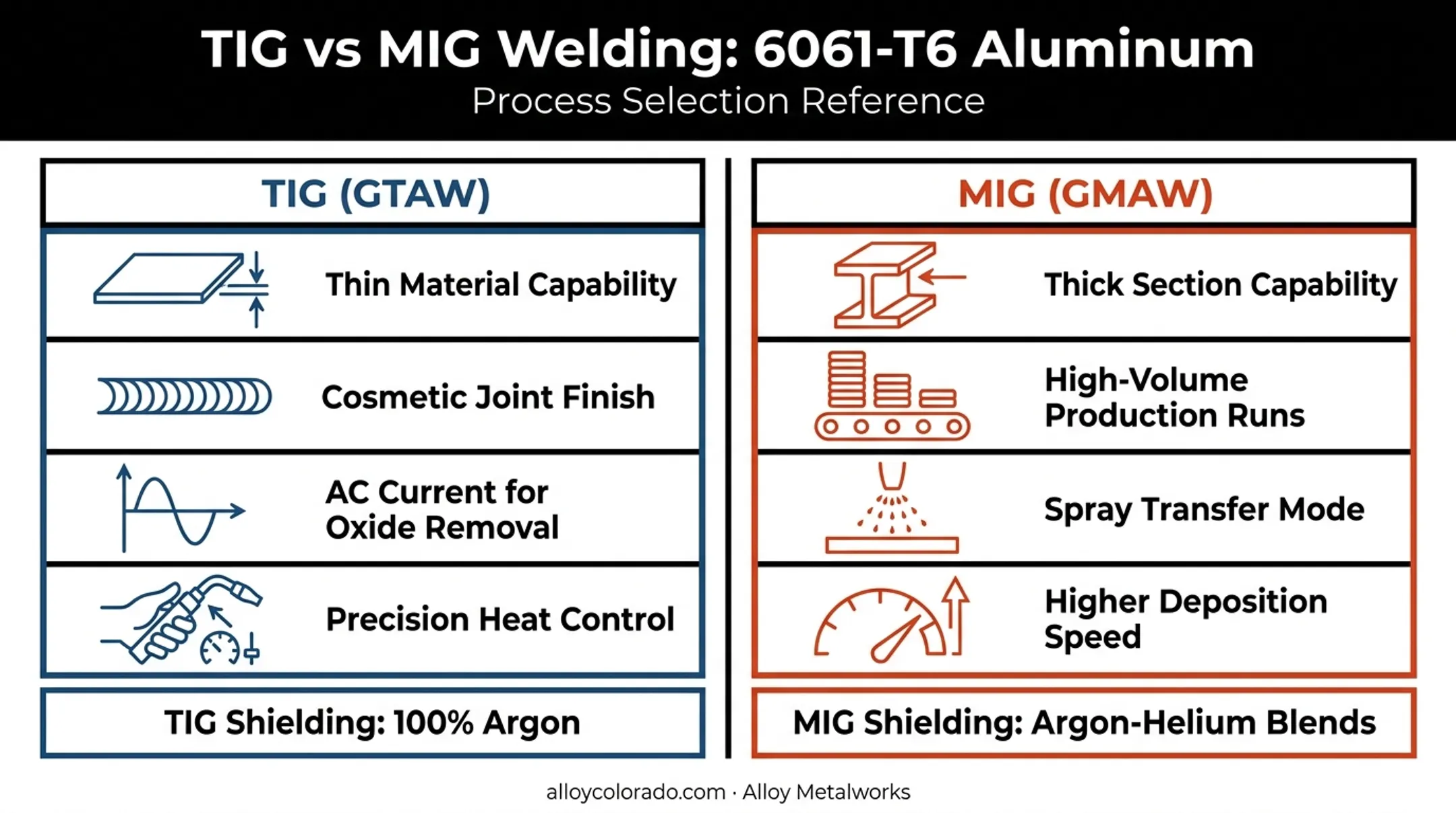

TIG vs. MIG Welding for 6061-T6
Both processes work on 6061-T6. The right choice depends on thickness, volume, and how critical the joint is.
TIG (GTAW): Precision Control
TIG welding uses AC current specifically to break up the oxide layer through the cleaning action of the reverse polarity half-cycle. It's the preferred process for:
- Thin material
- Cosmetic or critical joints
- Situations demanding tight heat control
Filler metal is mandatory in GTAW on 6061-T6. Autogenous (fillerless) welds crack, as NASA's handbook confirms.
Amperage scales with thickness and position. As a general reference point for AC TIG on aluminum, Linde's settings chart lists roughly 70–80 amps for 1/16-inch material up to 235–260 amps for 1/4-inch stock in flat position.
Actual settings shift with joint design, alloy, and welding position. Hand or foot amperage control matters because heat accumulates as you weld, and the current that started the bead often needs to come down.
MIG (GMAW): Speed for Thicker Sections
MIG welding, run in spray transfer mode, deposits filler faster and suits:
- Thicker sections
- Production runs
- Situations where deposition speed matters more than cosmetic finish
Because GMAW inherently feeds filler wire, cracking from fillerless welding isn't a concern the way it is with TIG.
Shielding Gas Selection
| Gas | Best For |
|---|---|
| 100% argon | Thin material, most common choice for both processes |
| Argon-helium blends (up to 75% helium) | Thicker sections needing deeper penetration and reduced porosity |
Hobart Brothers notes helium above 25% in TIG can cause arc instability, so blends need to be dialed in carefully rather than maxed out.

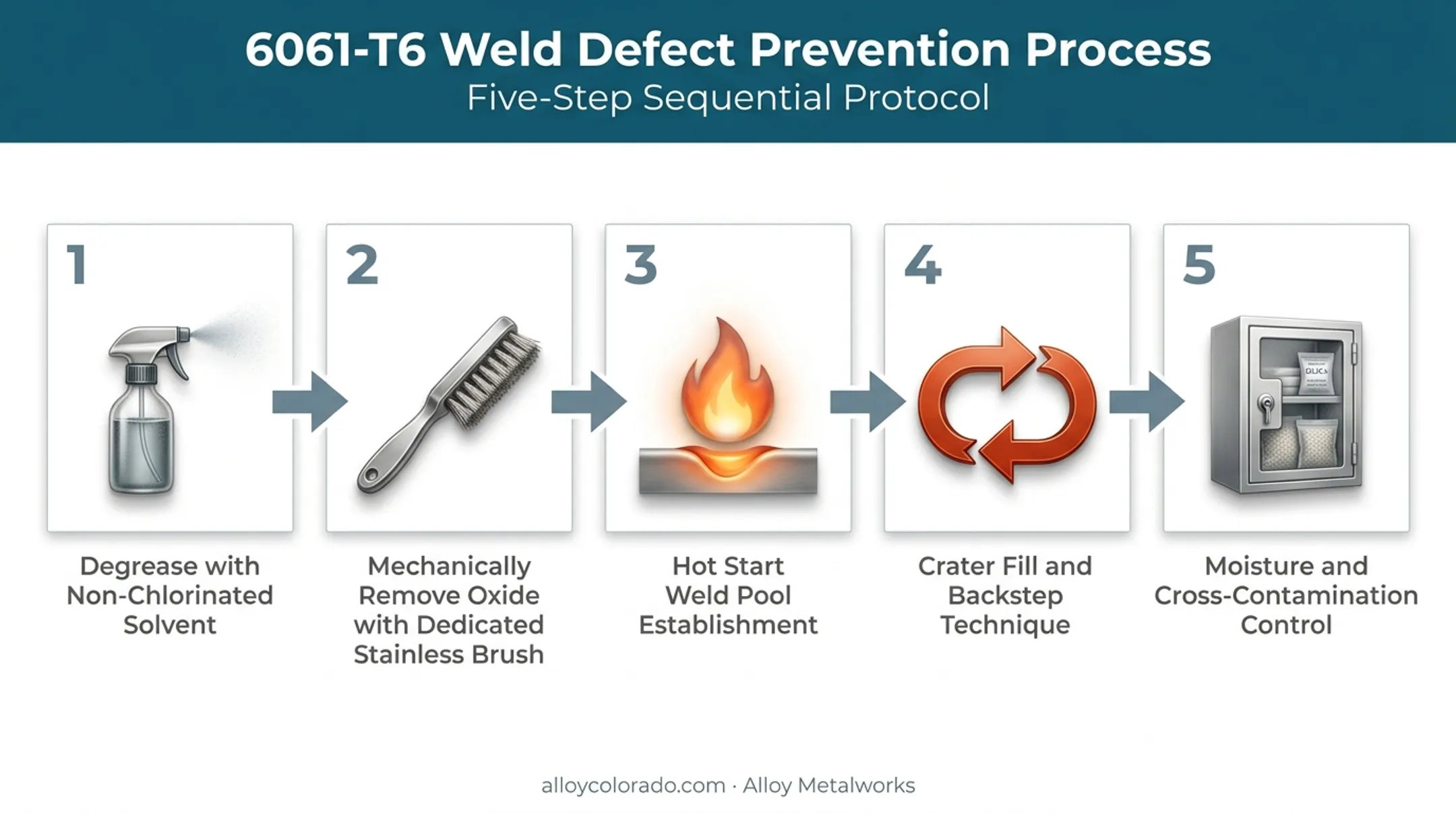

Preparation and Technique to Prevent Common Defects
Most 6061-T6 weld failures trace back to two things: contamination and poor heat management. Fix those, and you eliminate the majority of defects before you even strike an arc.
The Cleaning Sequence Matters
- Degrease first with a non-chlorinated solvent to remove oils and hydrocarbons
- Mechanically remove oxide afterward with a dedicated stainless-steel wire brush
Miller Electric's guidance is explicit: brushing before degreasing can embed hydrocarbons into the surface instead of removing them.
Heat Input and Crater Control
Aluminum's high thermal conductivity means you need to weld hot and fast to overcome heat loss into the surrounding base metal. Cold starts and crater cracks are common failure points, so:
- Use hot start features to establish the weld pool quickly
- Use crater fill or backstep technique at termination points to prevent solidification cracking
- Adjust current downward as preheat accumulates through the joint
Moisture and Contamination Control
- Store filler wire in a dry location with minimal temperature swings
- Keep gas lines clean and leak-free
- Bring cold material into the shop ahead of welding to avoid condensation
One overlooked issue: cross-contamination from shared abrasives. Grinding discs or brushes used on carbon steel and then on aluminum transfer embedded particles that cause porosity and discoloration. Dedicated, labeled consumables per alloy aren't optional in a serious shop.
Joint Design and Fixturing
Thicker material calls for V-groove prep. Non-ferrous clamps and backing bars reduce distortion and prevent contamination from ferrous fixturing tools.

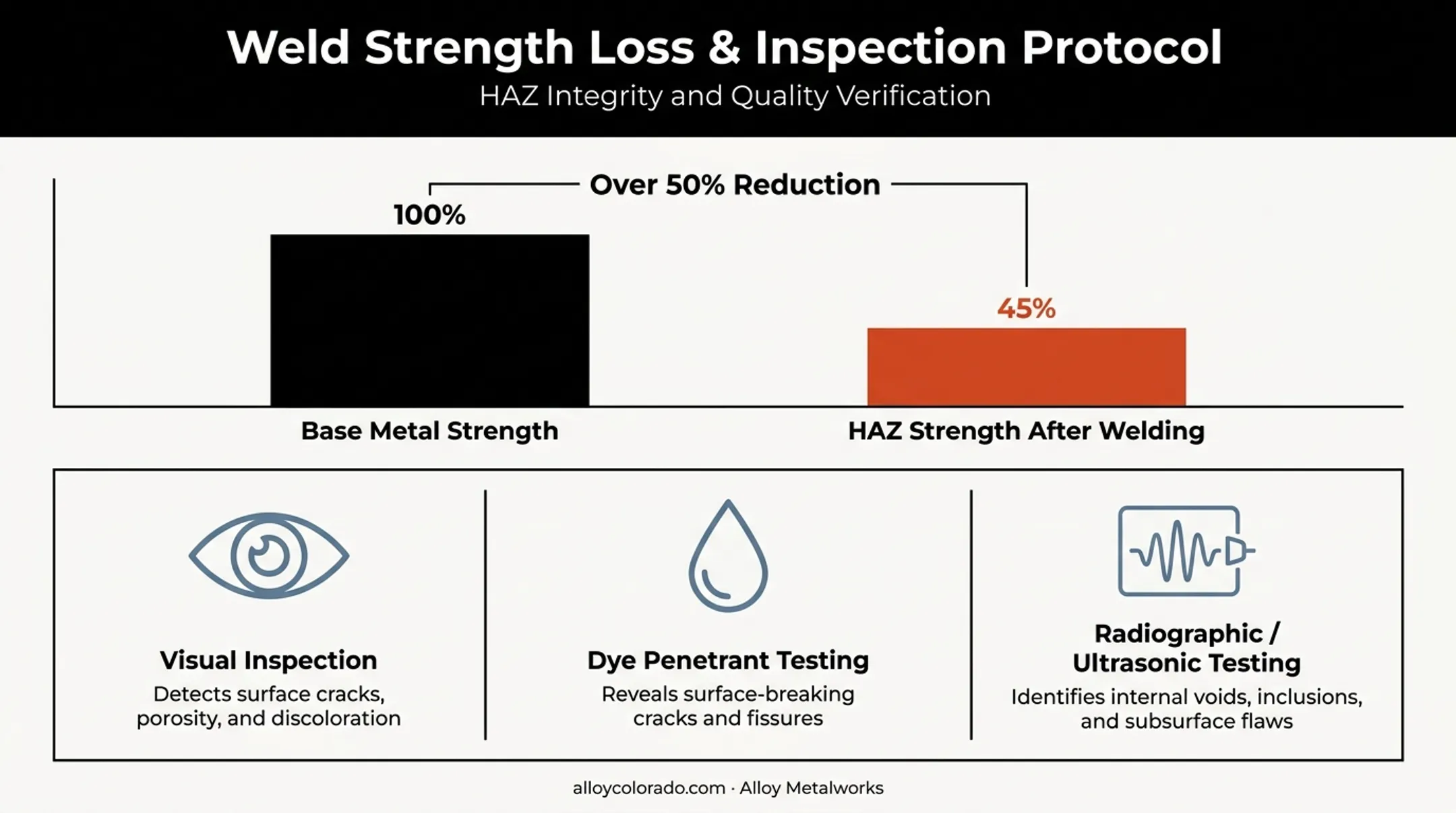

Post-Weld Strength Recovery and Quality Verification
Welding softens the HAZ. A 2011 peer-reviewed study on welded 6061-T6 found ultimate strength cut by more than 50% versus base material in the tested joint, driven by precipitate transformation during heating.
NASA's handbook similarly found welded specimens failing at the weld edge or in annealed zones that don't respond to standard aging.
Recovery is possible in some cases. According to Hydro, welded 6061 can be re-solution-heat-treated and artificially aged again to restore strength, though this needs furnace access and careful process control. It isn't always practical for large or assembled structures.
When full heat-treat recovery isn't an option, inspection becomes the main safeguard for joint integrity.
Inspection Methods for Critical Applications
- Visual inspection — catches surface defects, undercut, and profile issues
- Dye penetrant testing — reveals surface-breaking cracks invisible to the eye
- Radiographic or ultrasonic testing — finds internal porosity, inclusions, and subsurface cracking
For code-compliant work, AWS D1.2 governs structural aluminum welding. Unlike some codes, D1.2 has no prequalified procedures: every joint detail and welding procedure must be individually qualified and documented in a written WPS, per ESAB's summary of the code.
When to Bring In Certified Welding Expertise
A good-looking weld is not automatically certified, documented, and traceable. Flight-critical hardware, energy infrastructure, and research equipment built in 6061-T6 typically need qualified procedures, not just skilled hands.
That's the gap Alloy Metalworks fills. As an FAA Certified Repair Station with AWS D17.1 Class A, AWS D1.2 structural aluminum, and ASME Section IX credentials, the Colorado-based shop supports aerospace, energy, and advanced manufacturing clients with inspection-ready aluminum welding.
Documentation, engineering collaboration, and controlled procedures sit behind that work. Clients such as Fortius Metals have put those welds through radiographic testing and macroscopic evaluation, and the aerospace process runs on documented procedures built for development-program requirements.
Loop in a certified partner when the job involves:
- Flight-critical hardware
- Pressure boundaries
- Any application where weld failure carries real consequences
In those cases, 6061-T6 welding should not be an afterthought.
Frequently Asked Questions
Can 6061-T6 aluminum be welded?
Yes, but it requires filler metal (4043 or 5356) and will lose strength in the heat-affected zone. Proper technique and, in some cases, post-weld heat treatment help manage that strength loss.
Is there a difference between 6061 and 6061-T6?
6061 refers to the alloy's chemical composition. T6 denotes the heat treatment (solution treated and artificially aged) that gives the alloy its peak strength before welding disrupts it.
Is 5052 or 6061 better for welding?
5052 isn't heat-treatable, so it retains more of its as-welded strength. 6061-T6 has higher base strength but loses more strength in the HAZ, so which alloy fits better depends on your application.
What is the best welding rod for 6061 aluminum?
4043 suits general-purpose and anodized cosmetic work well. 5356 is the better call for structural and marine applications needing higher strength and better color match.
What setting do you TIG weld aluminum in?
AC current is standard: it breaks up the oxide layer through its cleaning cycle. Amperage should scale with material thickness, and a tight arc length helps maintain consistent penetration and control.
