This guide breaks down what a WPS actually is, how it gets qualified, how it differs from a PQR and WPQ, which codes govern it, and what to look for in pipe welding and electrode selection. Alloy Metalworks develops and validates WPS documents under ASME Section IX and AWS codes for aerospace, energy, and advanced manufacturing clients across Colorado, so this comes from the shop floor, not a textbook.
Key Takeaways
- A WPS is a tested instruction set that defines how to produce welds meeting required mechanical and quality standards.
- Every qualified WPS needs a supporting PQR, and the welder needs a WPQ to run it.
- ASME Section IX, AWS D1.1, and AWS D17.1 each set different essential variables and testing rules.
- Missing or incomplete WPS documentation commonly triggers failed inspections and costly rework.
What Is a Welding Procedure Specification (WPS)?
A WPS is a controlled, written document that spells out exactly how a code-compliant weld gets made: process, materials, parameters, and technique, all in one reference that the welder follows at the station.
Industries that require a WPS include:
- Pressure systems and process piping (ASME Section IX)
- Structural steel, aluminum, and stainless fabrication (AWS D1.1, D1.2, D1.6)
- Aerospace and flight-critical hardware (AWS D17.1)
- Sanitary and hygienic stainless systems (AWS D18.1)
Core Components of a Typical WPS
A usable WPS typically documents:
- Welding process (SMAW, GTAW, GMAW, etc.)
- Base metal and filler metal specifications
- Joint design and welding position
- Preheat and interpass temperature
- Current, voltage, and travel speed
- Shielding gas type and flow rate
- Post-weld heat treatment (PWHT), if required
Why Essential Variables Matter
Each code defines certain essential variables: factors like base metal grouping, filler classification, or heat input that can't be changed without requalifying the entire procedure. Swap the shielding gas or bump the amperage outside the qualified range, and the WPS is no longer valid for that joint.
Real projects show the cost of skipping this step. In one documented case, a piping system failed inspection after the original contractor couldn't produce the WPS, weld records, or welder qualifications.
The system had to be rebuilt from scratch and reinspected to ASME B31.3 with visual and magnetic particle testing. Without a WPS, there was no proof the joints met code, so the only fix was a full teardown.

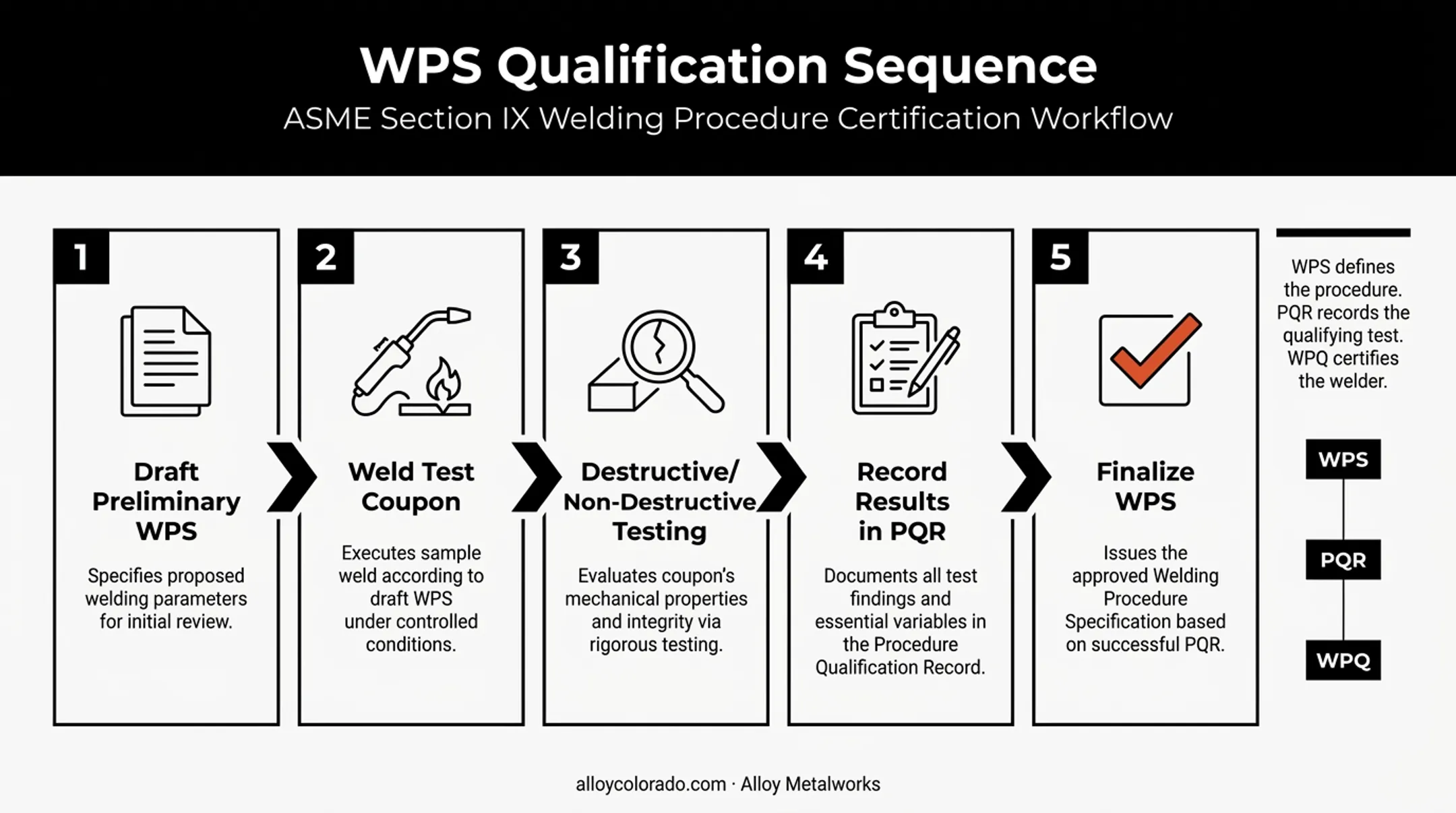

How a WPS Is Qualified (WPS, PQR, and WPQ Explained)
Qualifying a WPS follows a specific sequence, and skipping steps is how shops end up with procedures nobody can defend during an audit.
- Draft a preliminary WPS (pWPS) outlining proposed variables and parameters.
- Weld a test coupon using those exact conditions.
- Test the coupon destructively (bend, tensile) and non-destructively (radiographic, visual).
- Record the results in a PQR (the Procedure Qualification Record).
- Finalize the WPS with qualified parameter ranges backed by that data.
Here's how the three documents relate:
Document What It Is What It Proves WPS The written procedure How to weld it PQR The test record That the procedure works WPQ Welder qualification That this specific welder can execute it In short, the WPS is the recipe, the PQR is the taste test that proves the recipe works, and the WPQ is the chef's license to cook it. Some codes, like AWS D1.1, allow prequalified WPS paths under proven conditions, letting fabricators skip new testing if the variables fall within established limits. That path still requires essential variables to match the established limits exactly. Alloy Metalworks' ASME Section IX and ISO 9001-controlled processes keep WPS, PQR, and WPQ records traceable and audit-ready, which matters most when a client's inspector shows up asking for proof, not promises.
Common Welding Codes and Standards Governing WPS
The applicable code depends on the industry, not the fabricator's preference:
- ASME Section IX governs pressure vessel and piping welding qualification in the US, forming the qualification framework that other pressure-related codes reference.
- AWS D1.1 covers structural carbon and low-alloy steel; AWS D1.2 covers structural aluminum; AWS D1.6 covers structural stainless steel. Each defines its own essential variables.
- AWS D17.1 governs flight-critical aerospace welding with stricter documentation. Class A work can reject a weld for surface discoloration even after it passes destructive testing.
- AWS D18.1 governs sanitary and hygienic stainless systems used in food, beverage, and pharmaceutical processing.
A client's contract or regulatory body usually dictates which code applies — the fabricator's job is meeting it, not picking it.
WPS for Pipe Welding
Pipe welding WPS documents include requirements beyond flat-plate procedures:
- Wall thickness ranges and diameter groups that define the qualified scope

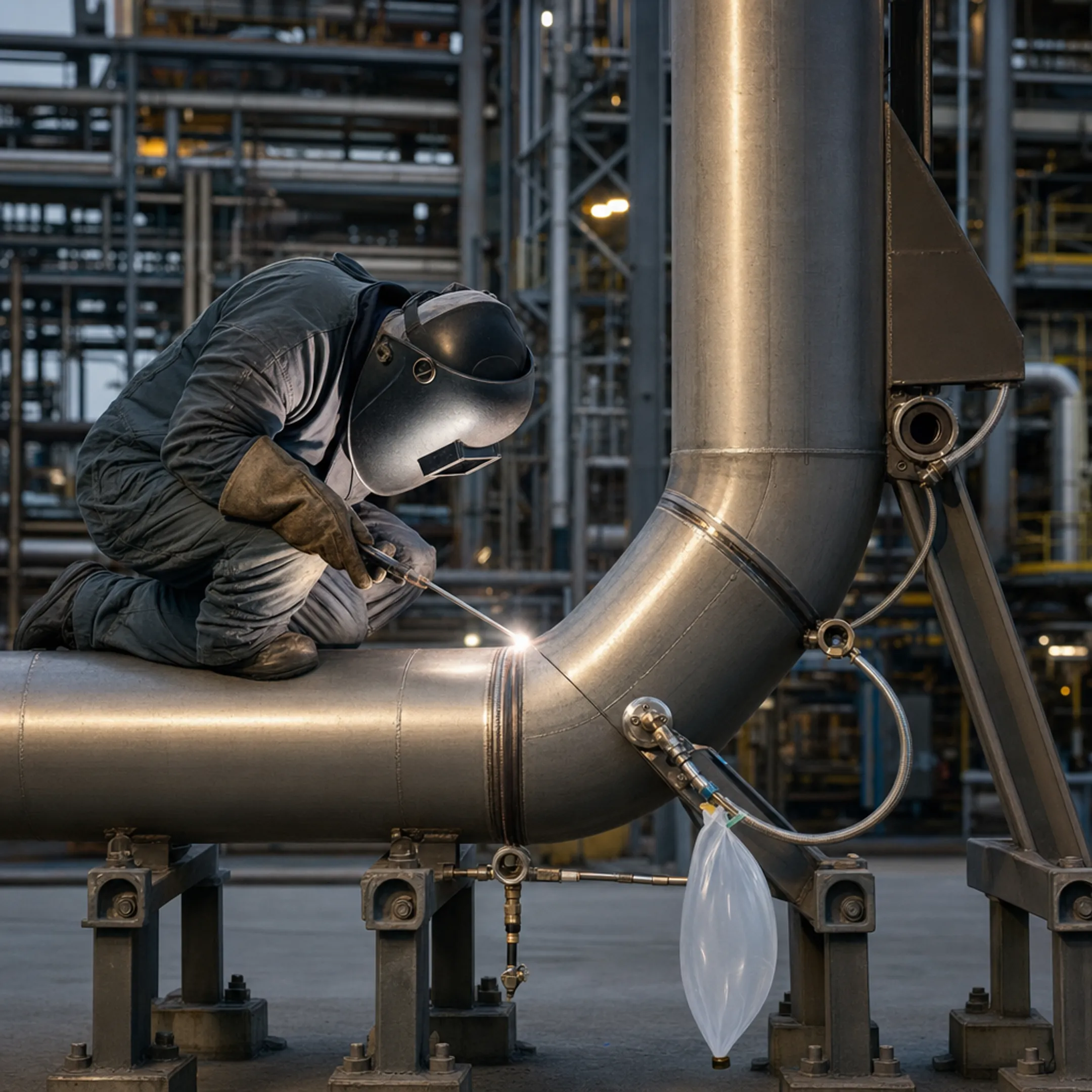

- Welding position, including the demanding 6G fixed position often required for critical piping
- P-number material groupings under ASME Section IX that determine which base metals a procedure covers
- Backing and purge gas requirements, plus root pass technique, to prevent contamination on the inside of the pipe
For energy and process piping work, third-party PQR verification is common on critical joints. That checkpoint happens before the system goes into service.
Alloy Metalworks fabricates process piping and fluid transport systems for energy and industrial clients under ASME Section IX-qualified procedures. Getting the root pass and purge setup right the first time avoids reopening a joint later.

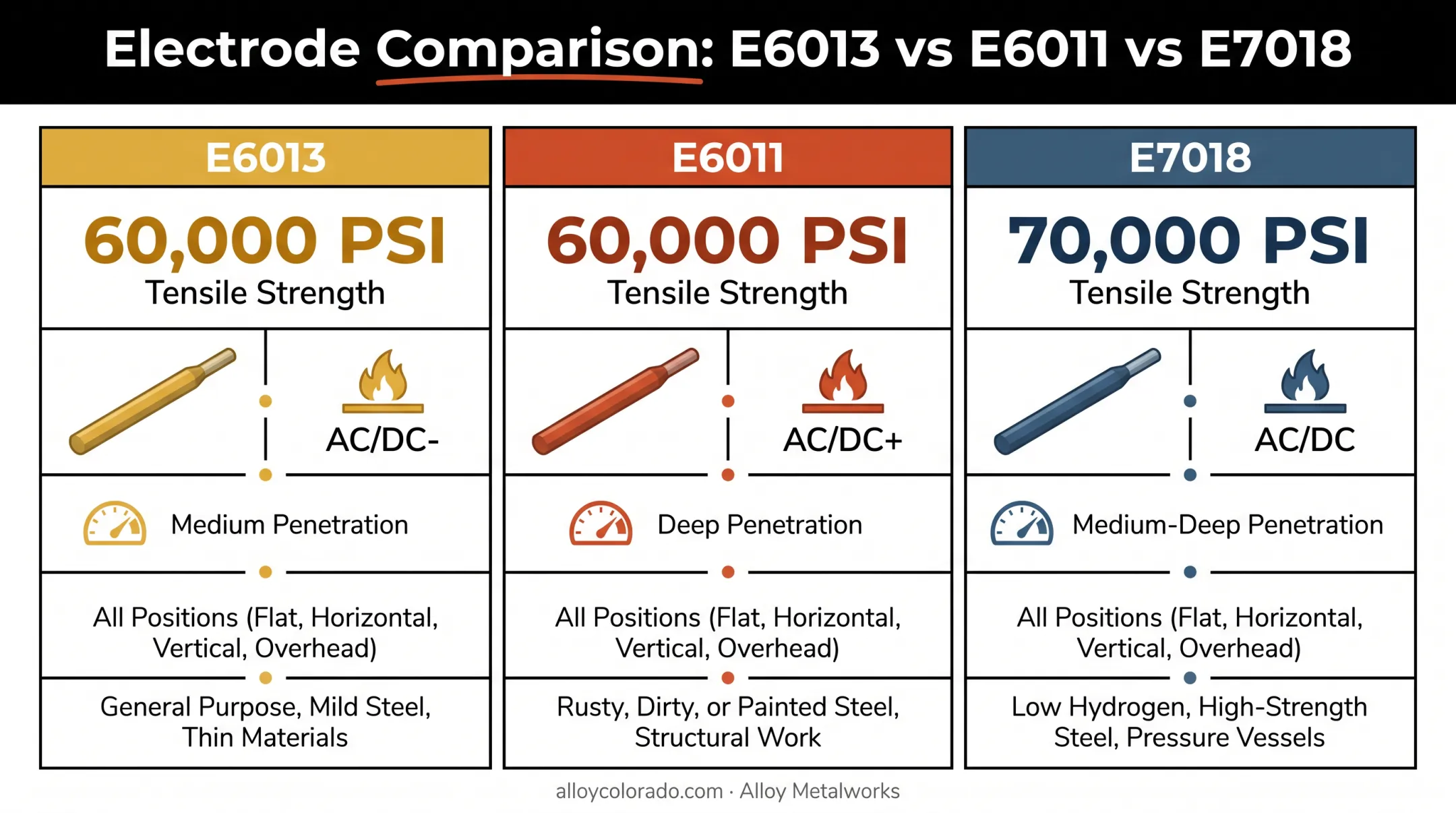

Understanding Electrode Classifications (E6013, E6011, E7018)
Electrode numbers under AWS classification standards encode tensile strength, position capability, and current type. In E7018, for example, 70 means 70 ksi minimum tensile strength, 1 means all-position, and 8 indicates a low-hydrogen coating and DC current. A WPS specifies the exact classification for a reason: swap electrodes and you change the weld's mechanical properties, which can invalidate the whole procedure.
Quick reference:
- E6013: All-position, easy to run, works on AC or DC. A good general-purpose choice for lighter fabrication.
- E6011: Deep penetration, AC current, forgiving on dirty or rusty metal. Common for field repairs.
- E7018: Low-hydrogen, higher strength, used on structural and critical applications where crack resistance matters.
Substituting one classification for another changes deposited-metal chemistry and mechanical behavior enough to void the qualified procedure.
Why Working With a Qualified Fabricator Matters
Missing or incomplete WPS documentation isn't just a paperwork issue. It leads to failed inspections, expensive rework, and blown timelines. That is exactly what happened with the piping rebuild mentioned earlier: an entire system had to be redone because nobody could prove the original welds were qualified.
Alloy Metalworks develops, qualifies, and documents WPS for standard metals and exotic alloys (Inconel, titanium, Hastelloy) under ISO 9001-controlled processes. On projects that span materials or industries, a multi-code shop keeps one team accountable from design through inspection-ready delivery:
- Structural, aerospace, and sanitary code coverage in one place
- Qualified procedures with traceable, audit-ready documentation
- No handoffs that scatter WPS records across multiple vendors
Frequently Asked Questions
What is a Welding Procedure Specification (WPS)?
A WPS is a documented, tested set of welding parameters (process, materials, and technique) that ensures a weld meets code-compliant mechanical and quality standards.
How is a WPS qualified?
A preliminary WPS is used to weld a test coupon, which undergoes destructive and non-destructive testing. Results are recorded in a PQR, which validates the final WPS's parameter ranges.
What is the difference between WPS, PQR, and WPQ?
The WPS is the written procedure, the PQR is the test evidence proving it works, and the WPQ certifies that an individual welder can perform it correctly.
What are the WPS requirements for pipe welding?
Pipe WPS documents cover wall thickness ranges, diameter groups, welding position (including 6G), P-number material groupings, and backing or purge gas requirements.
What welding standards are commonly used for welding procedure specifications?
Common codes include ASME Section IX for pressure systems, AWS D1.1/D1.2/D1.6 for structural work, AWS D17.1 for aerospace, and AWS D18.1 for sanitary systems.
What is the meaning of E6013, E6011, and E7018?
E6013 is an easy-to-use, all-position electrode for AC/DC; E6011 offers deep penetration on AC, good for dirty metal; E7018 is a low-hydrogen electrode for high-strength structural work.
