The stakes go beyond weld appearance. Your process choice affects heat-affected zone size, cycle time, distortion risk, and whether your parts pass ASME Section IX or AWS D17.1 code review. A wrong call means rework, or worse, rejected hardware.
This guide compares laser and TIG welding directly so engineers and procurement teams can match the process to the application, not the other way around.
TL;DR
- Laser welding: faster, lower heat input, ideal for thin materials and high-volume runs
- TIG welding: unmatched control, better for thick sections, complex joints, and exotic alloys
- Neither replaces the other — most certified fabricators use both, depending on the job
- Choice depends on thickness, joint complexity, volume, and required certifications like ASME Section IX or AWS D17.1

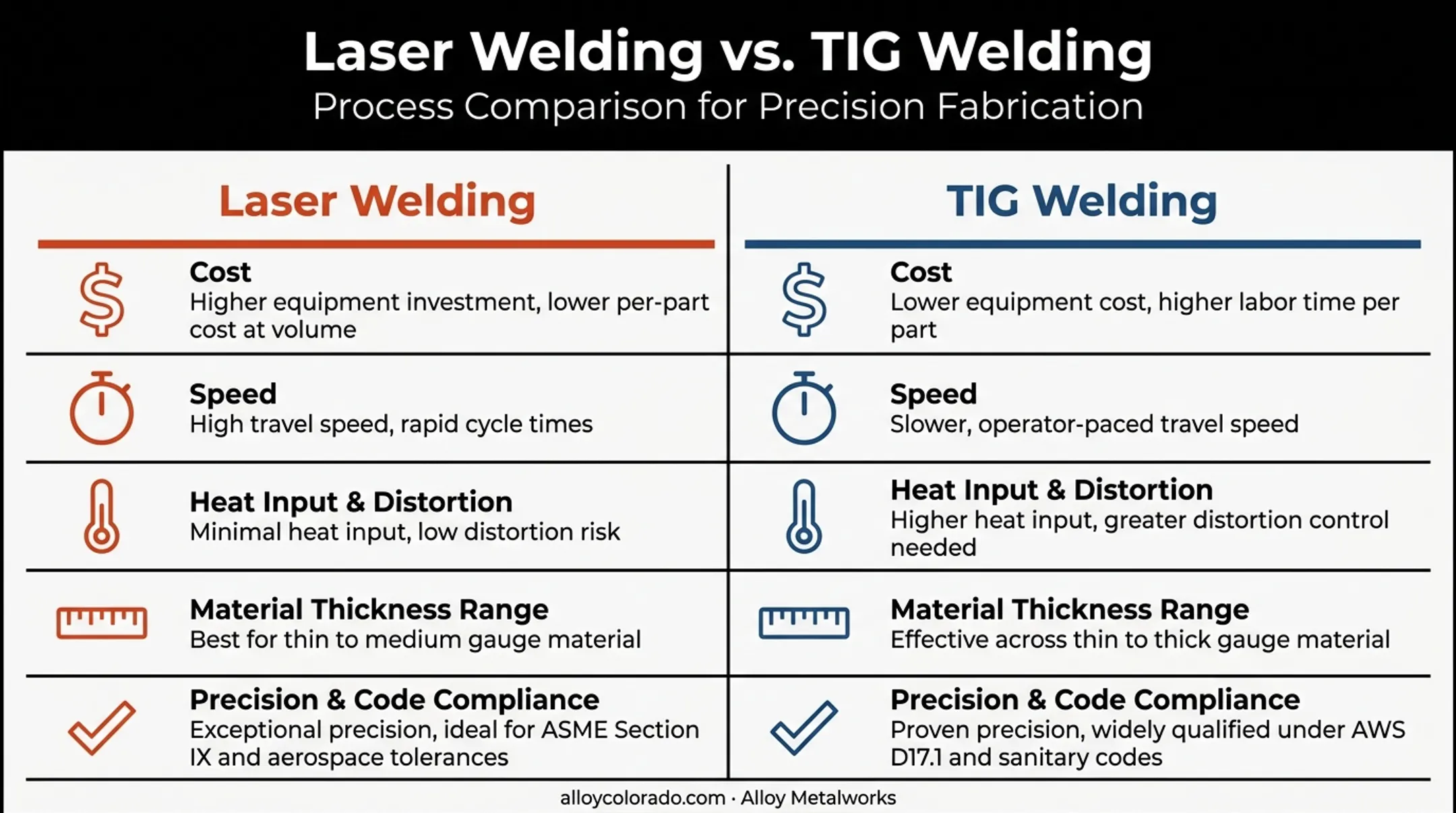

Laser Welding vs TIG Welding: Quick Comparison
Cost
- Laser: High upfront investment, with lower long-term labor cost per part
- TIG: Much lower equipment cost, but higher labor time per weld—especially on complex geometries
Speed
- Laser: Far higher raw throughput in automated cells
- TIG: Slower by design, with real-time puddle control when fit-up isn't perfect
TRUMPF's comparison of a manual TIG cell against an automated laser welding cell found roughly 45 minutes per part for manual TIG versus about 2 minutes per part with automated laser. That figure is vendor-specific, not a universal multiplier, but it shows the gap clearly.
Heat Input & Distortion
- Laser: Minimal heat-affected zone and less warping; shrinkage and residual stress still matter
- TIG: Higher heat input and more warp risk on thin-gauge material
Material Thickness Range
- Laser: Strong on thin-to-medium gauge; handheld systems commonly top out around 0.156–0.313 inches on steel, depending on the model
- TIG: Better suited for thicker sections and heavy structural welds
Precision & Code Compliance
- Laser: Highly repeatable but unforgiving; minor fit-up, travel-speed, or alignment deviations show up immediately
- TIG: More forgiving fit-up tolerance; remains the standard for flight-critical and pressure-vessel-grade code welds
What is Laser Welding?
Laser welding is a fusion process that uses a concentrated laser beam to melt and join metals with minimal heat input. For aerospace and energy fabrication, where tight tolerances and low distortion aren't optional, that precision advantage is critical.
Core benefits:
- High travel speed compared to arc processes
- Small heat-affected zone
- Works well on thin or lightweight components
- Easier to automate for repeatable, high-volume runs

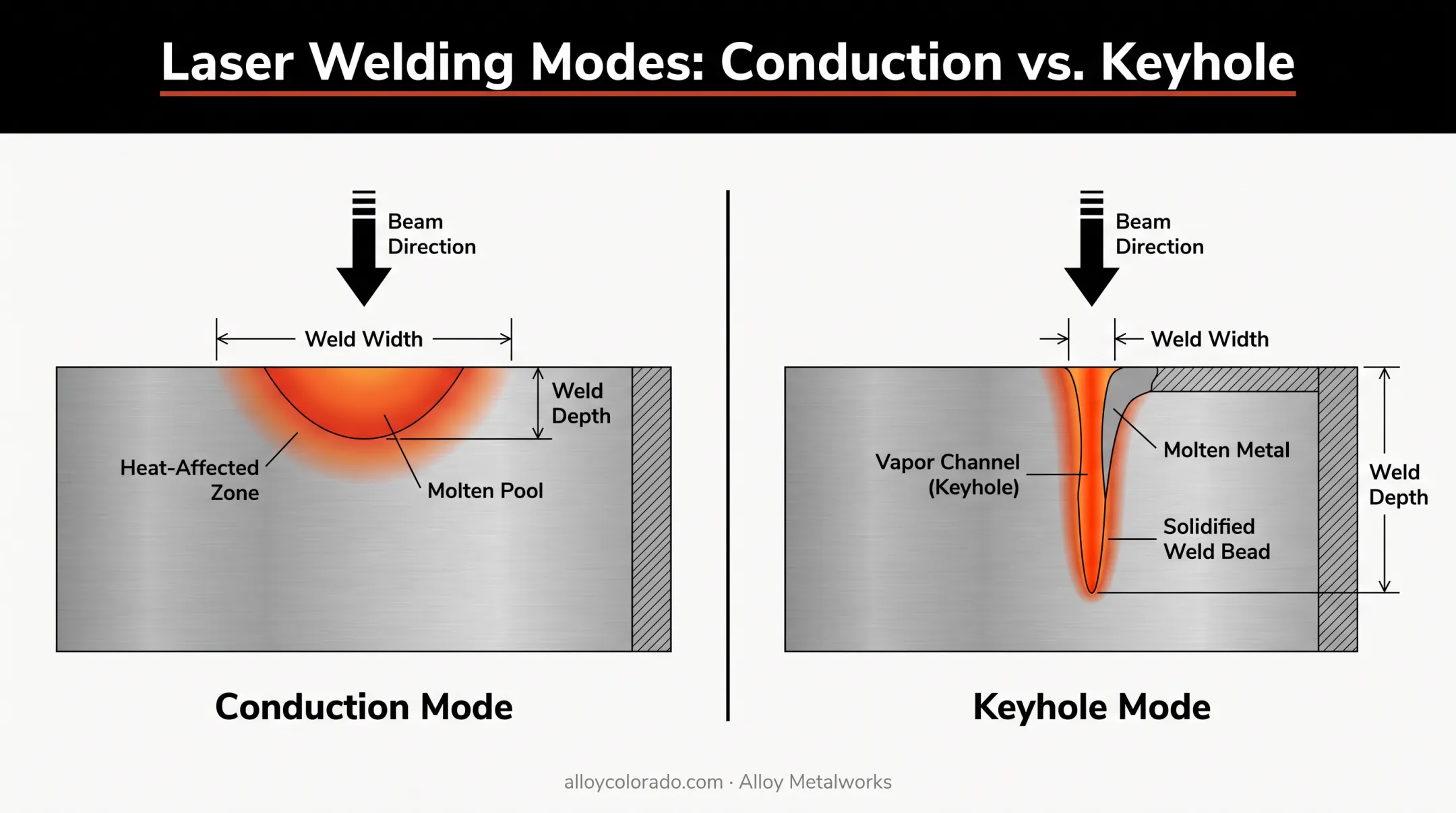

Conduction vs. Keyhole Welding
There are two main modes:
- Conduction mode: the beam melts the surface, and heat conducts downward. The resulting weld is typically wider than it is deep.
- Keyhole mode: power density is high enough to vaporize metal, forming a narrow vapor channel. As the beam travels, the keyhole moves and molten metal solidifies behind it, producing deep, narrow welds.
Use Cases of Laser Welding
Laser welding fits best in:
- High-volume production runs where automation pays off
- Thin-gauge sheet metal assemblies
- EV battery and electronics manufacturing
- Aerospace ground support equipment
A 2024 review of modern laser beam welding processes found melt-in laser welding already used industrially as a more efficient TIG substitute in relevant applications, though results still vary by alloy and joint design.
Those same conditions drive laser work at Alloy Metalworks on high-throughput contract manufacturing programs under ISO 9001. Automation keeps cycle times down without sacrificing traceability.

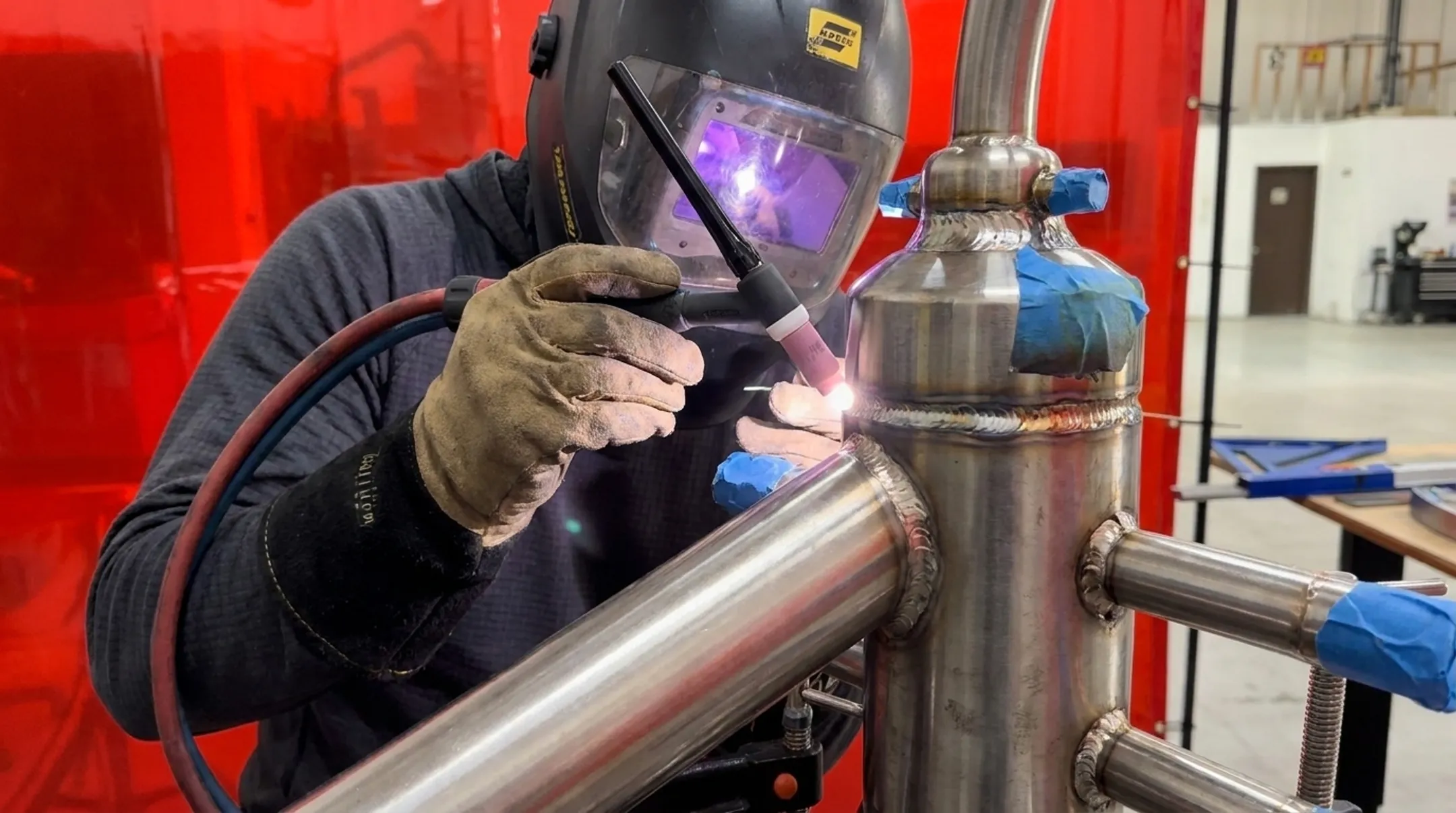

What is TIG Welding?
TIG (Gas Tungsten Arc Welding, or GTAW) uses a tungsten electrode and shielding gas to produce highly controlled arc welds. For code-compliant fabrication of exotic alloys, it remains the workhorse when puddle control and weld quality matter most.
Core benefits:
- Superior puddle control for precise, clean beads
- Handles thick sections with multipass capability
- Welds dissimilar metals and exotic alloys, including titanium, Inconel, and Hastelloy
- More forgiving fit-up tolerance than laser
Process variations:
- Pulsed TIG for controlled heat input on thin or heat-sensitive alloys
- Orbital TIG for consistent tube and pipe welds in sanitary and aerospace runs
Use Cases of TIG Welding
TIG dominates where documentation and material integrity can't be compromised:
- Flight-critical aerospace hardware
- Sanitary stainless steel systems in food, beverage, and pharma processing
- Pressure vessels and structural assemblies requiring code certification
- Research equipment and experimental energy systems
Alloy Metalworks performs ASME Section IX, AWS D17.1 Class A, and AWS D18.1 certified TIG welding for flight-critical and sanitary applications, producing inspection-ready, code-compliant results.
The shop's material list includes Inconel 600, 601, 617, 625, and 718, Hastelloy, Incoloy 800HT, and titanium grades 2 and 7 — alloys that show up constantly in aerospace and hydrogen energy work.
For heat-sensitive nickel alloys like Inconel 617, ultra-high-frequency pulsed TIG settings (using equipment like a Fronius power source) provide stable puddle control and reduced thermal input. That keeps bead consistency tight without overheating the base metal.

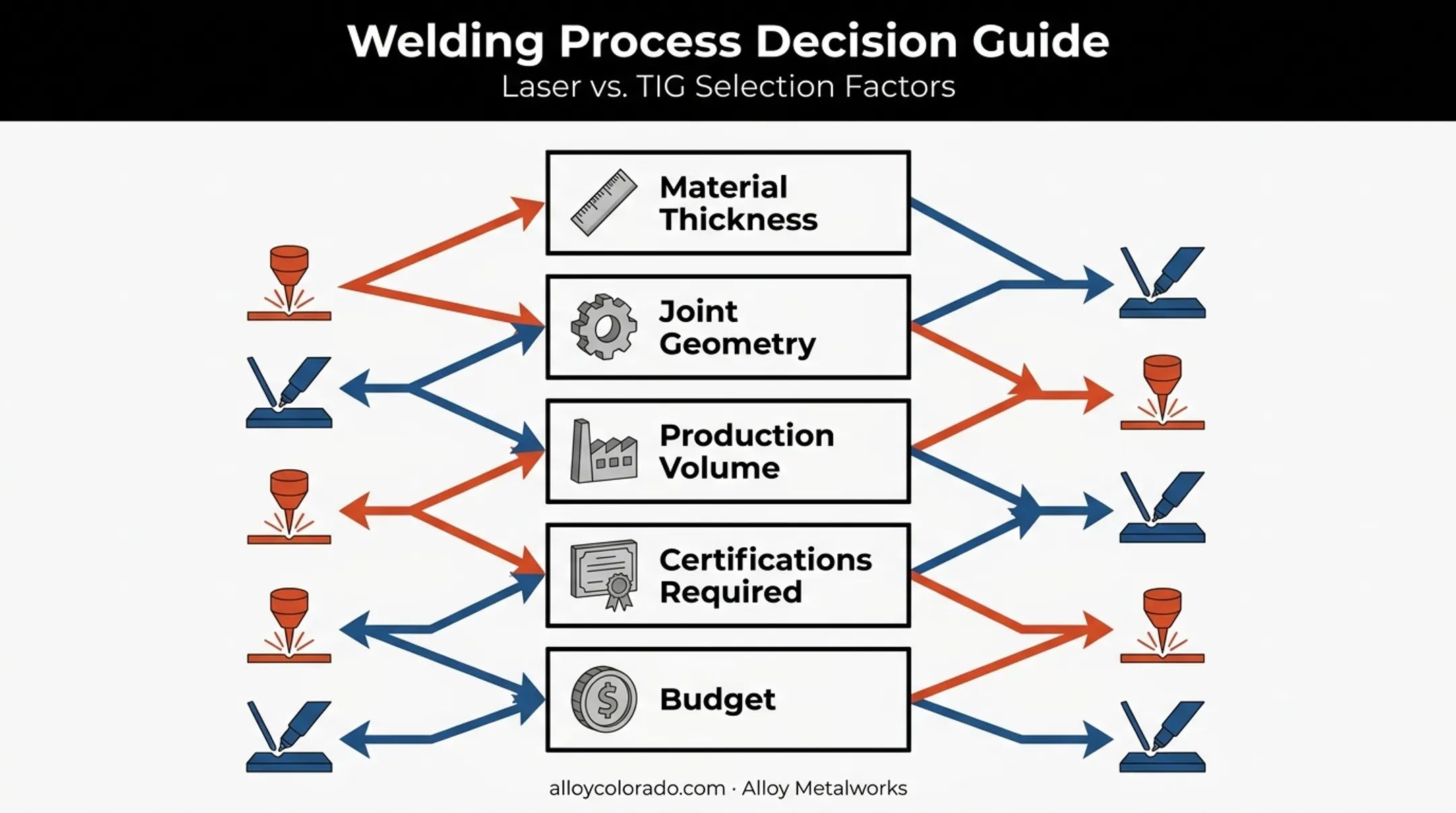

Laser Welding vs TIG Welding: Which is Better?
Neither wins outright. The right call depends on:
- Material thickness — thin favors laser, thick favors TIG
- Joint geometry — complex or variable fit-up favors TIG
- Production volume — high-volume automatable work favors laser
- Certifications required — ASME Section IX or AWS D17.1 flight-critical work still leans TIG
- Budget — TIG has a lower equipment barrier to entry
For regulated industries like aerospace and energy, TIG remains the standard where full traceability and certified weld procedures are non-negotiable. Laser earns its place in high-throughput, thin-material production where speed and repeatability matter more than fit-up flexibility.
Real-World Example: Choosing the Right Process
A fabricator testing handheld laser welding against TIG for the first time, after years of TIG and stick-welding experience, found a familiar industry pattern. Laser cuts heat input and boosts travel speed dramatically, but it punishes sloppy fit-up.
The challenge: thin-gauge sheet metal work with TIG was producing oil-canning distortion, a common headache when heat input outpaces the material's ability to dissipate it.
The trigger: rising cycle times and warped panels pushed the team to test laser welding as an alternative on the same material.
The result: lower heat input reduced distortion risk, and travel speeds increased substantially. The improvement was tied to that specific setup, not a universal fix.
The takeaway: the right process depends on part geometry and fit-up quality, not just theoretical processing speed. A laser system won't fix a bad fixture, and TIG won't out-produce automation at scale.
If your project needs certified, code-compliant welding for aerospace, energy, or sanitary systems, Alloy Metalworks offers engineering-aware process guidance. Upload an RFQ package or request a technical review to start the conversation.
Conclusion
Laser and TIG welding work as complementary processes on the same shop floor. Each fits different material thicknesses, production volumes, and compliance needs. The right choice shows up in less rework, faster turnaround, and welds that pass ASME and AWS inspection the first time.
Frequently Asked Questions
Is laser welding as good as TIG welding?
Laser welding can match or exceed TIG in speed and precision for thin materials. TIG remains preferred for thick sections, exotic alloys, and code-certified structural welds where fit-up isn't perfect.
How thick of steel can a laser welder weld?
Most handheld industrial laser welders effectively handle steel up to roughly 0.3 inches, depending on the model and settings. Beyond that, TIG or MIG typically takes over.
Can laser welding replace TIG welding for aerospace parts?
TIG remains the standard for flight-critical, code-certified aerospace hardware. Laser welding is used for specific high-volume or thin-gauge applications within that same industry.
Which process is more cost-effective for small-batch fabrication?
TIG generally has lower equipment costs and more flexibility for small-batch or prototype work, since it doesn't require the automation investment laser systems typically need.
Does laser welding require shielding gas like TIG?
Yes. Laser welding often uses nitrogen or argon depending on the material, protecting the weld pool from atmospheric contamination much like TIG's argon shielding.
What certifications should a welding shop have for aerospace or energy work?
Look for ASME Section IX, AWS D17.1, and ISO 9001. These establish qualified weld procedures, personnel qualification, and traceable documentation for regulated industries.
