Here's the catch: welding quality swings hard based on carbon content. Low carbon steel forgives mistakes. High carbon steel doesn't. Skip a preheat step or rush your cooling, and you risk cracking, brittleness, or a weld that fails under load.
This guide covers when carbon steel welding is genuinely simple, what you need before you strike an arc, the exact steps to follow, the variables that make or break your results, and the mistakes that trip up even experienced welders.
TL;DR
- Low carbon (mild) steel welds easily with no preheat or post-heat treatment needed
- Medium and high carbon steel demand preheating, controlled heat input, and often post-weld heat treatment
- MIG, TIG, and Stick all work well: the right choice depends on thickness, joint type, and environment
- Clean joints, correct filler metal, and managed cooling rates drive weld quality

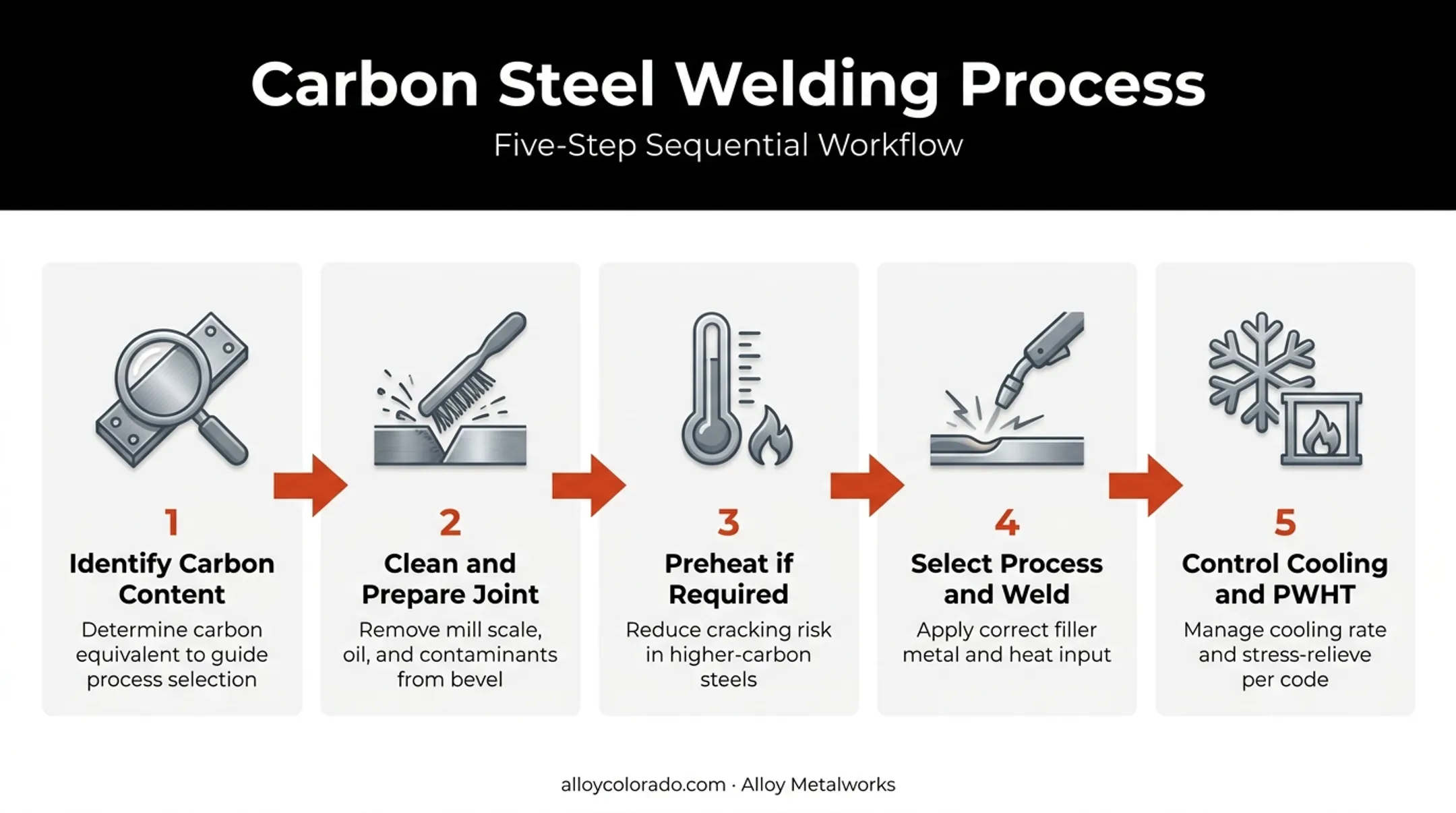

How to Weld Carbon Steel
Step 1: Identify the Carbon Content and Grade
Before you touch a welder, find out what you're working with. Pull the mill cert or spec sheet: carbon content dictates everything downstream, from preheat requirements to filler metal choice.

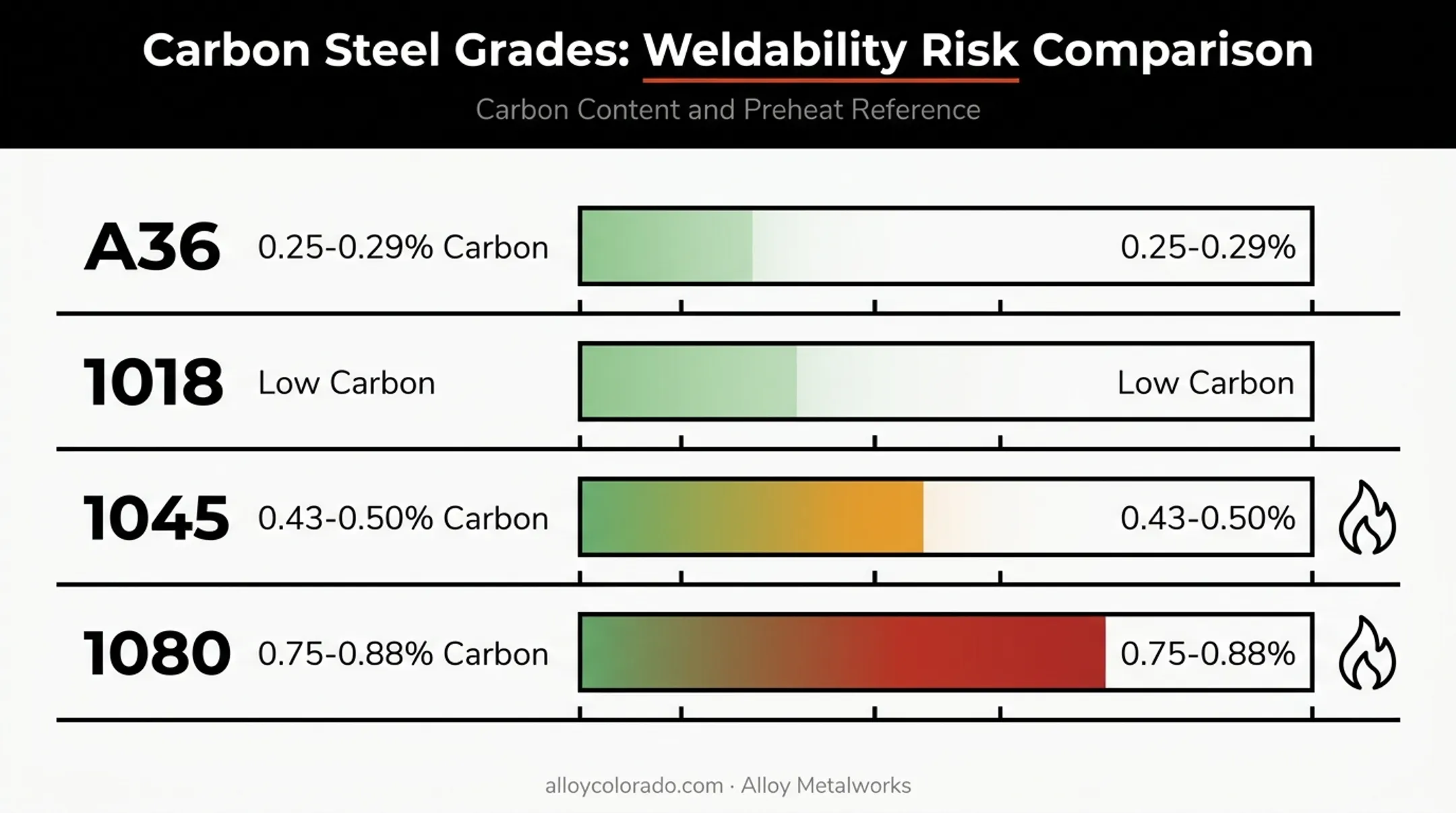

Common grades and their approximate carbon ranges:
- A36: roughly 0.25-0.29% carbon depending on product form and thickness (per ASTM A36)
- 1018: low carbon, generally easy to weld
- 1045: 0.43-0.50% carbon, medium carbon, needs care
- 1080: 0.75-0.88% carbon, high carbon, prone to cracking
Watch out for leaded or high-sulfur grades like 12L14. These free-machining steels contain sulfur and sometimes lead, which create low-melting constituents that cause cracking regardless of technique. No amount of skill fixes bad base metal chemistry.
Step 2: Clean and Prepare the Joint
Dirty steel makes bad welds. Rust, mill scale, and paint introduce hydrogen and cause porosity. Clean metal is non-negotiable.
- Grind the joint down to bare metal, then wipe with acetone to strip oils and residue
- Check fit-up and alignment; gaps concentrate stress and invite cracking
- Place small, evenly spaced tack welds to hold alignment and limit distortion before the full pass
Step 3: Preheat (If Required by Carbon Content)
Low carbon steel under about 1 inch thick typically skips preheat entirely. Medium and high carbon steel is a different story.
Preheat requirements vary by grade, thickness, and restraint. There's no single universal chart.
As a reference point, a historical AWS D1.1 example for a thick A572/A36 jumbo connection called for a minimum of 225°F, with 350°F advisable for butt splices in heavier sections. Pull your actual numbers from the governing code or an approved welding procedure specification (WPS), not a generic rule of thumb.
Practical application:
- Heat evenly across a band at least 3 inches wide from the weld zone, per AWS D1.1 measurement guidance
- Use a temperature gauge or crayon, not guesswork
- Never skip this step on higher-carbon grades; skipping preheat is a leading cause of cold cracking
Step 4: Select Process and Filler Metal, Then Weld
Match the process to the job:
- MIG — fast, efficient, great for production runs
- Stick — handles rusty or dirty outdoor repair work well
- TIG — best for precision work and thin sections
For filler metal, ER70S-6 covers most MIG and TIG work on mild steel. It handles multi-pass work well, including surfaces that aren't perfectly clean.
For medium and high carbon steel, switch to low-hydrogen electrodes like 7018, ideally with an H4 or H8 designator (4 or 8 mL of diffusible hydrogen per 100g of weld metal). That difference matters on crack-sensitive material.
Control your heat input:
- Keep arc length short and consistent
- Use moderate amperage; don't overcompensate for thick sections
- Maintain steady travel speed to avoid an oversized heat-affected zone (HAZ)
Step 5: Control Cooling and Apply Post-Weld Heat Treatment if Needed
Let the weld air cool. Never quench carbon steel in water. Rapid cooling promotes brittle martensite, which is exactly what you're trying to avoid on higher-carbon grades.
For medium and high carbon steel, post-weld heat treatment (PWHT) reduces residual stress and trapped hydrogen. Historical AWS D1.1 stress-relief guidance capped furnace temperatures around 1100-1200°F for most steels, with hold times scaling by thickness (roughly 1 hour per inch for material over 1/4 inch thick).
Always follow the specific code or WPS governing your project rather than a generic number.
Finish with a visual inspection. For anything critical, bring in non-destructive testing (NDT) to catch cracks or porosity you can't see.
When Should You Weld Carbon Steel Yourself vs. Bring in a Specialist?
DIY or in-house welding works fine for low carbon steel repairs, general fabrication, and non-critical structural work. Most hobbyists and shop welders handle this without issue.
Bring in a specialist when:
- The project involves high carbon steel, thick sections, or dissimilar metal joints
- Code-compliant, inspection-ready welds are required
- Failure carries real safety or financial consequences
For aerospace, energy, pressure vessel, or other regulated applications, certified welding under codes like ASME Section IX or AWS D1.1 isn't optional. You need a fabricator with certified procedures and documented traceability.
Alloy Metalworks is certified to ASME Section IX and AWS D1.1, D1.2, and D1.6. The team supports weld procedure development, distortion control, and contamination-risk mitigation for inspection-ready results, including dissimilar metal joints beyond standard carbon steel work.
What You Need Before Welding Carbon Steel
Preparation and equipment choice drive weld quality and defect rates more than raw skill.
Equipment Requirements
- MIG, TIG, or Stick welder rated for your material thickness
- Argon/CO2 blend for MIG; pure argon for TIG
- Low-hydrogen electrodes for Stick welding on medium- and high-carbon grades
Materials and Conditions
- Filler metal matched (or slightly undermatched) to base metal strength
- Clean base metal, free of rust, scale, and oils
- Dry, controlled ambient conditions; excess moisture or cold increases hydrogen pickup
Skill and Safety Readiness
- Working knowledge of how the heat-affected zone responds at different carbon levels
- Proper PPE: welding helmet, gloves, and flame-resistant (FR) clothing
- Adequate ventilation for fumes, especially with resulfurized or leaded steels

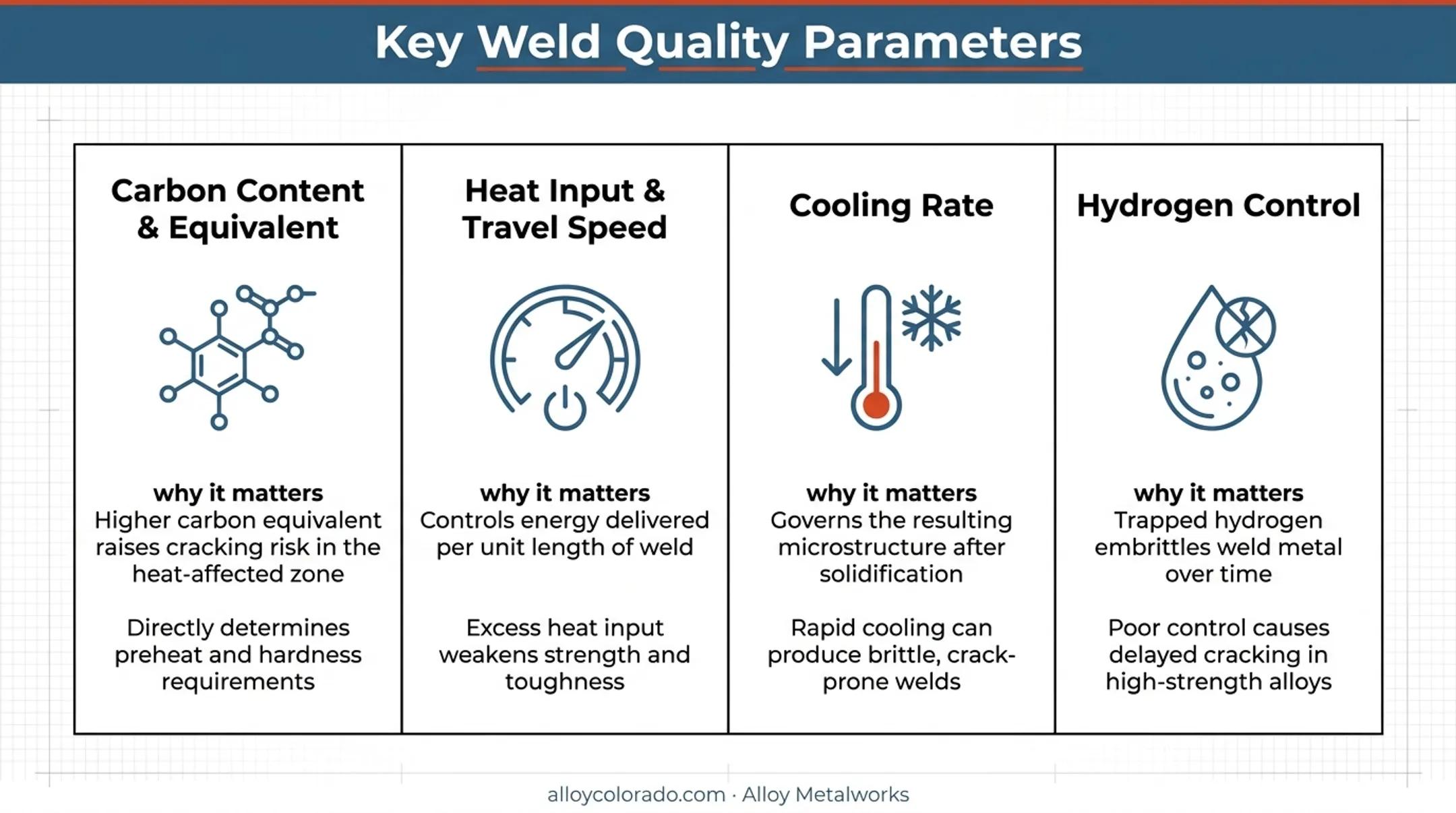

Key Parameters That Affect Carbon Steel Weld Quality
Four controllable parameters drive carbon steel weld quality on every job.
| Parameter | Why It Matters | Impact on Quality |
|---|---|---|
| Carbon content & equivalent (CE) | Higher carbon plus Mn/Cr raises hardenability and cracking risk | Determines whether preheat/PWHT is mandatory |
| Heat input & travel speed | Excess heat enlarges the HAZ and coarsens grain structure | Too much heat causes brittleness; too little causes poor fusion |
| Cooling rate | Rapid cooling promotes brittle martensite formation | Slower, controlled cooling improves ductility and crack resistance |
| Hydrogen control | Diffusible hydrogen from moisture or contaminants causes delayed cracking | Low-hydrogen electrodes and dry storage cut failure risk |
Common Mistakes When Welding Carbon Steel
Most carbon steel weld failures trace back to a handful of avoidable process errors. Watch for these:
- Skipping surface cleaning — leftover rust, mill scale, or oil causes porosity and hot cracking
- Ignoring preheat — skipping preheat on medium- and high-carbon steel is a top cause of cold cracking
- Excessive heat input — high amperage or wide weaving enlarges the heat-affected zone (HAZ) more than needed
- Water quenching — cooling in water instead of still air creates brittle microstructures
Troubleshooting Common Carbon Steel Welding Issues
Most carbon steel weld defects trace back to heat control, cleanliness, or shielding. Use the checks below to isolate the cause quickly.
Weld Cracking (Hot or Cold)
Likely causes: High carbon or sulfur content, insufficient preheat, or hydrogen contamination.
What to check:
- Verify preheat temperature against the material requirement
- Switch to a low-hydrogen filler
- Confirm base metal cleanliness before welding
Porosity
Likely causes: Contaminated base metal or weak shielding gas coverage. Lincoln Electric flags disturbed shielding gas from wind, excessive flow, or damaged hoses as a common porosity driver, with typical flow rates around 30–40 cubic feet per hour (cfh).
What to check:
- Clean the joint thoroughly
- Verify gas flow rate
- Inspect the nozzle, hoses, and coverage path
Warping or Distortion
Likely causes: Uneven heat input or improper fit-up.
What to check:
- Lock alignment with tack welds
- Use a backstepping technique
- Balance weld sequence so heat spreads evenly
Frequently Asked Questions
Can carbon steel be welded?
Yes, carbon steel is highly weldable. Low carbon steel is the easiest to work with, while high carbon steel requires preheat and post-weld heat treatment to avoid cracking.
Is carbon steel the easiest to weld?
Low carbon (mild) steel is among the easiest metals to weld. Medium and high carbon grades need more careful technique and heat control.
Can I weld carbon steel with MIG?
Yes. MIG is one of the most common, beginner-friendly methods, especially with ER70S-6 wire, and works well on both thin and thick sections.
Can I weld carbon steel to mild steel?
Yes, this is straightforward since both are compatible carbon steel types. Clean the joint, match filler metal, and control heat input for a strong bond.
What preheat temperature is needed for high carbon steel?
Generally in the 500-800°F range depending on thickness, though the exact number depends on grade, section thickness, and the governing code or WPS.
Do I need post-weld heat treatment for carbon steel?
Low carbon steel usually doesn't need it. Medium and high carbon grades benefit from stress-relief annealing to reduce residual stress and cracking risk.
