Inconel isn't forgiving. The alloy's sluggish weld pool, sensitivity to contamination, and hot-cracking tendencies mean small process mistakes compound fast. Get the technique wrong on 718 in particular, and you may not see the failure until a dye penetrant test lights up a crack you thought you'd avoided.
This guide covers the practical tips that separate a clean, code-compliant Inconel weld from a rework ticket.
TL;DR
- TIG welding is the go-to process for Inconel because of its precision heat control
- Match filler chemistry: ERNiCrMo-3 (Inconel 625) is the standard for most 625 and dissimilar joints
- Surface cleanliness is non-negotiable: carbon-steel abrasives can cross-contaminate and ruin a sound weld
- Heat input control decides fusion versus distortion, especially on precipitation-hardenable grades like 718
- Inspection isn't optional for flight-critical or ASME Section IX-regulated hardware
Understanding Inconel and Why It's Difficult to Weld
Inconel is a family of nickel-chromium superalloys prized for retaining strength and corrosion resistance at extreme temperatures. That's why it shows up in jet engines, gas turbines, and chemical reactors. But "Inconel" isn't a single material. It's a product line with grades that behave very differently under a torch.
The two you'll encounter most often:
- Inconel 625: solid-solution strengthened by molybdenum and niobium, no precipitation hardening required
- Inconel 718: precipitation-hardenable, strengthened through aging with niobium, titanium, and aluminum
Because nickel-based alloys have less fluid weld pools than steel, penetration is reduced and puddle control gets tricky fast. Add niobium segregation in 718, and you get a real risk of HAZ liquation cracking and centerline solidification cracking.
Difficulty depends on the grade, its condition, and joint restraint, not a blanket rule that "Inconel is hard to weld." Treat each job on its own metallurgical merits.

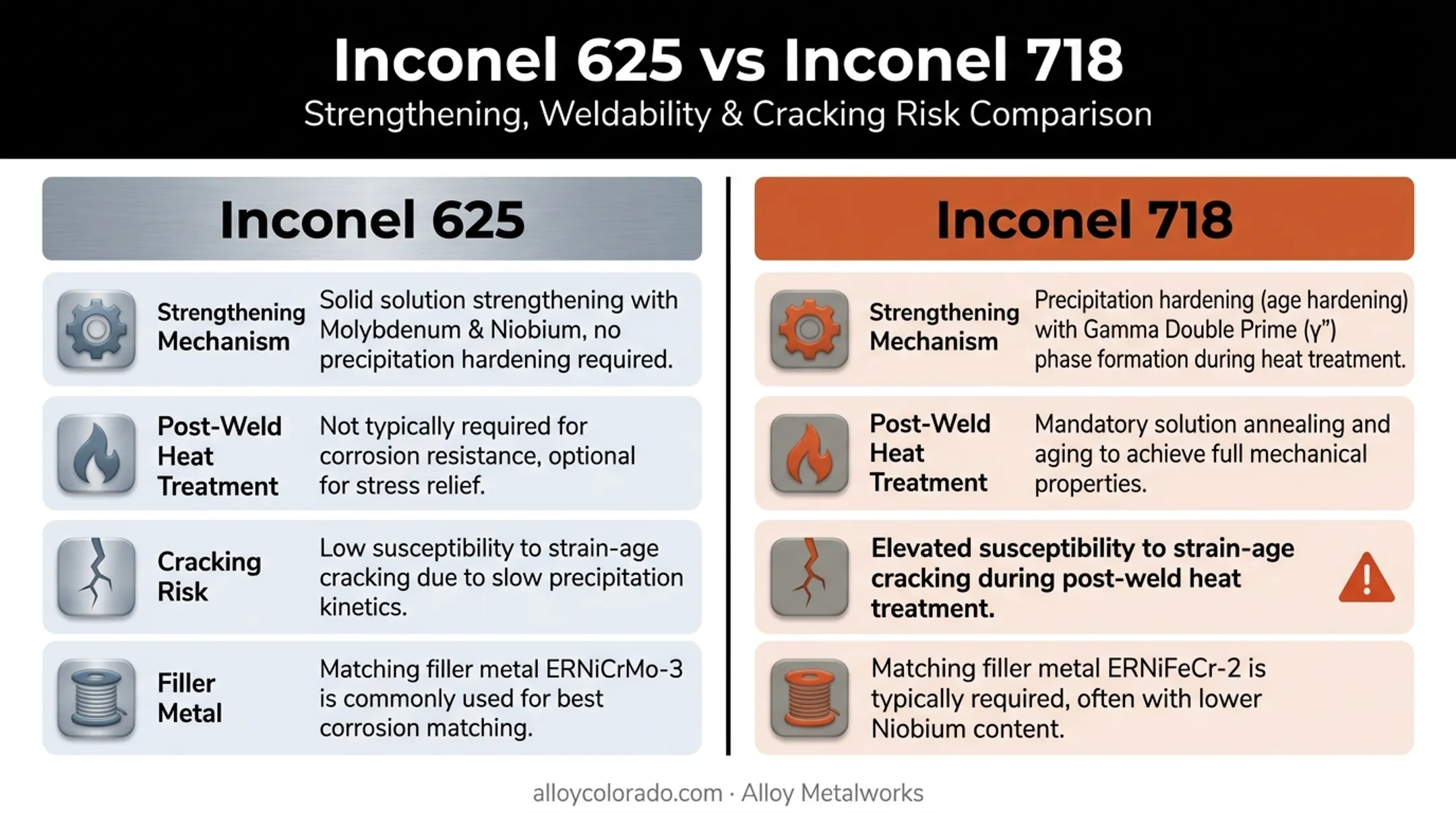

Inconel 625 vs. 718: Key Welding Differences
| Factor | Inconel 625 | Inconel 718 |
|---|---|---|
| Strengthening | Solid-solution (Mo, Nb) | Precipitation hardening (gamma-prime/double-prime) |
| Post-weld heat treatment | Not required to maintain strength or ductility | Solution anneal plus aging typically required |
| Cracking risk | Lower, more forgiving weld pool | Higher: HAZ liquation and solidification cracking, even with good general weldability |
| Filler metal | ERNiCrMo-3 (AWS A5.14) | Often matched or close-chemistry filler depending on service |
Special Metals' own technical bulletin confirms 625 weld products require no post-weld heat treatment to maintain high strength and ductility. That's not permission to skip your governing WPS. It just means 625 doesn't demand the aging sequence 718 does.

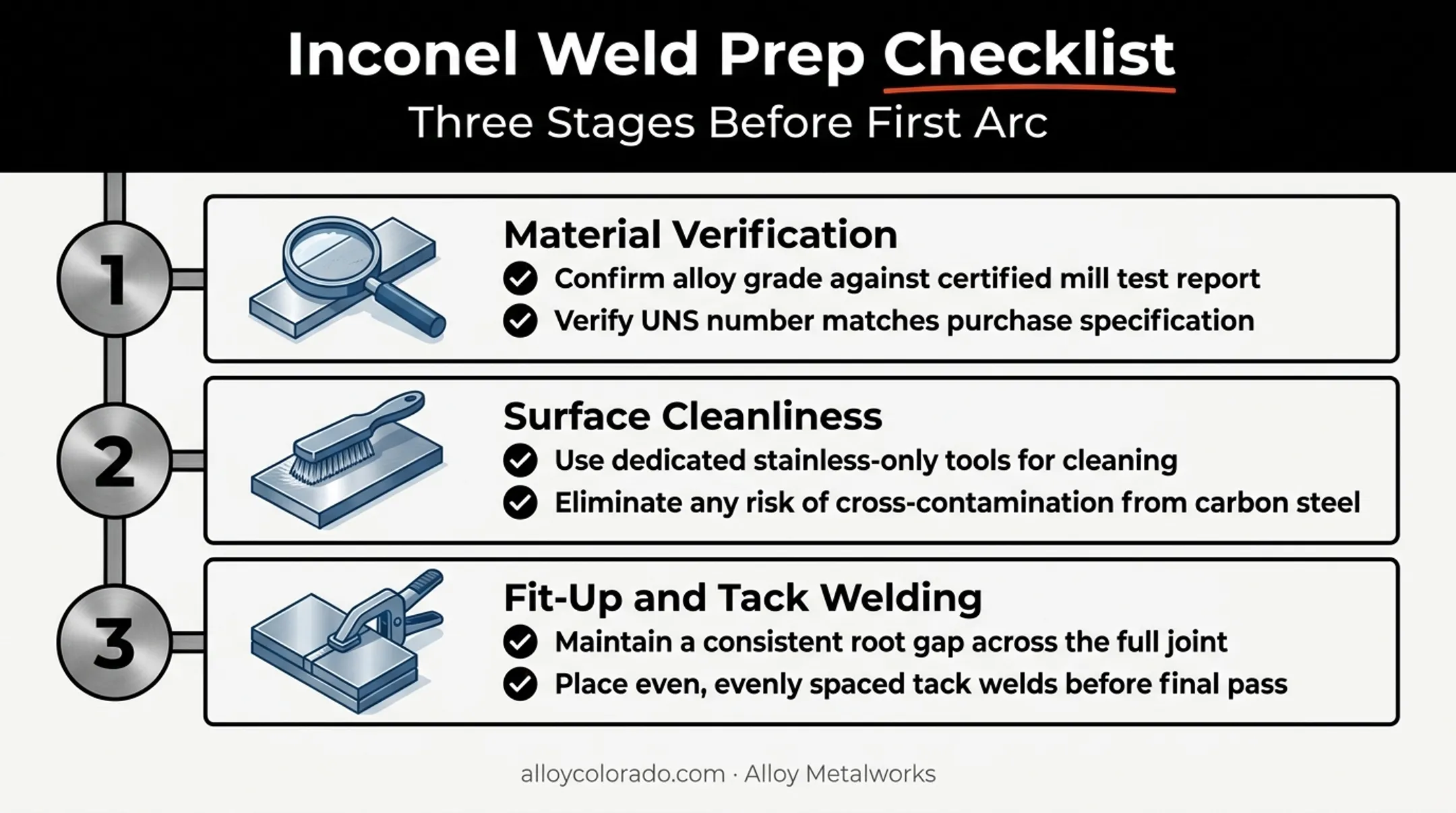

Essential Preparation Tips Before Welding Inconel
Good welds start before the arc ever strikes. Skipping prep steps is one of the fastest ways to end up with porosity or cracking you can't explain later.
Verify before you weld:
- Confirm the exact alloy grade and UNS number — don't assume based on appearance or mill paperwork alone
- Check the heat-treatment condition, especially for 718 (solution-annealed vs. aged changes how it responds to heat)
- Review the part's manufacturing history, including any prior weld repairs or pressure test results
Surface Cleanliness Matters More Than You Think
Cross-contamination is a quiet killer. Grinding discs, Scotch-Brite pads, or files previously used on carbon steel or aluminum can transfer embedded particles onto an Inconel surface. Those particles introduce contamination that shows up later as porosity or reduced corrosion resistance.
- Dedicate stainless-steel-compatible tools for nickel-alloy work
- Remove oil, grease, and shop soil completely before welding or heat treating
- Keep filler metal under shielding gas and avoid touching the tungsten to contaminated surfaces
Fit-Up and Tack Welding
Restraint drives cracking. Poor fit-up forces the weld to fight misalignment and concentrates stress right where the joint is weakest.
- Hold a consistent root gap so the first pass can penetrate evenly
- Use small, evenly spaced tacks instead of heavy tacks that lock the joint rigid
- Tack in a sequence that lets the joint move slightly as it cools, rather than trapping stress from the first pass
Get verification, cleanliness, and fit-up right up front, and you cut the odds of porosity and cracking before the root pass ever starts.

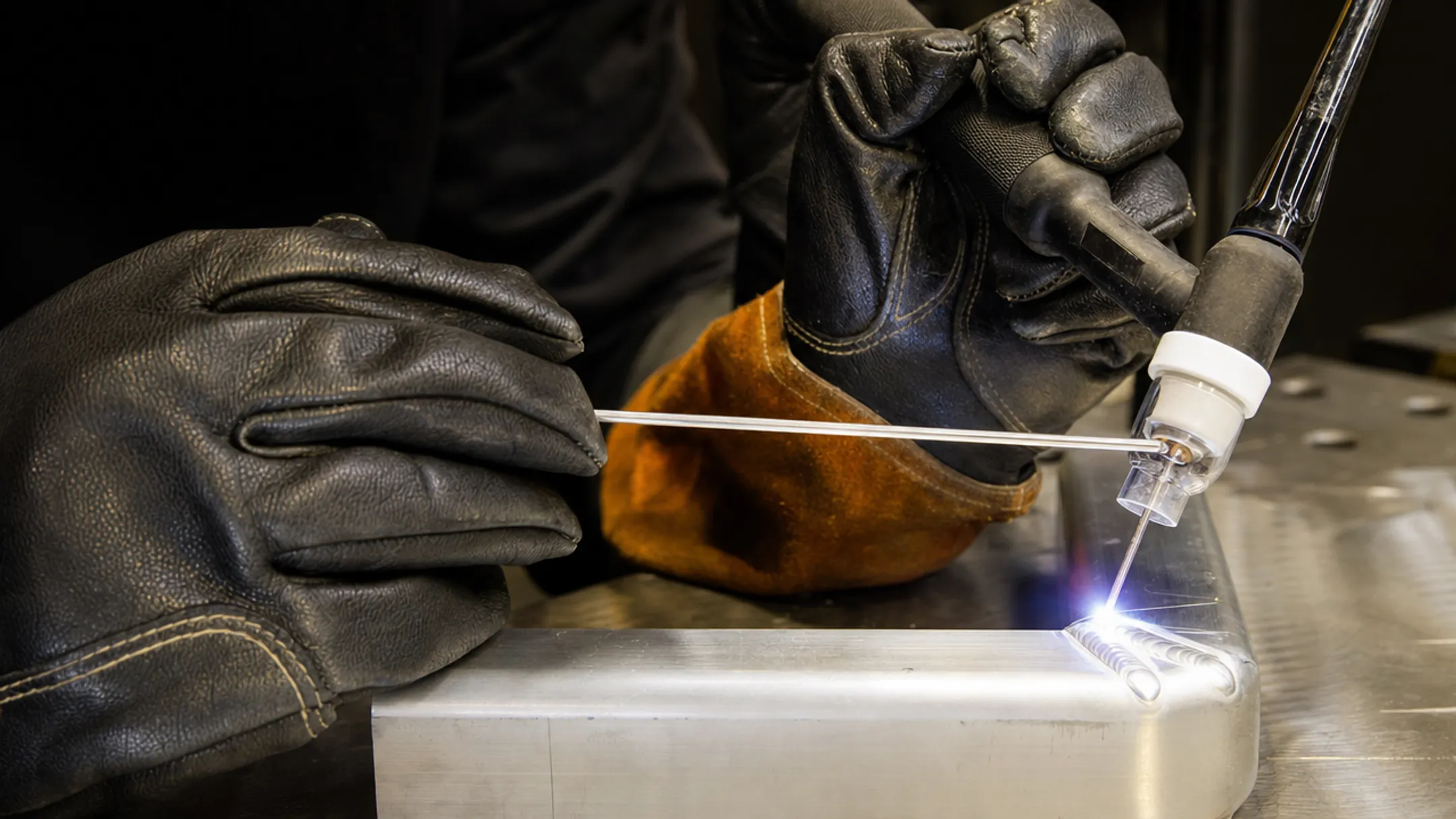

Core Welding Technique Tips for Inconel
TIG (GTAW) is the preferred process for Inconel, and for good reason. It gives you the heat control that MIG and stick simply can't match on a metal this sensitive to thermal input. When you're managing a sluggish weld pool and trying to avoid liquation cracking, precise arc control is the job.
Filler Metal Selection
For most Inconel 625 applications, ERNiCrMo-3 filler (UNS N06625) is the standard. Special Metals' filler metal data sheet lists it at 20.0–23.0% chromium, 8.0–10.0% molybdenum, and 3.15–4.15% niobium, and it's also used for select dissimilar joints. Matching chemistry avoids the bimetallic corrosion issues you'll get from mismatched filler.
Machine Setup
- Polarity: DCEN (straight polarity)
- Tungsten: 2% thoriated (EWTh-2) or ceriated (EWCe-2), ground to a 30–60 degree included angle with a small flat at the tip
- Shielding gas: high-purity argon for most work; argon-helium blends can help with travel speed or penetration on thicker sections
- Gas flow: moderate flow avoids turbulence — too much flow can actually draw in air and cause porosity
Technique That Prevents Cracking
- Keep a short arc length and avoid prolonged puddling
- Use pulsed current to control heat input without sacrificing fusion
- Add filler at the leading edge of the puddle, not the trailing edge
- Travel slowly and consistently — erratic speed changes create the uneven cooling that leads to cracking
On Inconel 617, for example, too much heat risks distortion and metallurgical compromise; too little sacrifices fusion. The window is narrow. Some shops use ultra-high-frequency pulse settings to hold a stiff, focused arc at lower overall heat input, which improves puddle control and bead consistency without giving up penetration.

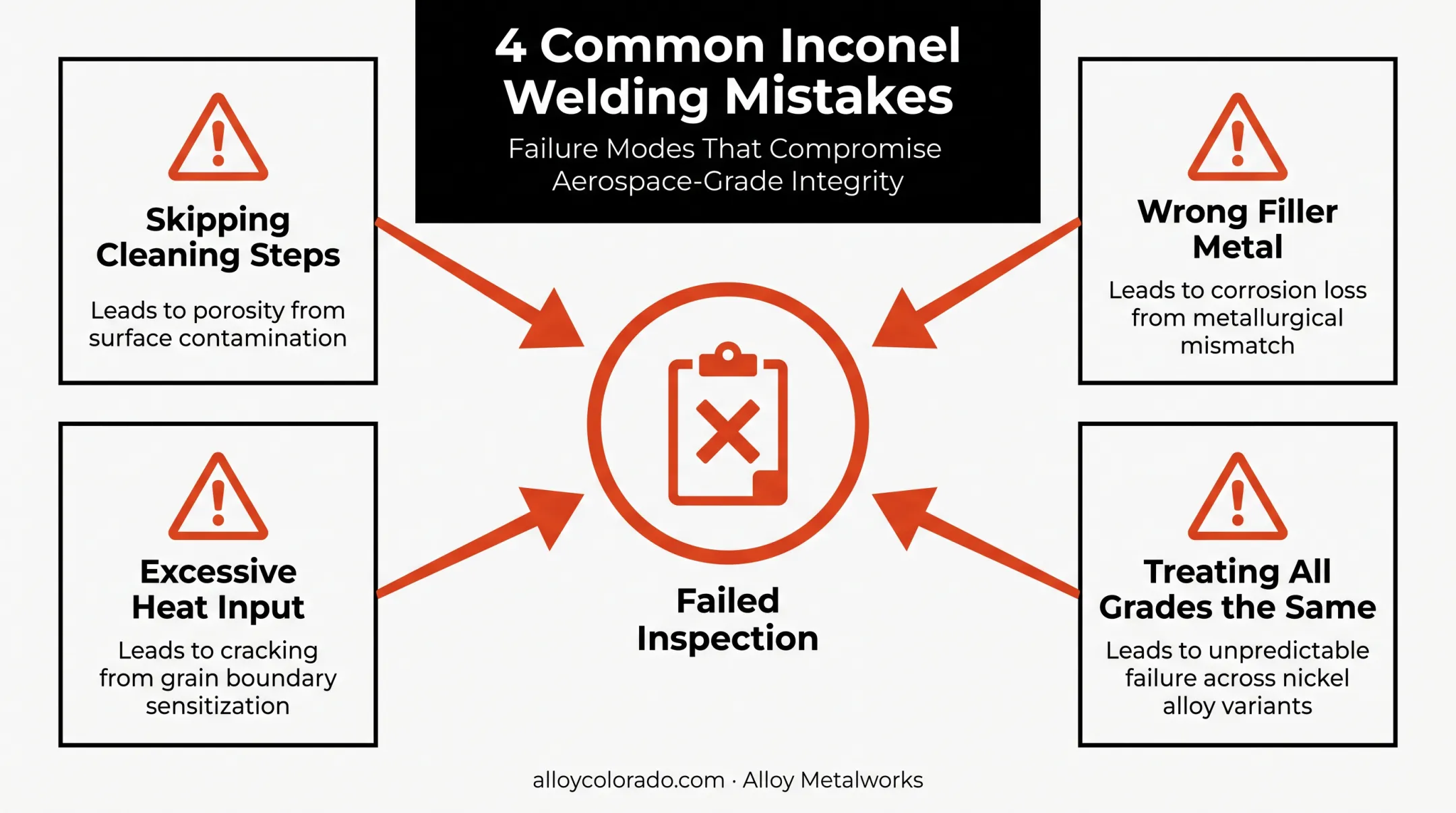

Avoiding Common Inconel Welding Mistakes
Most Inconel weld failures trace back to a handful of repeatable mistakes:
- Skipping cleaning steps: even light oxide or shop soil left on the surface increases porosity risk
- Using the wrong filler metal: mismatched chemistry weakens corrosion resistance and can trigger galvanic issues in service
- Excessive heat input: damages the passive oxide layer through depletion and oxidation, cutting the corrosion resistance Inconel is chosen for
- Treating all Inconel grades the same: a technique that works fine on 625 can produce HAZ liquation cracks on 718 because of its precipitation-hardening chemistry
Each mistake leads to the same outcome: cracking, porosity, or a weld that fails inspection and must be cut out and redone. These are process discipline failures, not exotic metallurgy problems.
Inspection, Finishing, and When to Bring in Experts
Post-weld inspection isn't a formality on Inconel components headed into aerospace or energy service. Depending on criticality, that can include:
- Visual inspection
- Dye penetrant testing
- Radiographic examination
- Ultrasonic testing
For flight-critical hardware, welding under AWS D17.1 and ASME Section IX defines the qualified procedures, personnel certification, and documentation trail inspectors expect to see.
Finishing after welding usually means controlled cleaning, oxide removal, and surface prep so residual contamination does not undercut corrosion resistance or NDT results.
First-pass inspection results come from a controlled process—from material verification through final NDT—not from last-minute fixes.
Bring in a specialty shop when the work needs qualified procedures, full traceability, or nickel alloys outside your team's regular scope. At Alloy Metalworks, our ASME Section IX and AWS D17.1 Class A-certified team welds Inconel, Incoloy, Hastelloy, and other exotic alloys for aerospace, energy, and research clients who need inspection-ready results.
Utility Global's Madison Kelley noted that our turnaround on Inconel welding work "saved us before." That kind of outcome only happens when process control and documentation are built in from the start, not added after the fact.
Frequently Asked Questions
What is Inconel welding?
Inconel welding is the process of joining nickel-chromium superalloy components, most commonly using TIG (GTAW), for applications requiring extreme heat and corrosion resistance. It demands tighter heat control than welding standard steel.
Why is Inconel difficult to weld?
Inconel's weld pool is less fluid than steel's, reducing penetration and increasing the risk of hot cracking. Difficulty also varies by grade: precipitation-hardenable alloys like 718 are more crack-sensitive than solid-solution grades like 625.
What rod do you weld Inconel with?
Most Inconel 625 welding uses ERNiCrMo-3 filler metal, which matches the base alloy's chemistry. Matching filler prevents bimetallic corrosion and preserves the joint's mechanical properties.
Can I weld Inconel to stainless steel?
Yes, with proper filler selection, typically a nickel-based filler designed for dissimilar joints. This controls dilution and prevents the bimetallic issues that occur when incompatible chemistries mix in the weld pool.
Can Inconel 625 be welded?
Yes. Inconel 625 is readily weldable using conventional qualified TIG processes and doesn't require post-weld heat treatment to maintain its strength and ductility.
What's the hardest metal to weld?
There's no single universal answer. Precipitation-hardenable superalloys like Inconel 718 rank among the most challenging due to HAZ liquation and solidification cracking, even when other weldability factors look solid.
