AC TIG gets called "the standard" for aluminum constantly, but few people outside the welding booth understand why AC works the way it does, or what actually happens when settings go wrong. This article breaks down the AC cycle mechanics, the variables that affect weld quality, where the process fits into real production environments, and when it's not the right tool.
TL;DR
- AC TIG alternates between electrode positive (oxide cleaning) and electrode negative (penetration) in a single weld cycle
- Aluminum requires AC because its oxide melts at nearly 3x the temperature of the base metal
- Weld quality hinges on AC balance, frequency, amperage, tungsten selection, filler alloy, and shielding gas
- Cleanliness and equipment setup matter more than operator skill
- Aerospace and energy work requires qualified procedures under codes like AWS D17.1 and D1.2
What Is AC TIG Welding Aluminum?
AC TIG welding aluminum is gas tungsten arc welding (GTAW) performed with alternating current, specifically to join aluminum and its alloys. The goal is a fully fused weld free of oxide inclusions, porosity, and cracking.
It differs from other common processes in clear ways:
- DC TIG: used for steel and stainless steel, where no oxide layer competes with fusion
- MIG welding aluminum: offers higher deposition rates but less precision and control than AC TIG
AC TIG is the only common process that cleans and fuses aluminum in the same operation.
Why AC Is Used for Welding Aluminum
Aluminum forms an oxide layer almost instantly on exposure to air. That oxide melts around 3,600°F to 3,700°F, while the aluminum underneath melts around 1,200°F, according to Miller Electric's AC balance guidance. That's nearly a 3x gap between the two melting points.
This creates a real problem: the base metal can be fully molten while a solid oxide skin still sits on top, blocking fusion.
Straight DC doesn't solve it either way:
- DCEN (electrode negative) drives heat into the base metal but leaves the oxide layer untouched
- DCEP (electrode positive) strips oxide effectively but overheats the tungsten and struggles to penetrate
AC solves this by alternating: each cycle gets a cleaning phase and a penetration phase. For aerospace and energy applications, that dual action matters because the end product needs consistent penetration, defect-free welds, and a traceable procedure, not just a good-looking bead.
AC TIG is built into qualified welding procedures under standards like ASME Section IX and AWS D1.2 for the same reason.
At Alloy Metalworks, aluminum work certified under AWS D17.1 aerospace and AWS D1.2 structural aluminum follows that principle. Those codes assume the fabricator understands why AC behaves the way it does, not just which knob to turn.
How the AC TIG Process Works

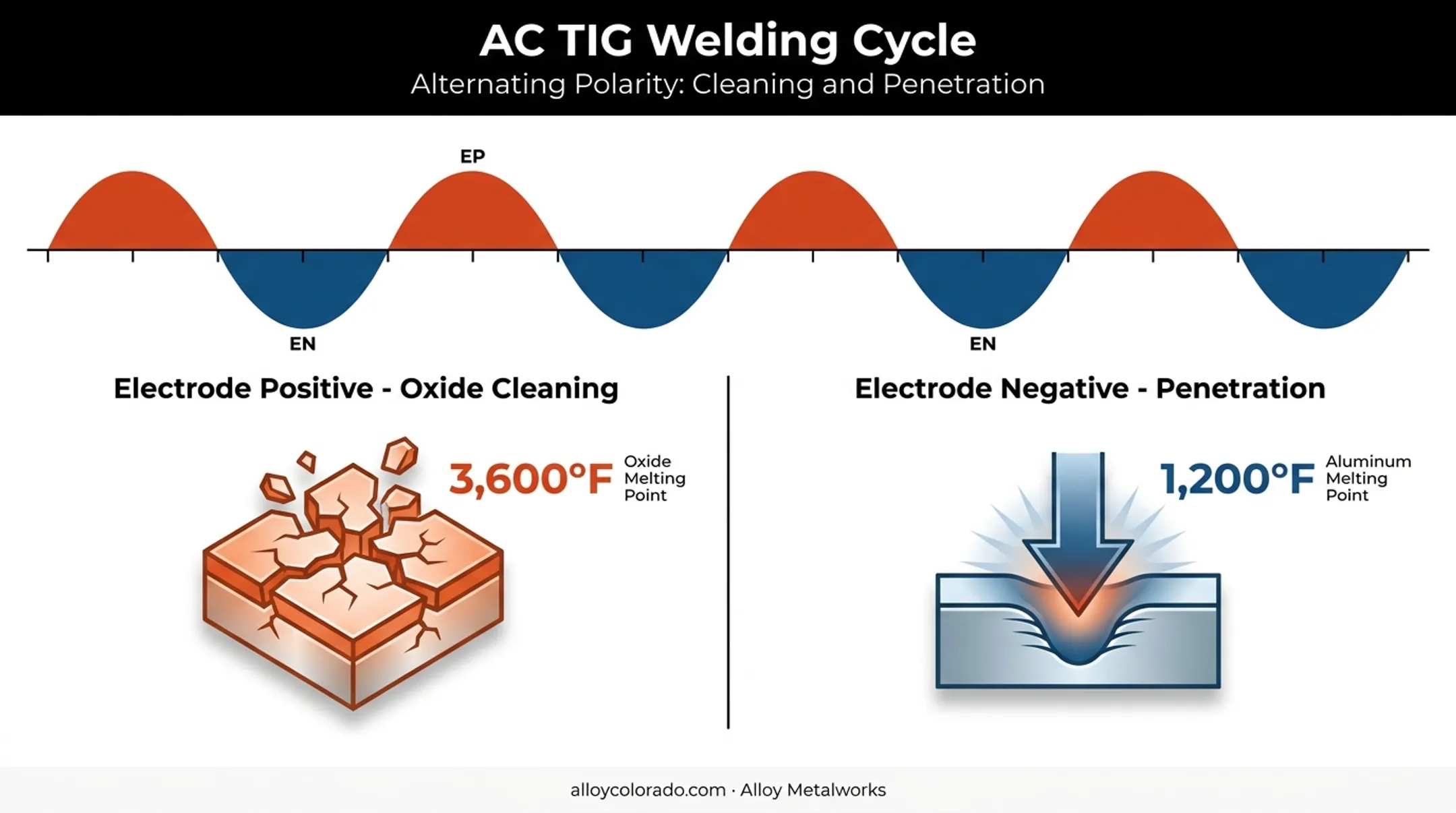

The core idea: AC current rapidly alternates polarity, and each half-cycle does a different job.
- Electrode positive (EP) strips oxide off the aluminum surface
- Electrode negative (EN) drives heat into the base metal for fusion
- Balance and frequency settings control the ratio between the two
Miller recommends starting around 75% EN as a baseline, dropping to roughly 65% EN for dirtier or older aluminum, and pushing toward 80% EN on very clean parts (Miller Electric on AC balance control).
Frequency is a separate lever entirely. It mainly shapes arc width and focus rather than the cleaning-to-penetration ratio.

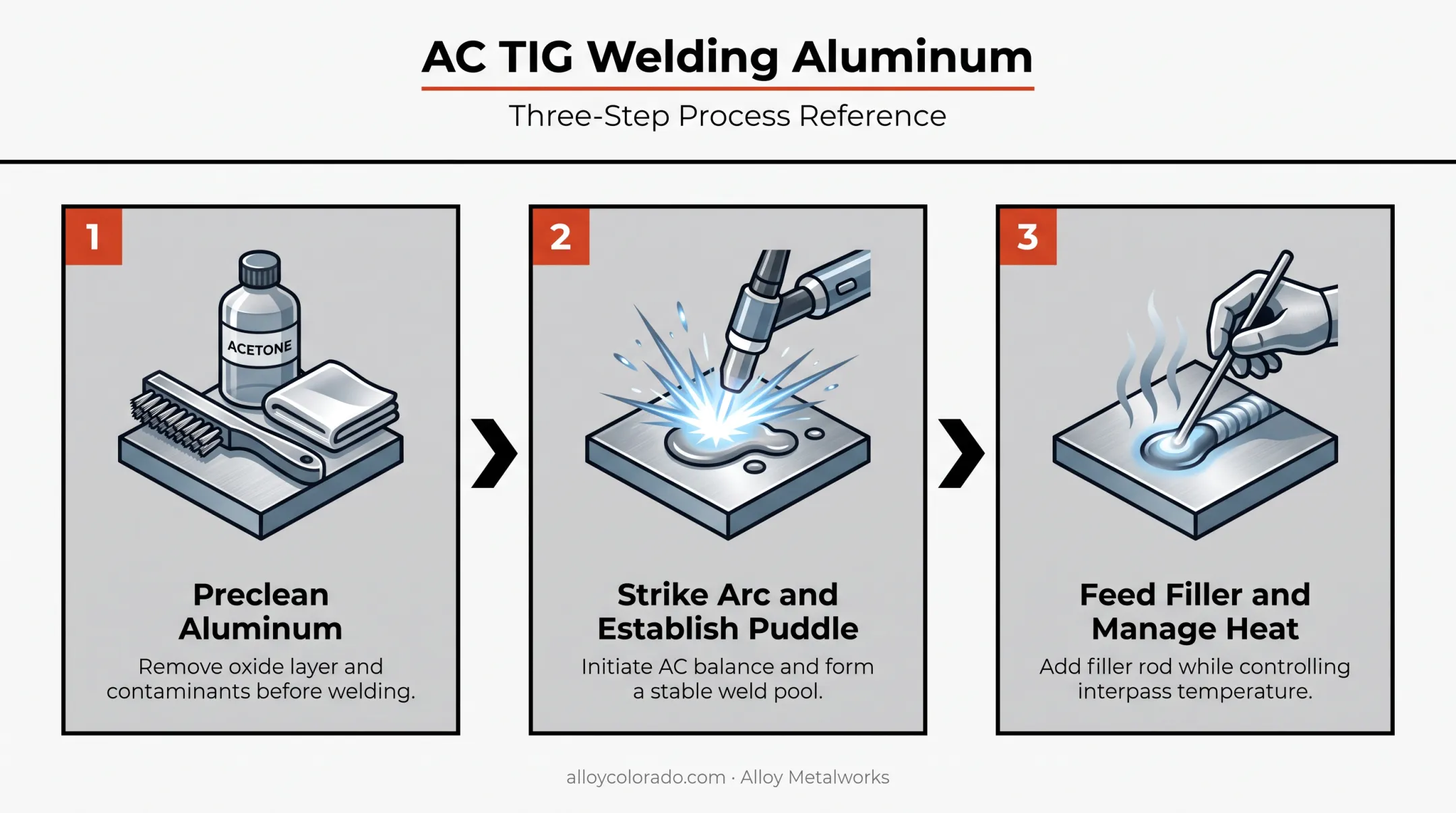

Step 1: Preclean the Aluminum
Wipe the joint with acetone and brush it with a dedicated stainless brush reserved only for aluminum. This removes oils, moisture, and surface oxide before the arc ever strikes. Skipping this step is one of the most common causes of porosity.
Step 2: Strike the Arc and Establish the Puddle
High-frequency arc starts are standard for AC TIG. The EP portion of the cycle strips any remaining oxide as the puddle forms.
Step 3: Feed Filler and Manage Heat
Add filler wire to the leading edge of the puddle while EN drives penetration. Use amperage or foot pedal control to manage heat buildup as the weld progresses. Aluminum's high thermal conductivity means heat accumulates fast on thin sections.
Where AC TIG Welding Aluminum Is Applied
AC TIG applies across several project lifecycle stages:
- New-build fabrication: aerospace ground support structures, energy system components, and precision research equipment
- Prototype development: small-batch and experimental assemblies where fit and finish matter
- Repair and rework: restoring flight-critical or process-critical hardware to spec
- Production welding under quality systems: recurring, specification-driven work rather than a single job
Typical triggers include thin-gauge aluminum assemblies, flight-critical hardware, or components requiring inspection-ready traceability. Codes such as AWS D17.1 and D1.2 often govern that work rather than operator judgment alone.
Fortius Metals worked with Alloy Metalworks to beta-test aluminum welding wire and TIG rod compositions. The resulting welds were clean, produced efficiently, and passed radiographic testing and macroscopic evaluation. That standard of verification is what regulated aluminum work requires, beyond a visual check alone.
Key Factors That Affect AC TIG Welding Aluminum
Weld quality comes down to a handful of controllable variables:
- Base metal cleanliness and alloy chemistry: directly affects porosity and hot-cracking risk
- AC balance and frequency settings: control the ratio of cleaning action to penetration
- Tungsten type and shielding gas flow: affect arc stability and coverage
- Material thickness and joint design: determine amperage and travel speed requirements
- Regulatory and quality constraints: aerospace and energy work often requires documented welding procedure specifications

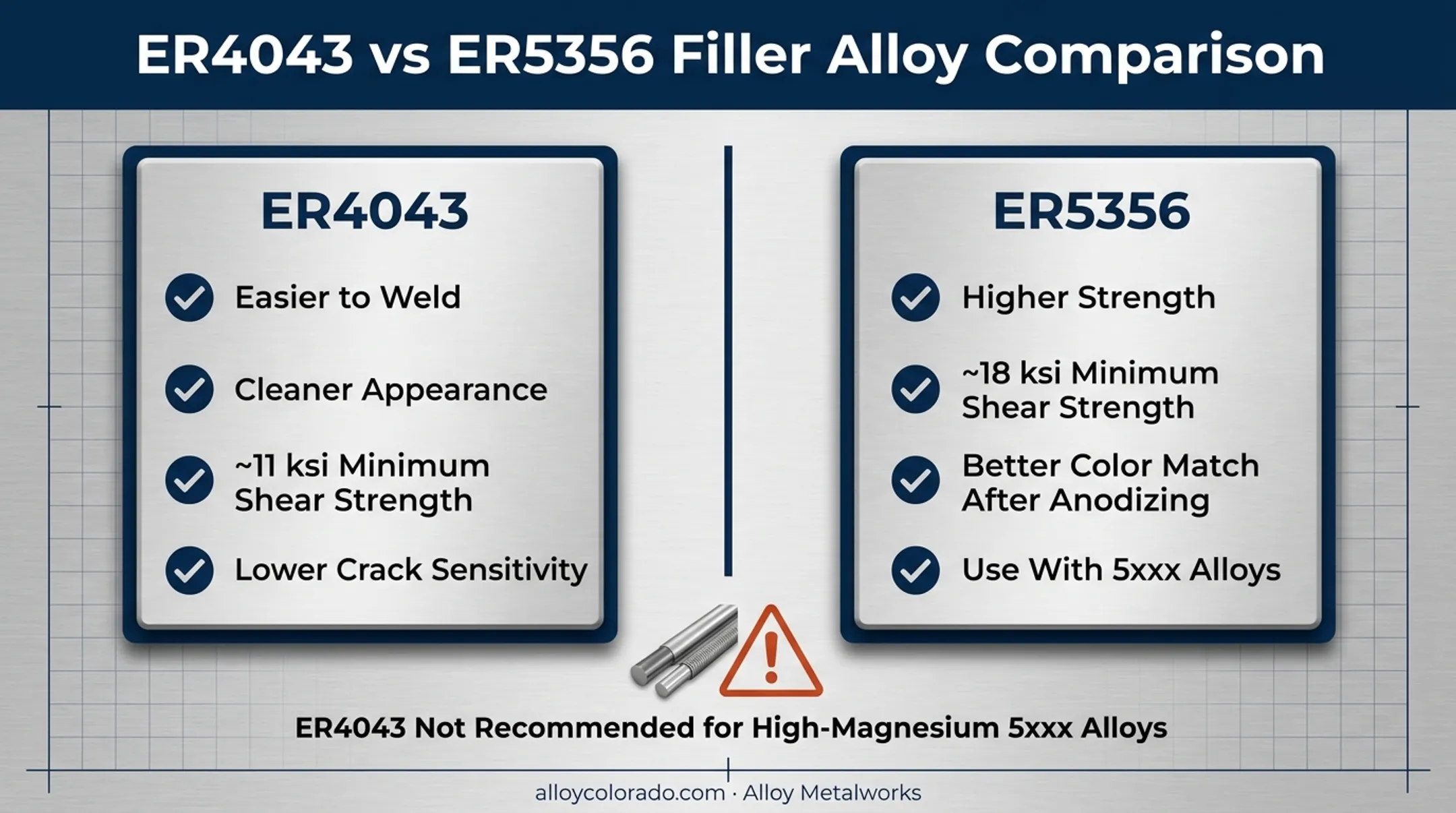

ER4043 is easier to weld and gives a cleaner appearance, while ER5356 offers higher strength. The Fabricator's comparison lists minimum shear strengths around 11 ksi for 4043 versus 18 ksi for 5356.
Never pair 4043 with high-magnesium 5xxx alloys like 5083 or 5456: the resulting Mg2Si compound can make the weld brittle.
Common Issues and Misconceptions
"AC alone guarantees a clean weld." It doesn't. Surface prep and technique still determine whether the weld is sound. AC gives you the mechanism for cleaning; it doesn't replace the discipline of precleaning with acetone and a dedicated brush.
Oversimplifying balance without frequency. Teams often dial in a balance percentage and stop there, ignoring that frequency independently shapes arc width and bead control. Both settings need attention.
Mistaking visible cleaning for weld quality. The bright, etched zone around a weld is a byproduct of the EP cycle, not proof of internal soundness.
A shiny puddle tells you the surface is clean. It says nothing about porosity or cracking beneath the surface.
Regulated aluminum work under AWS D17.1 therefore pairs visual inspection with radiographic or other NDT methods. Surface appearance alone never clears a weld.
When AC TIG May Not Be the Right Choice
AC TIG isn't always the answer. Consider alternatives when:
- Sections are very thick. MIG or friction stir welding offer higher deposition rates and better economics on thick aluminum where TIG's control advantage matters less.
- Production volume is high. Manual AC TIG is operator-dependent and slow. High-volume runs often bottleneck without automation or a different process entirely.
- The alloy isn't actually aluminum. Some exotic alloys get welded with AC out of habit when DCEN or a specialized process would serve them better.
- The joint geometry favors mechanization. Long, repetitive seams or hard-to-access joints often suit robotic or orbital welding better than manual torch control.
This last point is where engineering-aware collaboration earns its keep. Alloy Metalworks works through process selection with clients before fabrication starts, using weld-joint design review and process validation to catch mismatches early — rather than discovering them mid-run.
Conclusion
AC TIG welding aluminum works because it alternates polarity, combining oxide removal with base metal fusion in a single cycle. Understanding the mechanics behind that alternation, not just memorizing a balance percentage, is what separates a repeatable, compliant process from guesswork.
For aerospace and energy applications, that distinction has consequences: inspection failures, rework, and schedule slips. Correct application, backed by qualified procedures and experienced fabricators, produces inspection-ready results the first time.
Chris Gavitt and the team at Alloy Metalworks apply this approach on aluminum work certified to AWS D17.1 and D1.2, treating AC TIG as a controlled process rather than a default setting.
Frequently Asked Questions
Can you weld aluminum with an AC TIG welder?
Yes. AC TIG is the standard method for welding aluminum because it alternates between oxide cleaning and heat penetration, producing sound, clean welds.
Is AC or DC better for TIG welding aluminum?
AC is preferred because it combines cleaning and penetration in one cycle. DC alone either penetrates without cleaning oxide or cleans without adequate fusion.
Do you need AC to weld aluminum?
Yes, for most conventional aluminum TIG work. AC is the current type that removes the oxide layer while still fusing the base metal.
What tungsten electrode works best for AC TIG welding aluminum?
Pure, zirconiated, or lanthanated tungsten electrodes are the standard choices. They hold a stable arc on AC without excessive balling.
What filler wire is used for AC TIG welding aluminum?
ER4043 and ER5356 are the most common choices, selected based on strength requirements, crack sensitivity, and finishing needs like anodizing.
Why does my aluminum TIG weld look dirty or porous?
This typically results from surface contamination, incorrect AC balance, or moisture in the filler rod. Proper cleaning and setup usually resolve it.
