This guide breaks down fuel gas types, pipe materials, sizing methods, and the welding requirements that keep these systems code-compliant. It's written for engineers, facility managers, and procurement teams specifying or upgrading gas piping for industrial, energy, or research applications.
Key Takeaways
- Follow NFPA 54, the International Fuel Gas Code, and local amendments on every design
- Match pipe material, sizing, and valves to gas type, pressure, and application
- Specify code-qualified welders and documented procedures for steel and specialty alloys
- Prevent most gas incidents with disciplined purging, venting, and capping
What Is a Fuel Gas Piping System?
Fuel gas piping is the network of pipes, valves, and fittings that carries combustible gases, such as natural gas, propane, butane, and hydrogen blends, from a source to burner-tip equipment.
Facility owners need to separate two parts of the system:
- Utility distribution piping — owned and maintained by the gas utility, running up to the point of delivery
- Building/on-site piping — the facility's responsibility, starting at the meter or regulator outlet
According to the NFPA 54 first-revision draft, the point of delivery for natural gas is generally the outlet of the service meter or regulator; for undiluted LP gas, it's the outlet of the final pressure regulator. Everything downstream falls under building fuel-gas provisions.
Common industrial applications include:
- Boilers and steam generation
- Backup and prime power generators
- Industrial furnaces and process heating
- Fuel cell systems
- Research and test equipment
Two model codes govern most US installations: the National Fuel Gas Code (NFPA 54) and the International Fuel Gas Code (IFGC). NFPA 54 sets maximum point-of-delivery pressures of 125 psi for natural gas and 50 psi for LP gas. Many local jurisdictions adopt the IFGC with amendments.
Always verify what your Authority Having Jurisdiction has adopted before finalizing a design.
Types of Fuel Gases and Their Properties
Not all fuel gases behave the same way, and that difference drives pipe sizing, material choice, and installation rules.

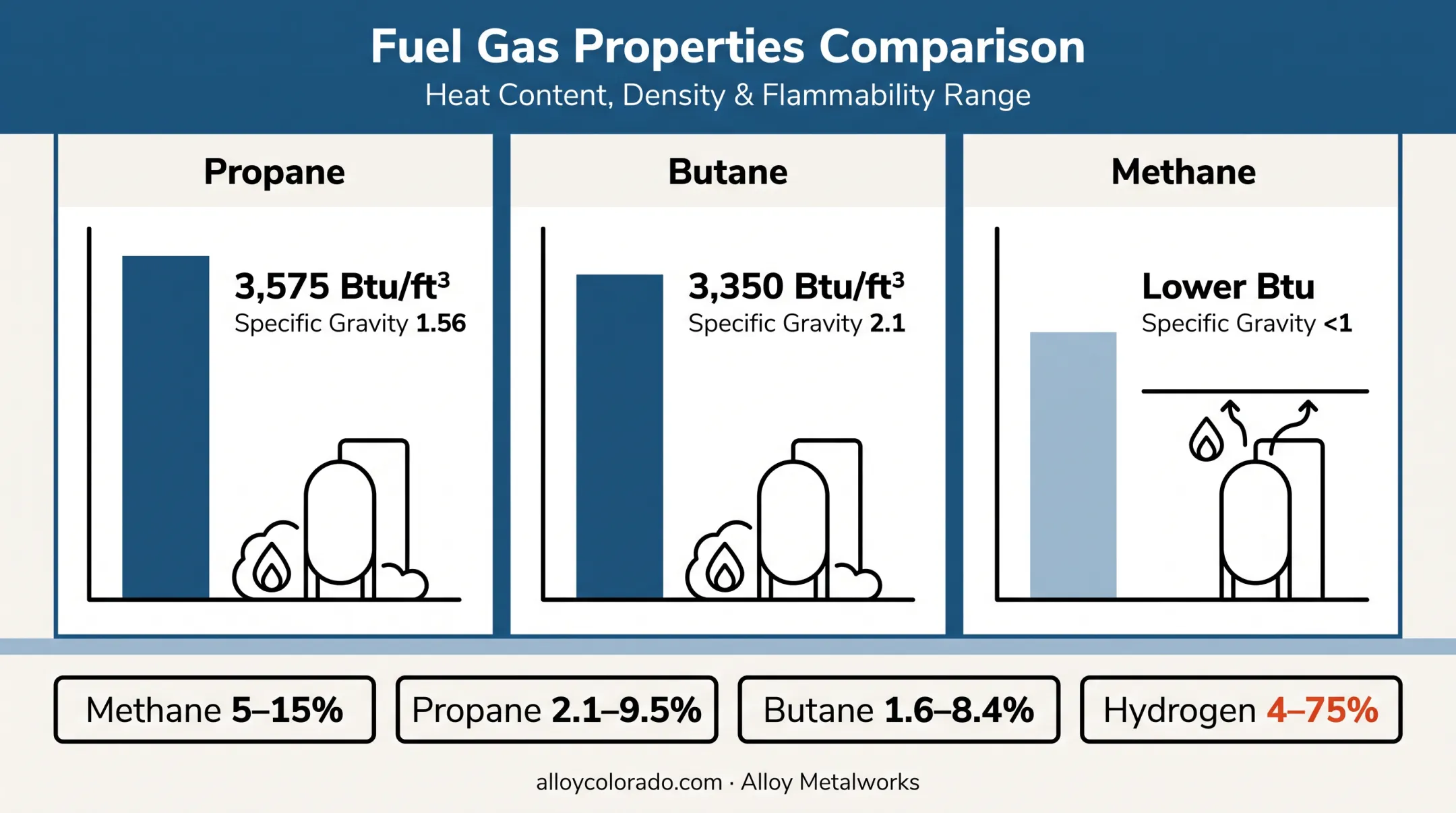

Heat Content and Density
Historical NIST data puts typical heat content and density in clear contrast:
| Gas | Heat content (Btu/ft³) | Specific gravity (air = 1) |
|---|---|---|
| Propane | ~3,575 | 1.56 |
| Butane | ~3,350 | 2.1 |
| Methane (primary component of natural gas) | Lower than LPG; varies by source | < 1 (lighter than air) |
Heavier-than-air gases like propane and butane pool in low spots. That is why codes restrict them from basements and below-grade spaces where leaked gas cannot disperse.
Flammability Ranges
Each gas has a distinct flammable range in air:
- Methane: 5% to 15% (LEL to UEL)
- Propane: 2.1% to 9.5%
- Butane: 1.6% to 8.4%
- Hydrogen: 4% to 75%
Per DOE H2Tools data, hydrogen's flammability window is far wider than hydrocarbon fuels. That range demands tighter leak-detection and ventilation controls in any facility that handles it.
Hydrogen Blending
Hydrogen blending into existing natural-gas infrastructure is gaining traction as a decarbonization strategy. A 2023 DOE/ORNL review found that blends up to 17% hydrogen may be compatible with existing pipeline materials, though it also flagged unresolved questions around polymer seals, elastomers, and pipeline impurities.
Hydrogen's lower Btu content per cubic foot means burners and pipe sizing may need adjustment to hold equivalent heat output.
What Type of Pipe Is Used for Fuel Gas Piping?
Material selection depends on pressure, gas composition, and whether the run is indoor, outdoor, or underground.
Black Steel and Carbon Steel
Black steel remains the standard for industrial and high-pressure gas systems. The IFGC permits steel, stainless steel, and wrought-iron pipe no lighter than Schedule 10, referencing ASME B36.10M and ASTM A53/A106/A312 standards. It handles heat, pressure, and mechanical stress better than most alternatives, which is why it dominates boiler rooms and process-heating applications.
Corrugated Stainless Steel Tubing (CSST)
CSST offers flexibility that rigid pipe can't match, speeding up installation in tight spaces. However:
- It must be listed and installed per its manufacturer's instructions
- Arc-resistant jacketed CSST (ANSI LC1/CSA 6.26) needs proper bonding against lightning-induced arc punctures
- It's generally not suited for outdoor or underground exposure without added protection
Polyethylene (PE) and HDPE Pipe
For underground gas distribution, PE and HDPE pipe resist corrosion in ways steel can't. Heat-fusion joining creates continuous, leak-resistant runs. The IFGC caps plastic gas pipe at 100 psig for natural gas and 30 psig for LP gas, and it's restricted to outdoor underground use only, never inside or under a building.

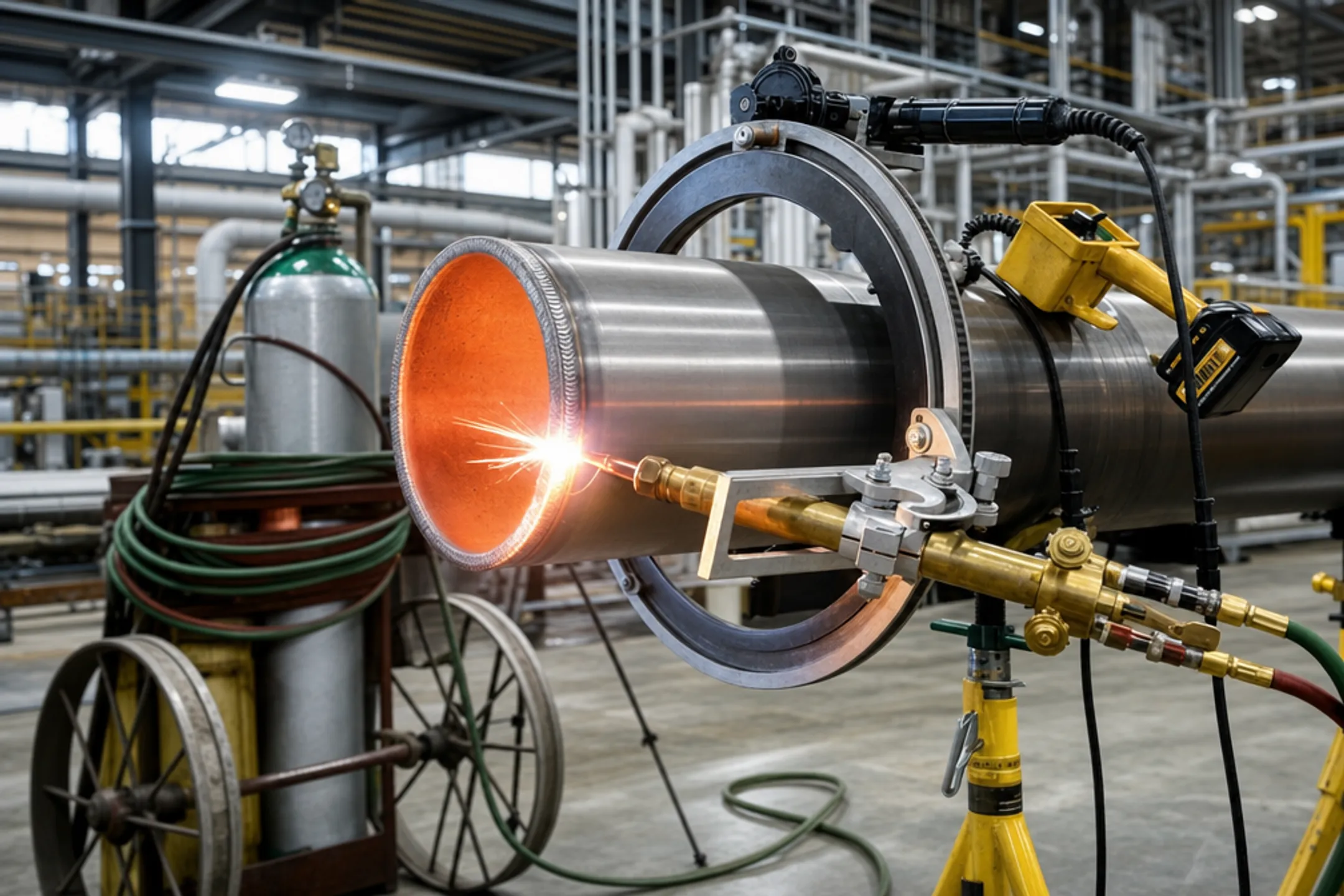

Specialty Alloy Piping
Corrosive gases, high-purity service, or extreme temperatures push projects past standard carbon steel. Common upgrades include:
- Stainless steel for corrosion resistance and cleaner gas streams
- Inconel and Hastelloy for hydrogen, aerospace, and chemical process duty
- Other nickel-based alloys when heat, contaminants, or purity limits rule out carbon steel
In those environments, ASME B31.3 (process piping) and ASME B31.12 (hydrogen piping and pipelines) often govern instead of standard building fuel-gas code—especially for research and energy-sector clients.
Alloy Metalworks welds that specialty piping under ASME Section IX and AWS D1.1, including nickel-based superalloys, Hastelloy, and Incoloy 800HT. We've built process piping and fluid transport systems for energy clients such as National Renewable Energy Laboratory and Utility Global, where gas purity and weld integrity are non-negotiable.
Copper caveat: the IFGC prohibits copper and copper-alloy pipe when gas contains more than 0.3 grains of hydrogen sulfide per 100 standard ft³. Confirm local utility rules before specifying copper on any gas line.
Fuel Gas Pressure Classifications and Pipe Sizing
Gas pressure is measured in psi, inches of water column, or ounces, depending on where you are in the system. Utility mains typically deliver at higher pressure, then step down through regulators before reaching point-of-use equipment. Operating pressure class—and the run to the farthest outlet—drives how that piping must be sized under the IFGC.

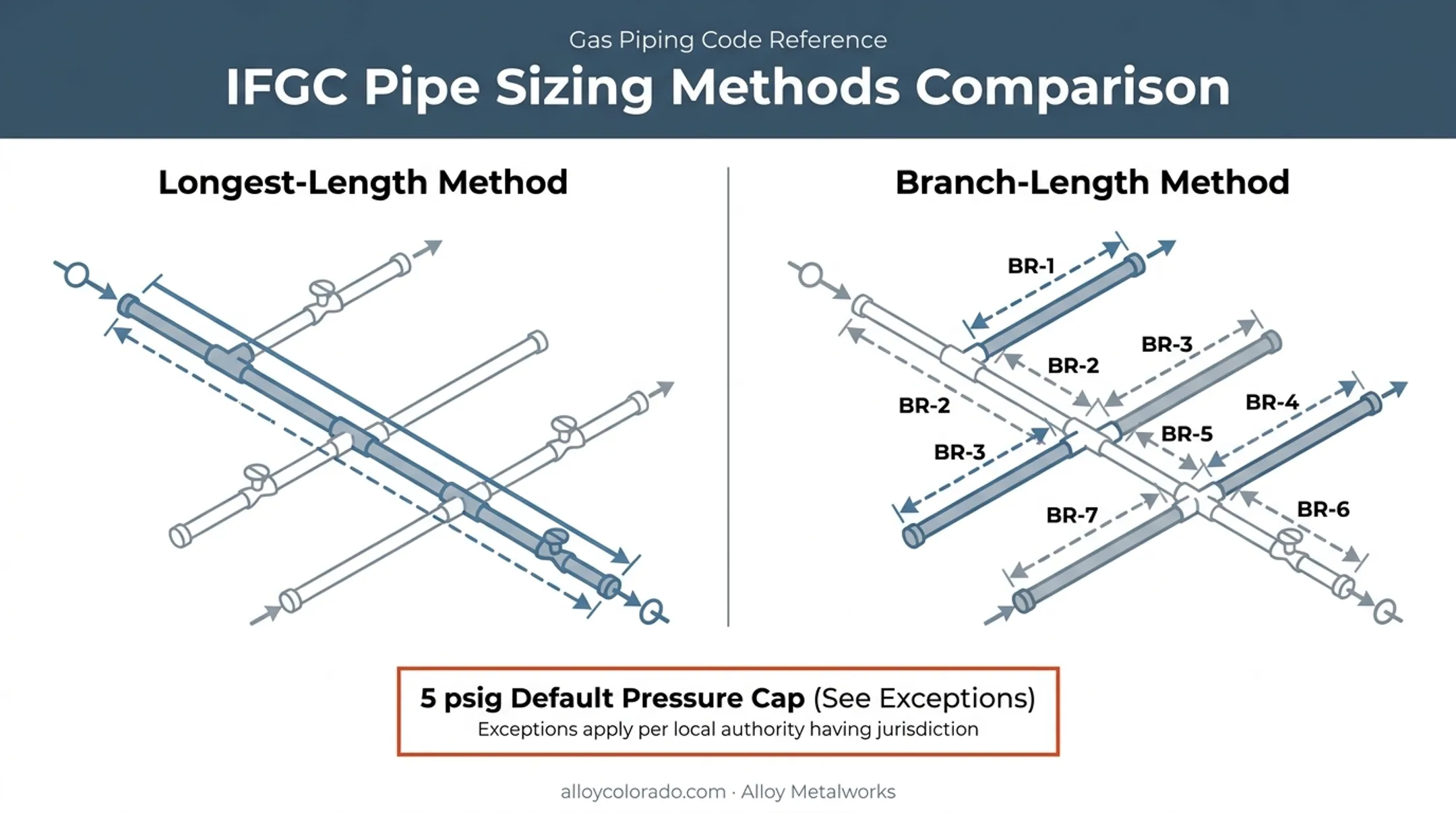

Sizing Methods
The IFGC recognizes two primary approaches:
- Longest-length method — sizes each pipe section based on the longest run from the point of delivery to the most remote outlet
- Branch-length method — sizes branches using the length from the point of delivery to the most remote outlet in each specific branch
Higher-pressure systems use a two-step approach: size piping along the longest run to the most remote line-pressure regulator, then size downstream piping separately from that regulator to the final outlet.
Industrial and High-Demand Applications
The IFGC default caps operating pressure inside buildings at 5 psig. But there are exceptions for:
- Welded or brazed joint systems
- Industrial processing or heating spaces
- Research spaces and boiler/mechanical rooms
- Qualifying LP systems
Anything designed above 5 psig must meet specific exception criteria for materials, joints, equipment, and testing. This isn't a simple upgrade decision. It calls for engineering review and, in most jurisdictions, documented justification tied to the applicable code exception.
Installation Best Practices and Common Failure Points
Good design means nothing if installation cuts corners. A few areas cause a disproportionate share of problems:
Below-Grade Installation
Minimum cover for underground gas piping is 12 inches, with shallower exceptions (8 inches) for individual lines to approved outdoor fixtures like grills or lights. Below-grade lines demand corrosion protection: factory electrical insulation or cathodic protection. Zinc coating alone doesn't meet code.
Valve Selection
Rated ball valves have largely replaced legacy lubricated plug valves in modern installations. ASME B16.44 covers manually operated metallic gas valves for aboveground piping rated up to 5 psi and 32°F–125°F service temperature, while NFPA 54 references ASME B16.33 valves rated up to 175 psi. Every appliance still needs a dedicated shutoff, dirt leg, and union for serviceability.
Purging Protocols and Odor Fade
Purging requirements kick in under the IFGC when design pressure exceeds 2 psig or when size/length thresholds are met. Inert gas displaces residual air or fuel. Vent outdoors with these clearances:
- At least 10 feet from ignition sources and building openings
- 25 feet from mechanical air intakes
Odor fade is a real risk in new piping. Per Florida Gas Association guidance, odorant can be lost through adsorption, absorption, and oxidation inside new pipe. That loss weakens the smell meant to warn people of a leak.
Purge medium is a separate failure point. The U.S. Chemical Safety Board investigated the 2010 Kleen Energy explosion, which killed six workers when a gas-piping purge vented indoors. CSB recommended against using natural gas for pipe cleaning or purging; compressed air is the safer alternative.
Any unconnected gas outlet must be capped or plugged. This sounds obvious, but it's one of the most common findings during commissioning inspections.
When Precision Welding and Fabrication Matter Most
Standard plumbing or HVAC contractors handle a lot of residential and light-commercial gas work well. But industrial, aerospace, and energy fuel gas systems often exceed that scope entirely, especially when the piping involves exotic alloys, high-purity requirements, or hydrogen service governed by ASME B31.12.
Why Documentation Matters as Much as the Weld
Documented weld procedures, material traceability, and ISO 9001-controlled processes do more than satisfy auditors. They prevent inspection delays and rework on complex gas piping projects. ASME Section IX sets the qualification rules for the welding procedures and welders used across other ASME code sections, including B31.3 process piping. We've seen firsthand what happens without this rigor. On one project, a previous contractor's welds failed inspection, and documentation for the welds, procedures, and welder qualifications simply didn't exist. Our team rebuilt the piping system on-site, ran in-house borescope and dye penetrant testing, and inspected the finished welds to ASME B31.3 standards before third-party inspection ever began.
Where Alloy Metalworks Fits
We fabricate piping and process systems for hydrogen energy, fuel cell, and industrial process clients requiring ASME Section IX certified welding. Utility Global, one of our energy-sector clients, specifically praised our welding on pipe, fittings, custom piping runs, Inconel, and stainless steel. That dissimilar-metal work trips up shops without proper procedure qualification. Engineering collaboration from design through fabrication matters most on custom gas skids and assemblies, where:
- Weld-joint design affects long-term reliability
- Heat-input and distortion control prevent warping on thin-wall specialty alloys
- Material-specific contamination risk mitigation protects high-purity gas streams
- Process validation confirms the procedure before full production begins If your facility is upgrading process piping or building out hydrogen infrastructure, a code-qualified fabrication partner reduces the risk of failed inspections and costly rework.
Frequently Asked Questions
What is fuel gas piping?
Fuel gas piping is the network of pipes, valves, and fittings that delivers combustible gases like natural gas, propane, or hydrogen blends from a supply source to appliances. It's governed primarily by NFPA 54 and the International Fuel Gas Code.
What type of pipe is used for fuel gas piping?
Common materials include black/carbon steel, corrugated stainless steel tubing (CSST), and polyethylene (PE/HDPE) for underground runs. Stainless steel, Inconel, and Hastelloy are used for corrosive, high-purity, or extreme-temperature service, with selection based on pressure, gas type, and adopted code.
What codes govern fuel gas piping installation in the US?
The National Fuel Gas Code (NFPA 54) and the International Fuel Gas Code (IFGC) are the two primary model codes. Local jurisdictions frequently adopt these with amendments, so always check what your local Authority Having Jurisdiction enforces.
Can copper pipe be used for natural gas lines?
Some jurisdictions restrict copper piping when gas contains more than 0.3 grains of hydrogen sulfide per 100 standard ft³, per the IFGC. Installers should verify local utility and code rules before specifying copper.
Why is hydrogen blending becoming more common in fuel gas systems?
Hydrogen blending lowers the carbon intensity of natural-gas fuel streams as part of broader decarbonization efforts. Because hydrogen has lower Btu content per cubic foot, blended systems often need pipe sizing and burner adjustments to hold equivalent heat output.
How is fuel gas pipe properly sized for an industrial facility?
Sizing generally follows the longest-length or branch-length methods outlined in the IFGC, based on total connected load and pipe run distances. Industrial systems operating above 5 psig typically require engineering review to satisfy applicable code exceptions.
