The core problem: anodizing creates a non-conductive, high-melting-point oxide layer sitting right on top of the base metal. That mismatch causes arc instability, gummy weld puddles, and porosity if you don't handle it correctly.
This guide covers what anodizing actually does to the metal, how to prep the surface, which welding methods work best, mistakes that ruin welds, and when it's worth bringing in a certified shop.
Key Takeaways
- Anodized oxide is non-conductive and melts around 3,600°F, far above aluminum's ~1,200°F melting point
- Removing the coating before welding is the most reliable way to get a clean, strong joint
- AC TIG (GTAW) is the preferred method; MIG works for thicker sections but with less control
- "Bumping" lets you weld over anodized coating without removal, but it takes real practice
- Flight-critical or code-compliant assemblies gain lower failure risk with a certified welding partner
What Is Anodized Aluminum and Why Is It Hard to Weld?
Anodizing is an electrochemical process. The aluminum part acts as the anode in an acid electrolyte bath, and oxygen ions form an aluminum-oxide layer chemically bonded into the metal, not a coating sitting on top.
A typical sulfuric anodizing setup runs 18-24 volts at around 70°F for 10-60 minutes, producing a layer between 0.1 and 1.0 mil thick.
That layer is the source of every welding headache that follows.
The Melting Point Mismatch
Aluminum oxide melts at roughly 3,600°F. The aluminum underneath melts at 1,100-1,260°F. That's a massive gap, and it means:
- The arc struggles to start and stay stable on the non-conductive oxide surface
- The oxide doesn't melt into the puddle; it sits there and creates a gummy, non-fluid pool
- Trapped moisture in the porous coating can flash to steam during welding, causing porosity
Alloy Series and Finish Types Matter
Not every aluminum alloy anodizes or welds the same way. 6xxx series alloys (like 6063) are preferred for anodizing. Some 2xxx and 4xxx alloys behave differently based on alloying content, which changes oxide porosity and corrosion resistance.

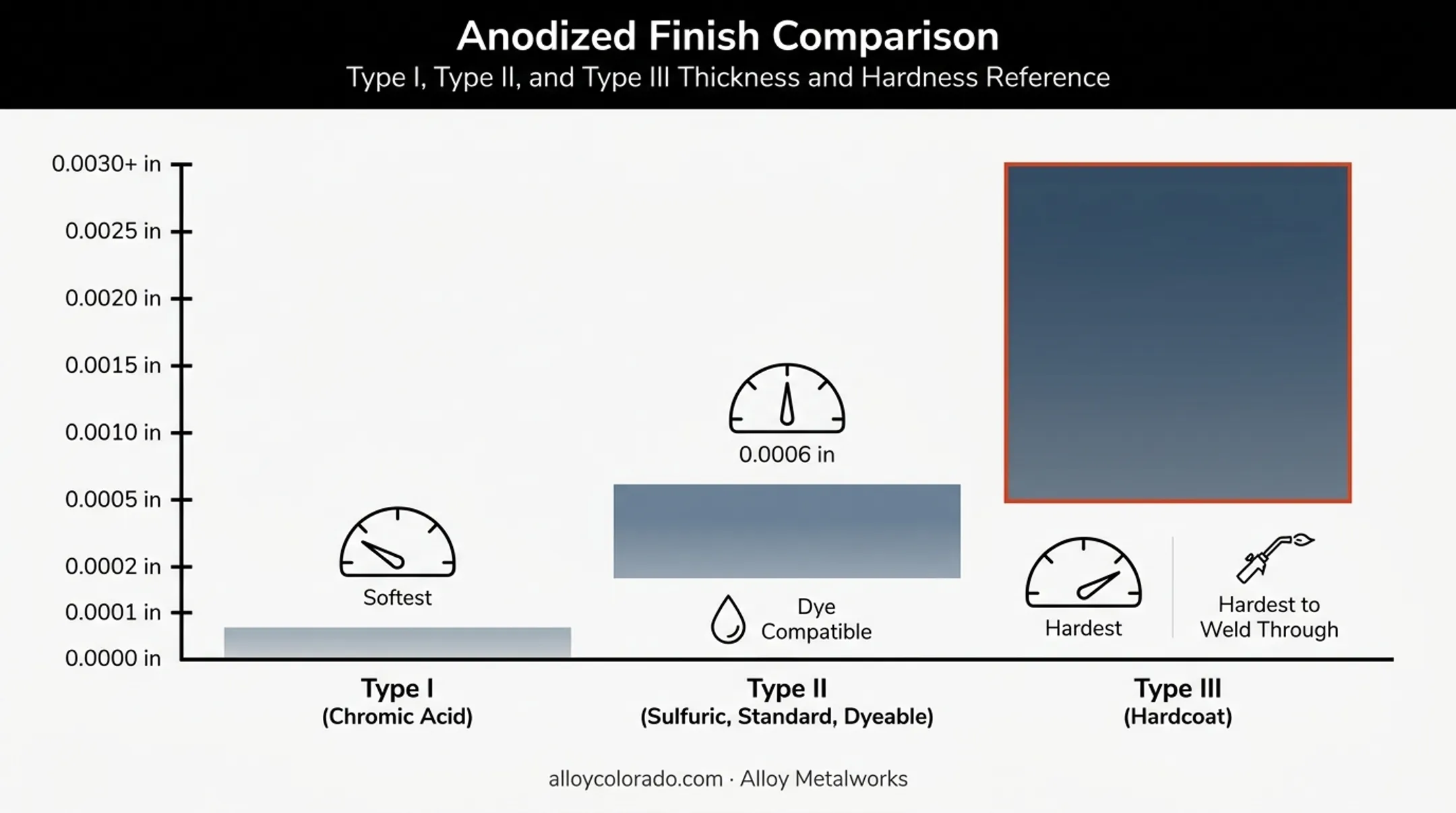

Anodized finishes also vary:
- Type I (chromic acid): thinnest, around 0.0001 in
- Type II (sulfuric, standard): 0.0002-0.0006 in, can be dyed
- Type III (hardcoat): 0.0005-0.0030+ in, denser and harder — the toughest to weld through
Anodizing has been an industrial process since the 1920s and is standard protection on aerospace hardware. That same durable oxide is exactly what makes these parts hard to weld without proper prep.

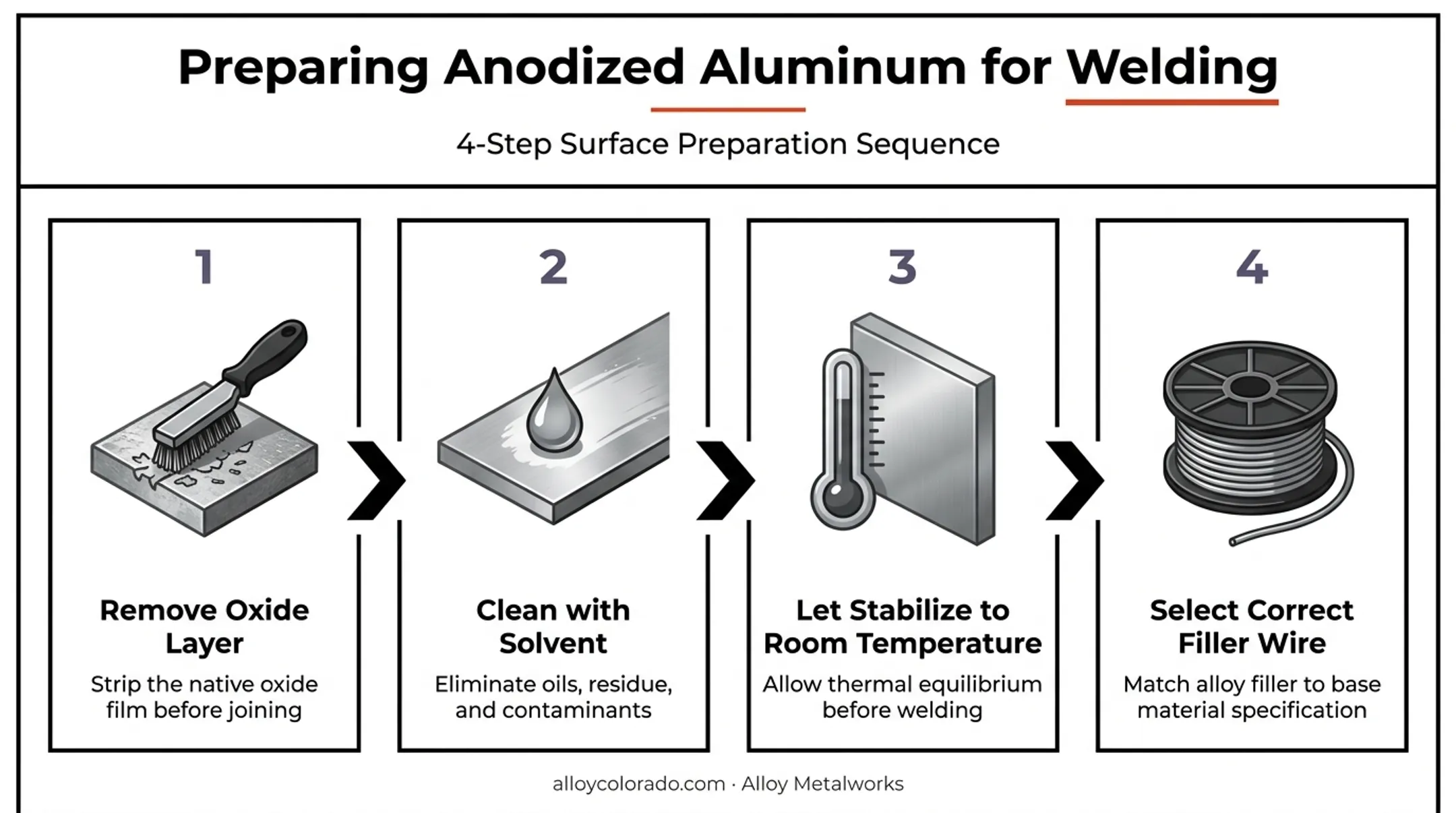

Preparing Anodized Aluminum for Welding
Getting the joint ready matters more than almost any other step in this process. Skip it, and no welding technique will save you.
- Remove the oxide layer. Use a stainless-steel wire brush dedicated to aluminum, or a sanding/grinding disc, for broad removal. For precise, localized removal at the joint, a chemical strip (such as a 5% sodium hydroxide solution followed by a nitric acid rinse) works well.
- Clean thoroughly. Wipe the joint with acetone or a similar solvent to strip oils, grease, and dirt. Do this after oxide removal, not before. Cleaning order matters.
- Let it stabilize. Give the material time to reach room temperature before welding to avoid condensation-related porosity.
- Pick the right filler. Match the wire to strength, crack resistance, and finish goals:
- ER4043: Flows smoothly and resists cracking (can turn smutty black after re-anodizing)
- ER5356: Higher strength, better corrosion resistance, and a closer color match on 6xxx alloys after re-anodizing
When project sequencing allows, weld the assembly first and anodize afterward. That route sidesteps oxide removal entirely and is often preferred for finished production parts.
Best Welding Methods and Techniques for Anodized Aluminum
TIG (GTAW) Welding — The Preferred Method
AC TIG is the standard for anodized aluminum because it does two things at once: the electrode-positive half of the cycle removes surface oxides, while electrode-negative melts and fuses the base metal.
Key settings to dial in:
- Rare-earth tungsten (2% ceriated or lanthanated) holds a focused arc better than pure tungsten on AC
- AC balance starts around 75% electrode-negative. Cleaner parts may tolerate 80% EN; dirtier or older material may need closer to 65% EN
- Visible peppering on the weld usually means you need more cleaning action: drop EN further or clean the joint more thoroughly

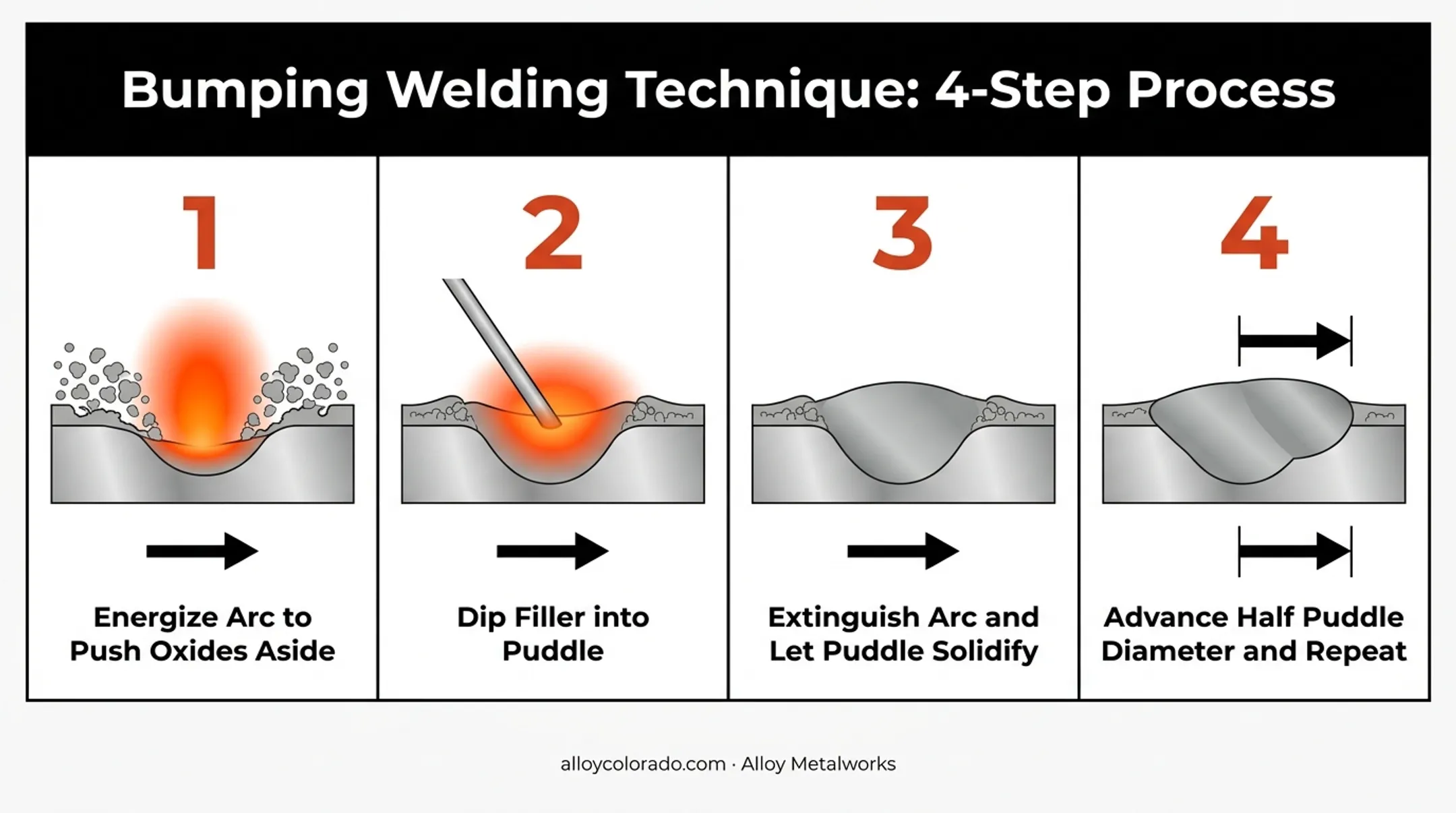

Bumping Technique for Welding Over Anodized Coatings
When removing the coating isn't practical, "bumping" lets you weld directly over it. The sequence:
- Briefly energize the arc to push oxides aside and form a puddle
- Dip filler into the puddle while the arc is live
- Extinguish the arc, letting the puddle solidify and oxide flow back over it
- Move forward roughly half the puddle diameter and repeat
Experienced operators run this at 180-230 amps, completing about one inch every 30-40 seconds. It's a difficult technique to master and is best run on an inverter-based machine with a foot pedal or fingertip control. Don't learn it on a production deadline.
MIG (GMAW) and Other Methods
When speed on thicker sections matters more than fine bead control, other processes enter the picture:

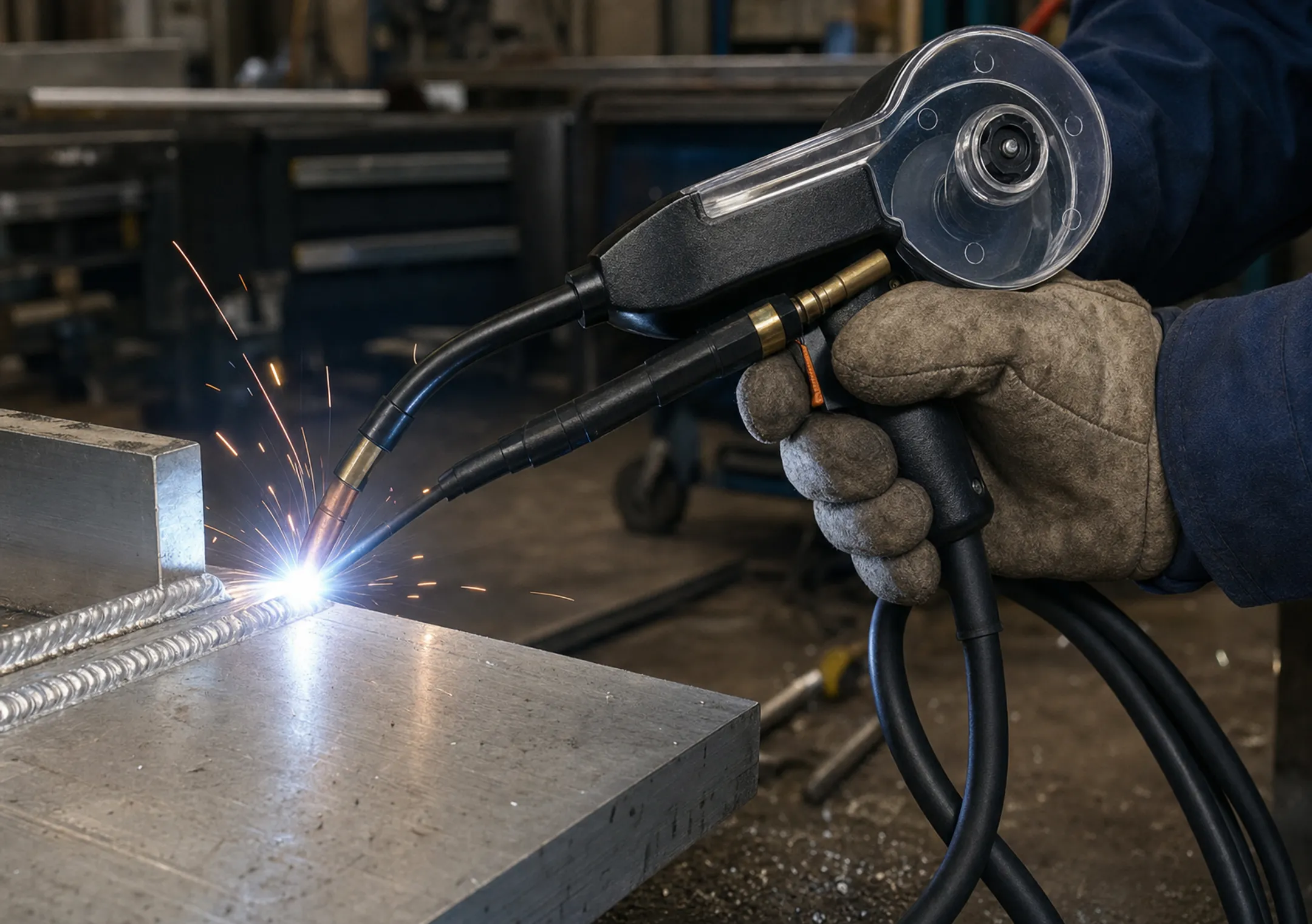

- MIG (GMAW): Handles thicker anodized sections faster than TIG. A spool gun feeds soft aluminum wire cleanly and avoids the bird-nesting common with long push-only guns. Expect less precision than TIG, so reserve MIG for structural thickness rather than fine architectural work.
- Stick (SMAW): Poor fit here. Flux and electrode handling raise contamination risk on aluminum.
- Laser: Useful as a complementary process, not a practical TIG replacement for most precision anodized-aluminum work.
Common Mistakes to Avoid When Welding Anodized Aluminum
- Welding directly over anodized coating without removal or without using bumping, causing arc instability and inconsistent fusion
- Skipping proper cleaning after oxide removal, letting oils and contaminants cause porosity
- Cross-contaminating your tools with carbon-steel discs, Scotch-Brite pads, or files that transfer embedded particles and trigger corrosion later
- Using the wrong filler or shielding gas for the base alloy, which affects both weld strength and post-anodize appearance
- Overheating the joint, which warps thin sections and can crack the weld as it cools
Working With a Certified Welding Partner for Critical Applications
For flight-critical, structural, or code-compliant aluminum assemblies, getting the technique even slightly wrong can compromise safety and fail inspection. This isn't a place to learn on the job.
Alloy Metalworks holds AWS D1.2 structural aluminum welding certification and ASME Section IX qualifications, alongside AWS D17.1 Class A for flight-critical hardware. That combination matters for aerospace, energy, and advanced manufacturing clients who need documented, inspection-ready welds — not just a clean-looking bead.
Bringing a certified provider into the design process early has a real payoff. They can help determine whether to weld before or after anodizing based on the application, avoiding rework and finish issues down the line.
Engineering collaboration typically covers:
- Weld procedure development
- Distortion control
- Contamination-risk mitigation
That early input tends to save far more time than it costs.
Frequently Asked Questions
Can you weld through anodized aluminum?
Welding directly through anodized coating is difficult but possible using specialized techniques like bumping. Removing the coating first is generally the more reliable path to a strong weld.
What aluminum cannot be welded?
Most aluminum alloys are weldable, but certain high-zinc 7xxx alloys and some heavily alloyed 2xxx alloys are prone to hot cracking and need alloy-specific procedures.
Can you weld aluminum with 75% argon and 25% CO2?
No. Pure argon or argon/helium blends are standard for aluminum welding, since CO2 mixes are associated with poor arc stability and oxidation issues on this metal.
What is the best filler rod for anodized aluminum?
ER5356 offers higher strength and better corrosion resistance with a closer color match after re-anodizing. ER4043 flows more smoothly and resists cracking, but it can turn smutty black once re-anodized.
Does anodizing weaken aluminum for welding?
Anodizing doesn't weaken the base metal's structural strength. The oxide layer complicates the welding process itself, not the underlying metal's integrity.
Can you restore the anodized finish after welding?
Yes. The welded area needs to be cleaned and re-anodized to restore both the protective and cosmetic qualities of the original finish.
