Nuclear welding sits where extreme engineering codes, exotic alloys, and zero-tolerance-for-error environments collide. There's no "close enough" when a pressure boundary fails.
This article covers the codes that govern nuclear welds, the materials that make this work unique, the processes used in the field, the safety realities welders face, and how to build (or hire for) a career in this specialty.
Key Takeaways
- Nuclear welding requires code-based qualification under ASME Section IX, beyond general welding skill
- Stainless steel, P91, and nickel alloys need precise heat control to prevent cracking and corrosion
- Documentation and traceability are mandatory inspection requirements from the first weld
- Code-qualified nuclear welders command strong wages as demand rises, with a high qualification bar
Why Welding Standards Are Non-Negotiable in Nuclear Facilities
Reactor vessels, primary piping, and heat exchangers operate under extreme pressure, extreme temperature, and constant radiation exposure. A weld failure here isn't a maintenance ticket. It's a potential safety event with regulatory, environmental, and human consequences.
That's why the ASME Boiler and Pressure Vessel Code (BPVC) Section IX governs how welders and welding procedures get qualified for this work. It defines the rules for qualifying procedures and personnel, and other BPVC sections (like Section III, which covers nuclear facility components specifically) point back to it. The NRC backs this up through 10 CFR 50.55a, which requires reactor-coolant pressure-boundary components to meet ASME Section III Class 1 requirements.

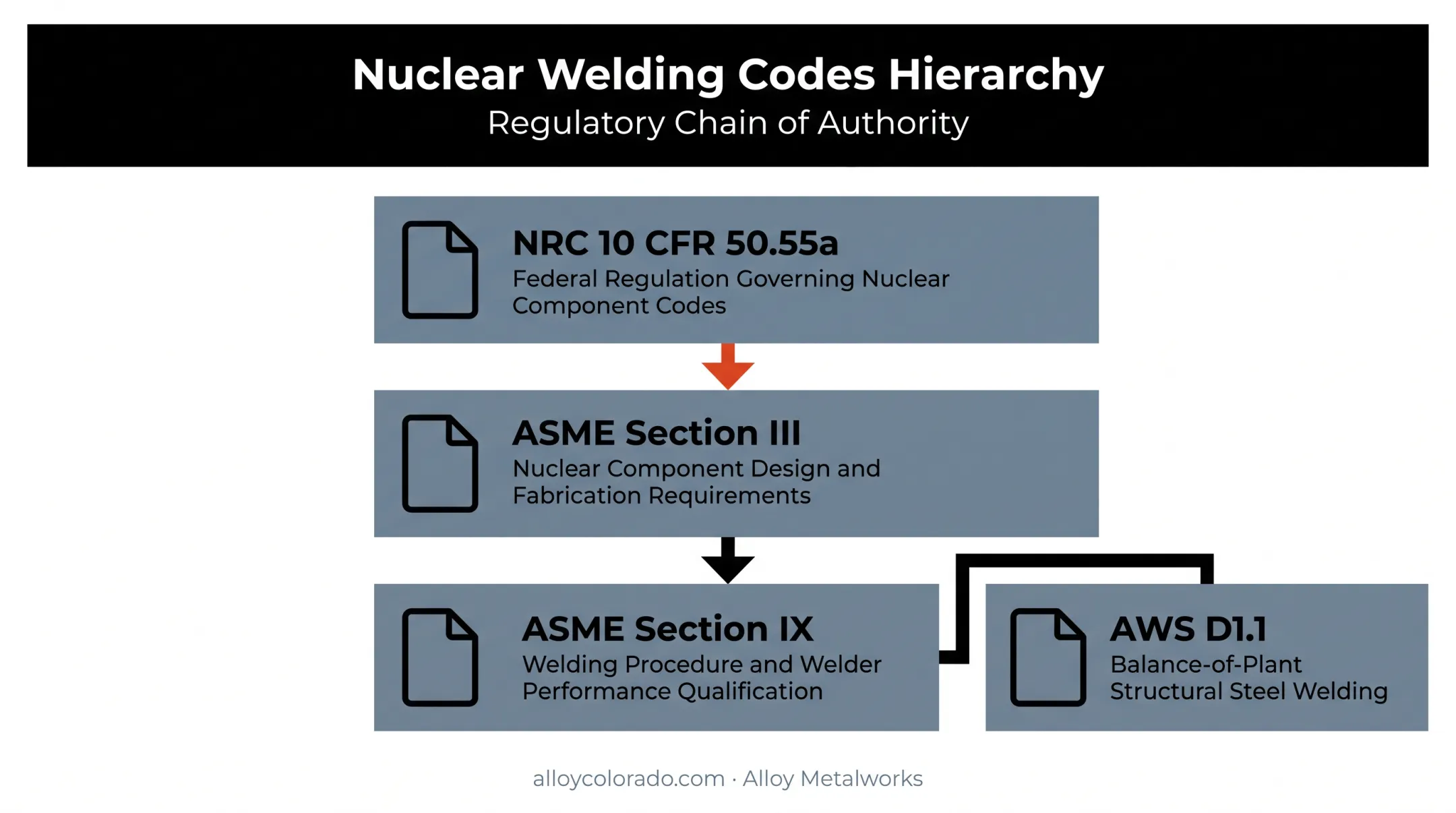

Key Codes and Certifications Governing Nuclear Welds
Nuclear fabrication draws on a stack of codes, each with a specific job:
- ASME Section IX – qualifies welding, brazing, and fusing procedures required by other BPVC sections
- ASME Section III – covers requirements for manufacturers, fabricators, and installers of nuclear facility components specifically
- AWS D1.1 – the structural steel welding code; useful for balance-of-plant structural work, though AWS itself does not present it as a nuclear code
Welder qualification testing and procedure qualification records (PQRs) are regulatory requirements, not optional paperwork. EPRI notes that qualification of welders used in nuclear plant construction, modification, and maintenance must hold up in an audit—every WPS and every welder's test record, not just a shop inspection.
This is where documentation discipline matters as much as the weld itself. At Alloy Metalworks, welding procedures are qualified to ASME Section IX under an ISO 9001-controlled process, with traceability built in from the start.
Audit-ready records, controlled procedures, and documented material traceability are what compliance-driven nuclear and high-performance energy fabrication demands.
One cautionary note from the field: a piping-system rebuild once had to be re-inspected to ASME B31.3 standards after the original contractor couldn't produce documentation for their welds, procedures, or welder qualifications. Without records, there is no proof the weld is trustworthy—appearance alone does not pass an audit.
Materials and Metallurgy: What Makes Nuclear Welding Unique
Stainless Steel and Corrosion Resistance
Stainless steels show up throughout reactor cores, secondary systems, and waste storage because they resist corrosion under high heat and pressure. NRC Regulatory Guide 1.85 lists specific stainless grades, including modified 304 and XM-19 austenitic stainless, as qualified materials for Section III construction.
Stainless steel only holds up when weld procedure and technique stay under control. Poor execution opens the door to four failure mechanisms:
- Pitting corrosion: localized breakdown of the protective oxide layer
- Crevice corrosion: attack in tight, low-oxygen gaps
- Stress-corrosion cracking (SCC): cracking from combined stress and a corrosive environment; EPRI research flags irradiation-assisted SCC as a nuclear-specific risk
- Microbiologically influenced corrosion (MIC): EPRI has documented elevated susceptibility across case histories at 15 nuclear facilities
P91 and Creep-Resistant Alloys
Corrosion resistance is only half the materials problem. High-pressure steam circuits often use chromium-molybdenum-vanadium alloys like Grade 91 (P91), prized for high-temperature strength and low thermal expansion. P91 is also notoriously cracking-prone during welding.

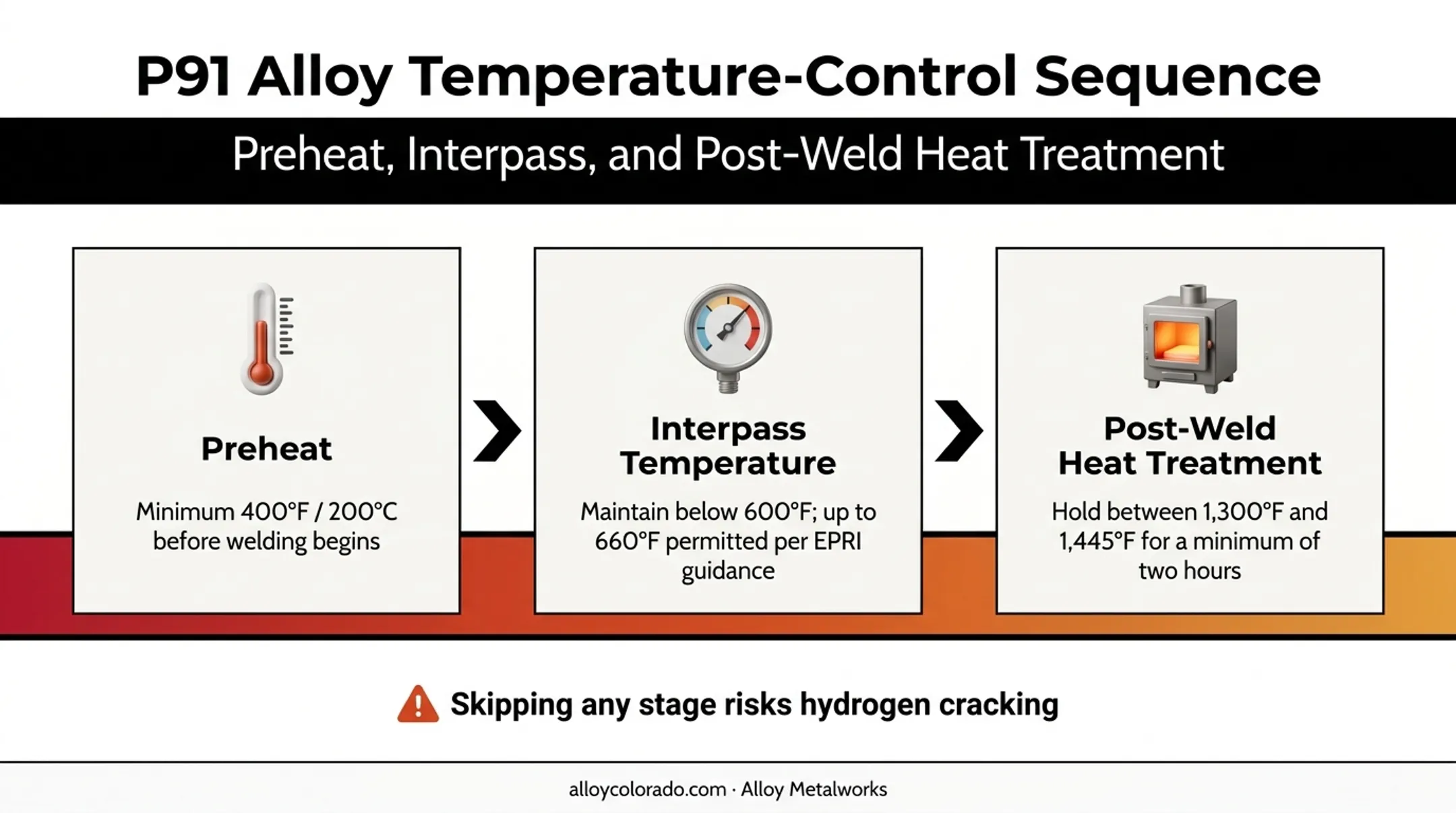

Industry guidance points to:
- Minimum preheat near 400°F (200°C) before striking an arc
- Interpass temperature control, typically capped near 600°F (EPRI allows up to 660°F)
- Post-weld heat treatment (PWHT) at 1,300–1,445°F, with a two-hour minimum hold for material 0.375 inches or thicker
Skip PWHT, or miss the temperature window, and you risk hydrogen-induced cracking that may not appear until the component is in service.
Purge Control and Heat Tint
Alloy choice and heat control still fail if the weld atmosphere is wrong. Inert-gas purging prevents oxygen contamination that causes heat tint, a discoloration that signals a compromised, less corrosion-resistant surface. On stainless and nickel-alloy work, controlling oxygen in the weld zone with purge monitoring equipment is mandatory. It is the difference between a weld that lasts decades and one that begins corroding immediately.
Alloy Metalworks builds custom inert-gas purge setups for precision welding on titanium, stainless, and other reactive alloys, because the atmosphere around the weld matters as much as the filler and procedure.
Common Welding Processes Used in Nuclear Power Plant Fabrication
Process choice tracks material, thickness, joint access, and how much variability the weld can tolerate:
- GTAW (TIG) – clean, precise welds on thin and reactive alloys; preferred for critical piping where contamination control is non-negotiable
- GMAW (MIG) – faster deposition on structural steel and production joints when speed outweighs ultra-fine control
- SMAW (stick) – versatile for field work and structural joints in less controlled environments
- Submerged arc welding (SAW) – high deposition on thick reactor vessel sections and long continuous seams
- Orbital welding – repeatable pipe and tube welds that cut human-error risk in critical systems
EPRI's 2025 research on nuclear welding frames mechanized welding as automation guided by a skilled welder who monitors and adjusts remotely. That hybrid of machine consistency and human judgment shows up on piping systems, reactor vessels, and valves.

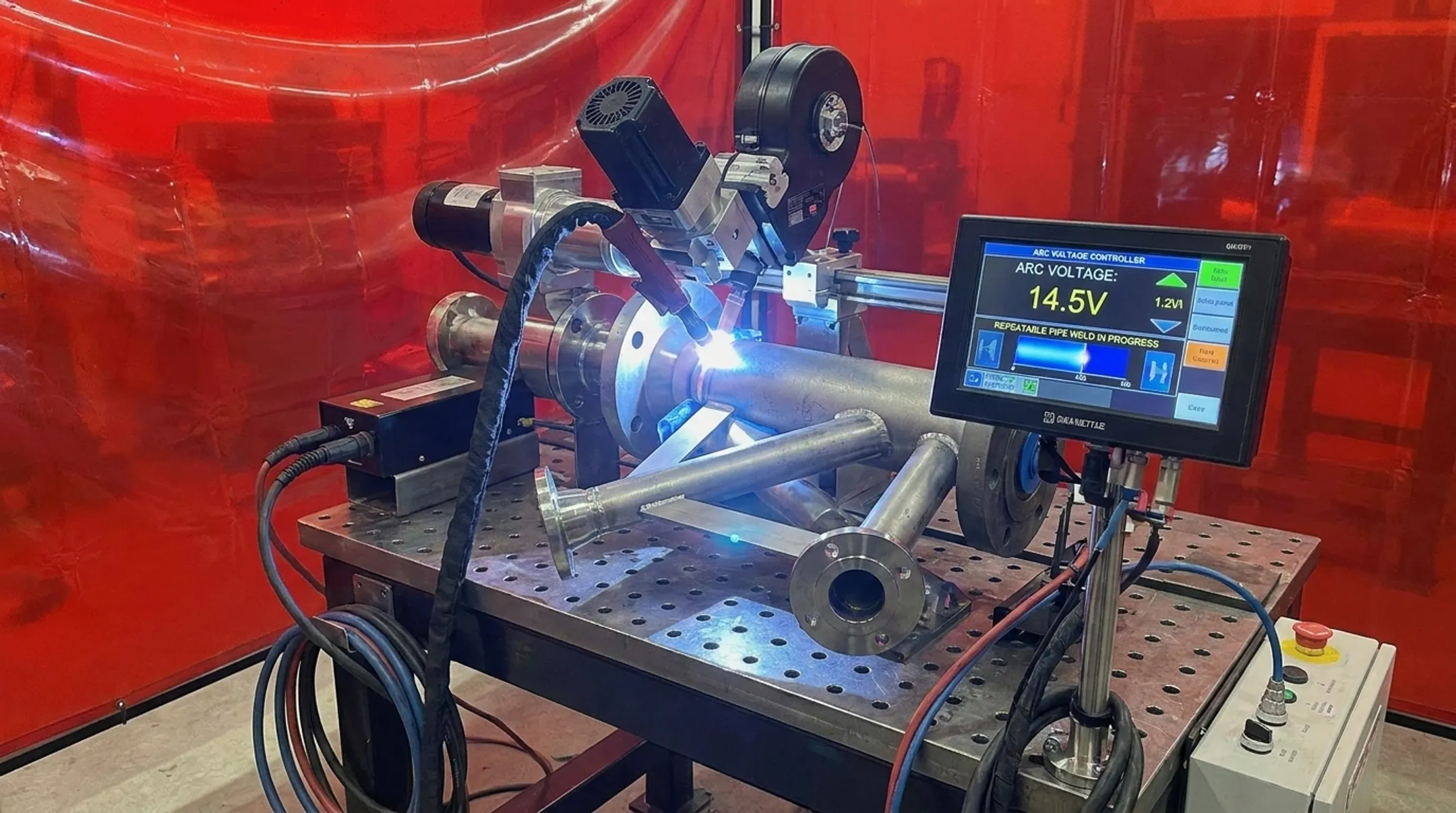

Alloy Metalworks builds that same consistency into production. The team engineered a custom orbital welding system for repeatable Inconel 617 welds, with an arc-voltage controller that holds torch height automatically for steady penetration. Nuclear fabrication runs on the same principle: remove variability wherever the process allows.
Safety, Work Environment, and Physical Demands
Nuclear welders work in conditions that go well beyond a typical fabrication shop:
- Confined spaces inside piping runs, containment structures, and vessel interiors
- High heat from both the welding process and the plant environment itself
- Radiation-monitoring protocols under 10 CFR Part 20, which requires licensees to track occupational exposure against strict limits
- Extended and irregular shift schedules, sometimes running 24/7 during outages
PPE requirements stack up in radiation-controlled zones beyond what fossil-fuel plants require. OSHA's general welding PPE standard (1910.252) already demands protective clothing suited to the hazard. Nuclear zones add more:
- Individual dosimeters and real-time exposure tracking
- Controlled entry and exit procedures
- Time-limited work windows tied to exposure budgets

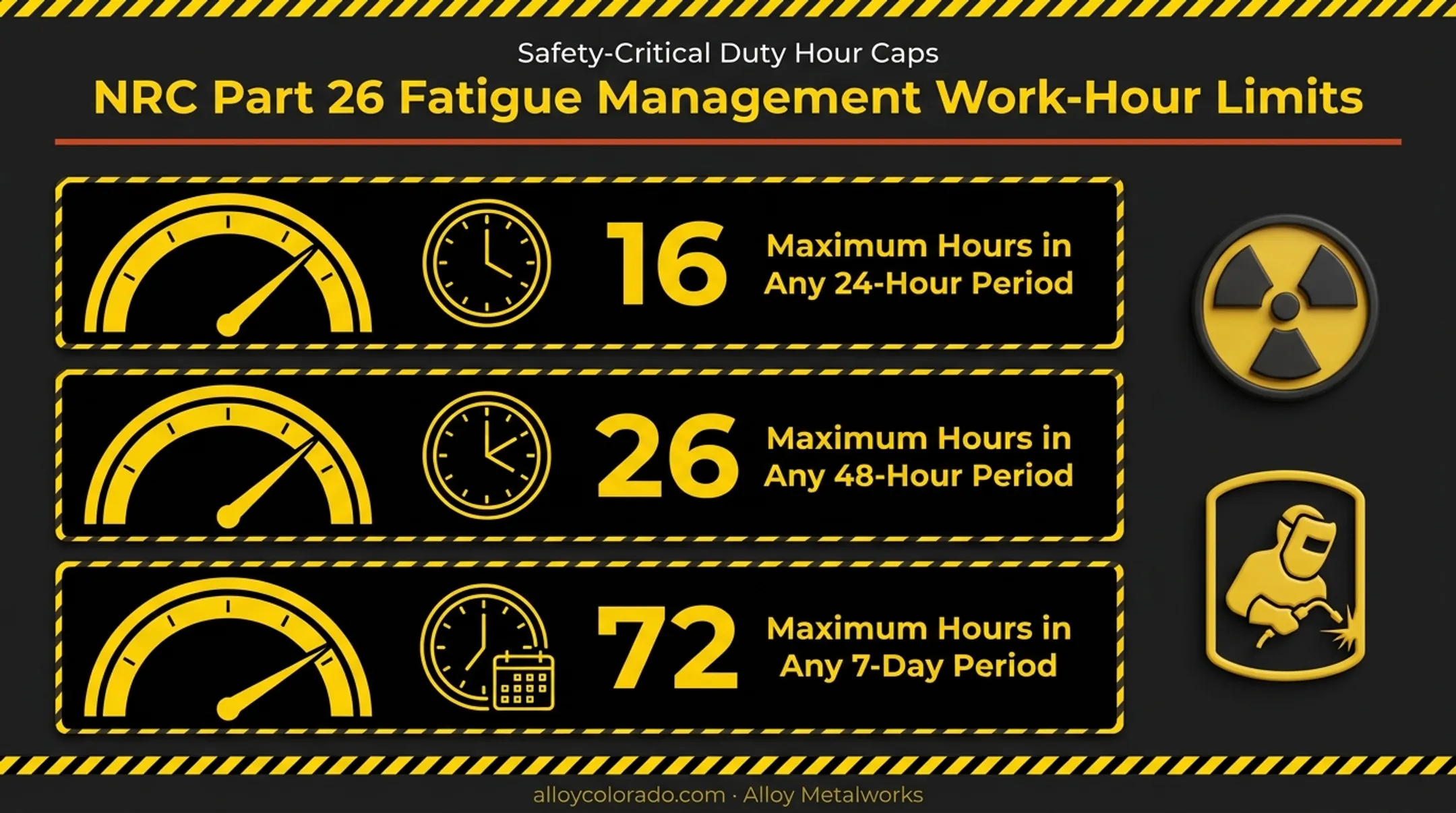

NRC fatigue-management rules under Part 26 also cap work hours for personnel performing certain safety-related duties: 16 hours in 24, 26 hours in 48, and 72 hours in 7 days. Confined-space welding under a strict clock, with radiation exposure tracked in real time, is a different job than field welding on a pipeline.
Building a Career in Nuclear/Power Plant Welding
Getting into nuclear-grade welding takes more than a welding school certificate. A typical path includes:
- Foundational AWS certification – hands-on performance testing at an accredited test facility, covering specific processes, positions, and materials
- ASME Section IX qualification – required separately for nuclear-project WPS work; an AWS Certified Welder credential doesn't automatically substitute for it
- Hands-on experience with exotic alloys – stainless steels, P91, nickel alloys, each with different cracking risks and heat-treatment demands
- Documentation literacy – understanding how PQRs, WPS records, and traceability logs support inspection readiness
The job outlook for welding overall shows steady demand: the Bureau of Labor Statistics projects 2% growth for welders, cutters, solderers, and brazers through 2034, with roughly 45,600 openings per year nationally. The American Welding Society estimates over 157,000 welding professionals nationally are approaching retirement, adding urgency to the pipeline. None of these figures are nuclear-specific, but they point to broad demand for code-qualified welders that nuclear projects compete for.
Welders trusted on safety-critical nuclear systems need more than a certification card. They need hands-on work with Inconel, Incoloy, Hastelloy, and other superalloys, comfort with inspection-ready documentation, and procedures that pass audit the first time.
That bar is what Alloy Metalworks Fabrication Lead Randy Zavala brings to complex builds. With 20-plus years in high-end fabrication and certifications to ASME Section IX and multiple AWS codes, he has worked reactor-adjacent materials such as Incoloy chemical systems.
Frequently Asked Questions
Is it hard to be a nuclear welder?
Yes. Nuclear welding demands rigorous certification, precision under strict codes like ASME Section IX, and comfort working in confined, high-heat, radiation-monitored environments. It's significantly more demanding than general structural or production welding.
What certifications do nuclear welders need?
Nuclear welders typically need ASME Section IX qualification for the specific procedures and materials they'll be welding, plus relevant AWS structural codes depending on the component. Employer-specific qualification programs often add further requirements.
Why is stainless steel used in nuclear power plants?
Stainless steel resists corrosion and holds up under the high heat and pressure found throughout reactor cores and secondary systems. Properly welded stainless steel maintains that resistance for decades of service.
What welding process is best for nuclear pipe welding?
GTAW (TIG) and orbital welding are preferred for critical nuclear piping because they deliver clean, precise, repeatable welds with minimal contamination risk, which is essential in pressure-boundary components.
How much do nuclear/power plant welders earn?
Broader welding industry benchmarks put the national median around $55,600 annually, or roughly $26.76/hour. Code-qualified nuclear welders typically earn above that average because of the specialized certification required.
What is the biggest risk in nuclear welding failures?
Improper heat treatment or inadequate shielding gas control can leave welds vulnerable to cracking or corrosion mechanisms like pitting, stress-corrosion cracking, and microbiologically influenced corrosion (MIC). In a pressure boundary, that vulnerability can lead to catastrophic failure over time.
